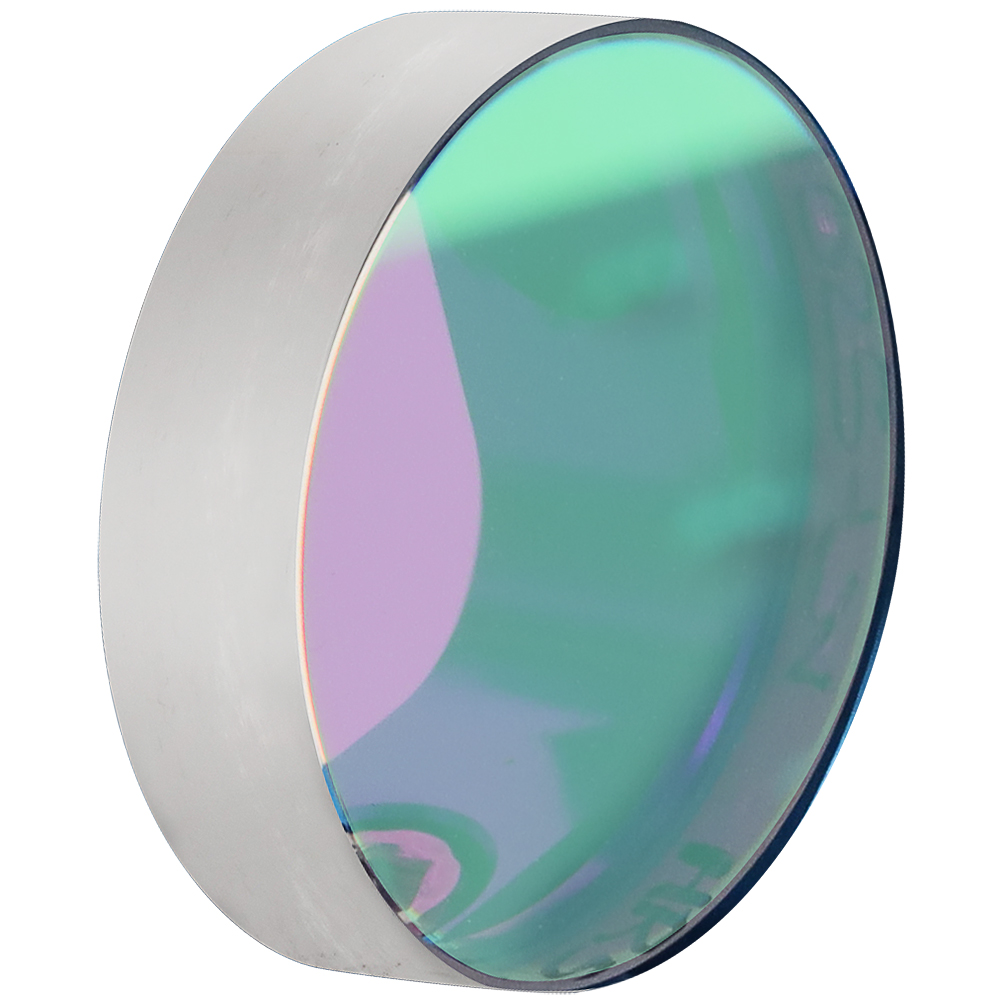

CVI Laser Y2: High Energy Nd YAG Laser Mirrors, 523-532nm
In Stock: 10


These anodized aluminum optic mounts fit round optics with 1" (25.4 mm) outer diameter. The mount has full exposure on the front face and a clear aperture of 0.95" (24.1 mm) for transparent optics. The inset is 0.25" (6.4 mm) from the front face but thicker optics may be mounted if they are allowed to protrude. The optic is held in place with a soft nylon tipped set screw which can be adjusted with a 5/64" standard hex key (Allen wrench). The mount is equipped with two 1/4"-80 fine adjustment screws which tip the optic in the x and y directions for easy alignment and beam steering. The mount has two mounting holes that fit 8-32 or M4 socket head cap screws. Each mounting hole is laterally centered on the optic mount, but is not centered on the optic face.

Condition: New



Product Number: S101129



Price: $275.00

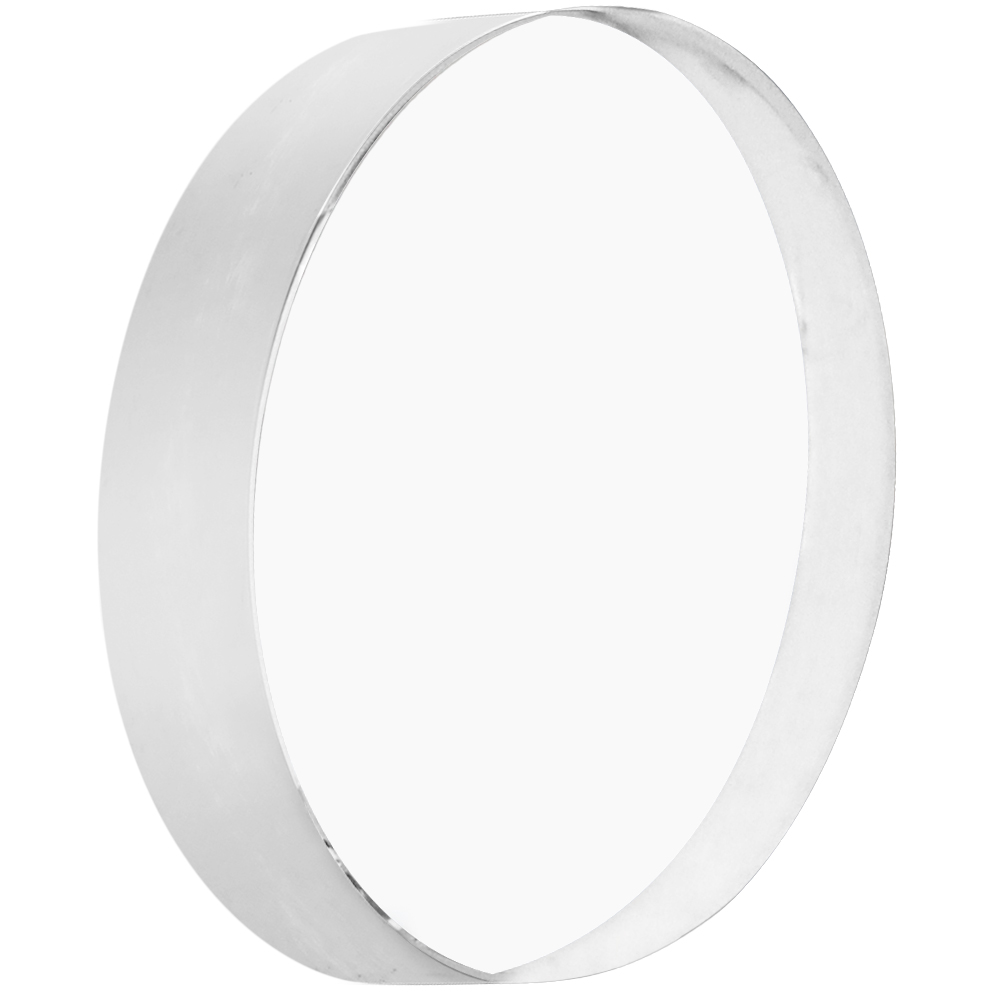

CVI Laser Y3: High Energy Nd YAG Laser Mirrors, 349-355nm
In Stock: 10


These anodized aluminum optic mounts fit round optics with 1" (25.4 mm) outer diameter. The mount has full exposure on the front face and a clear aperture of 0.95" (24.1 mm) for transparent optics. The inset is 0.25" (6.4 mm) from the front face but thicker optics may be mounted if they are allowed to protrude. The optic is held in place with a soft nylon tipped set screw which can be adjusted with a 5/64" standard hex key (Allen wrench). The mount is equipped with two 1/4"-80 fine adjustment screws which tip the optic in the x and y directions for easy alignment and beam steering. The mount has two mounting holes that fit 8-32 or M4 socket head cap screws. Each mounting hole is laterally centered on the optic mount, but is not centered on the optic face.

Condition: New



Product Number: S101130



Price: $275.00
