Condition:
  New
Part Number:
  P1010957
Warranty:
  Against Product Defect

Available Now:
11  

RoHS Compliance Sticker


$1,292.03


Print Version

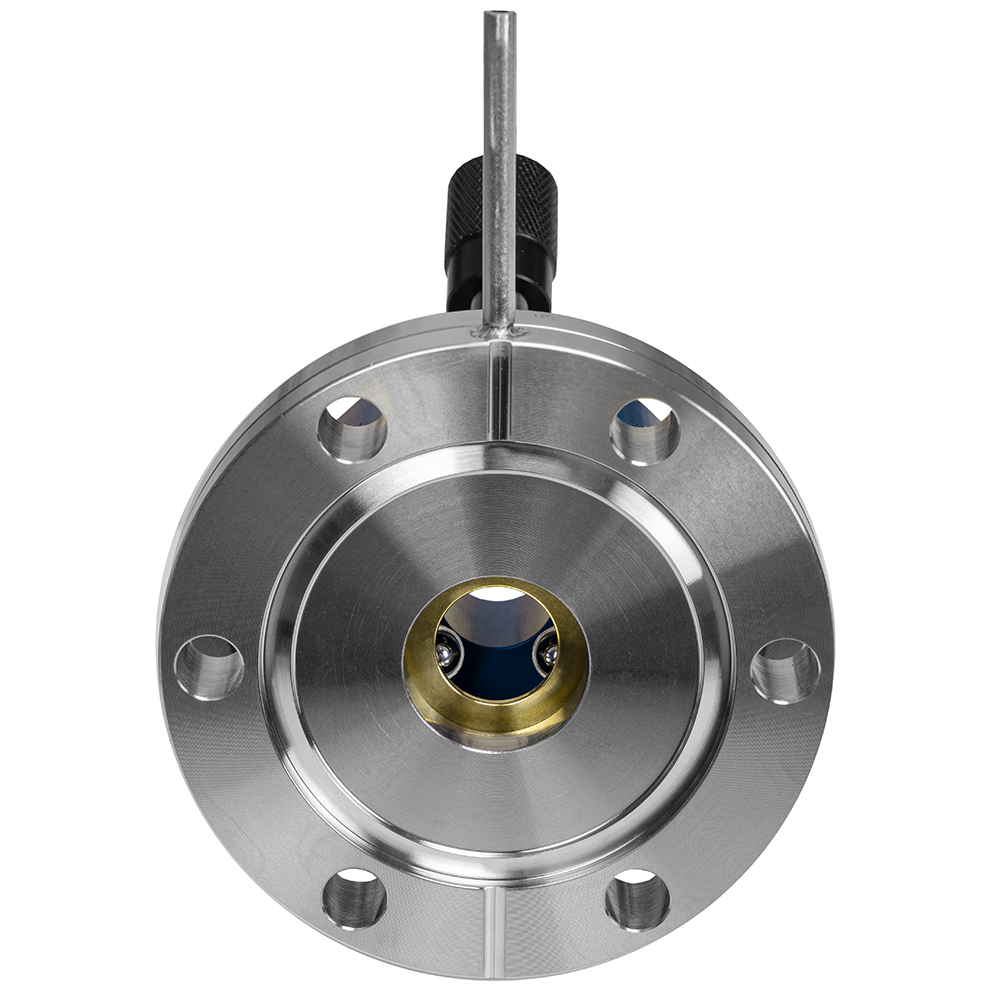

1.0 in. Purgeable, Adjustable Mirror Mount, Conflat (CF) 2.75 in. Flange, Stainless Steel


Adjustable Vacuum Optical Mirror Mount, With Purgeable Port, Conflat (CF) 2.75, Stainless Steel Optional Piezoelectric Fine Actuators Are Sold Separately (PZT)


These adjustable mirror mounts are designed for use in vacuum systems with a conflat 2.75 flange and can accept a 1.0" OD optic. The optic is held in place between a large diameter o-ring and a brass backing. The 3 adjusment knobs work against the brass backing, allowing for easy variation in the optic's angle without the need to break vacuum. The purgable version comes with a tube welded into the flange, allowing gas to be admitted directly to the optic situated in the mount. Optional mirror precision actuators are available, which allow absolute and precise control over the angle of your mounted optics. This is the Mount ONLY.


Press ESC to Close


PDF Logo RoHS Compliance Download

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

E-drawing LogoeDrawings Viewer For Windows
E-drawing LogoeDrawings Viewer For MAC.
