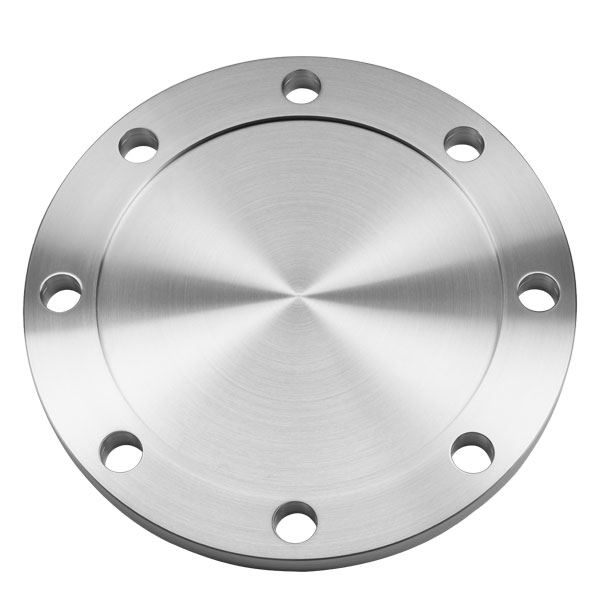

ASA 13.50 / ANSI 8 Blank Rotatable Flange, 13.5 in. OD, 11.75 in. BCD, Eight 0.81 in ID Bolt Holes, 304 Stainless Steel


ASA 13.50 / ANSI 8 Blank Rotatable Flange, 13.5 in. OD, 11.75 in. BCD, Eight 0.81 in ID Bolt Holes, 304 Stainless Steel.

These are ASA 13.50 / ANSI 8 blank rotatable flanges without O-ring groove. They are made of 304 stainless steel. These CNC lathe turned flanges have a two piece design and both sides of the flange are smooth. The center insert makes the vacuum seal when the rotatable bolt ring is tightened against a mating flange. They are often used to cover ASA/ANSI ports. ASA/ANSI flanges. Always mate an O-ring grooved flange with a smooth (non-grooved) flange to form a sealed connection with through-hole bolts, nuts, and washers.

Dimensions, in. (mm):
A = 13.50 in. (342.9)
B = 11.75 in. (298.5)
C = 0.75 in. (19)
D = 0.81 in. (20.6), 8 Holes
F = 10.34 in. (262.64)
G = 10.84 in. (275.34)

Other Specifications:
  • Made of 304 Stainless Steel
  • Has 8 Bolt Holes
  • Bolt Hole Diameter of 0.81 inches (20.6 mm)
  • Non-Grooved Flange
  • Rotatable Flange
  • Non-Bored Flange

ASA flanges are available with a smooth or grooved face, rotatable or non-rotatable, bored or non-bored, and are named for the outer diameter of the flange, from 4.25 to 19 inches. The ANSI name for the same flange size corresponds to the nominal tubing size that can be welded to it, and ranges from 1 to 12 inches in diameter.

ASA / ANSI flanges were originally used for steam pipes but have now been adapted to vacuum. Diffusion pumps, roots blowers, cryopumps and large rotary piston pumps are some examples of vacuum pumps where these flanges are used. When sealed together with O-rings made of Viton, Buna or Silicone, they are capable of achieving vacuum pressures as low as 1x10-8 Torr. We have a complete line of ASA flanges, O-rings, and bolt sets to fit your most demanding needs.



Press ESC to Close


ASA Blank Rotatable Flanges Dimensions Chart
PDF Logo RoHS Compliance Download

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

E-drawing LogoeDrawings Viewer For Windows
E-drawing LogoeDrawings Viewer For MAC.
