Abbess Thermal Vacuum Chamber, 3.3 Cubic Foot, Welded Aluminum Plates, 2 Inch Thick Acrylic Door

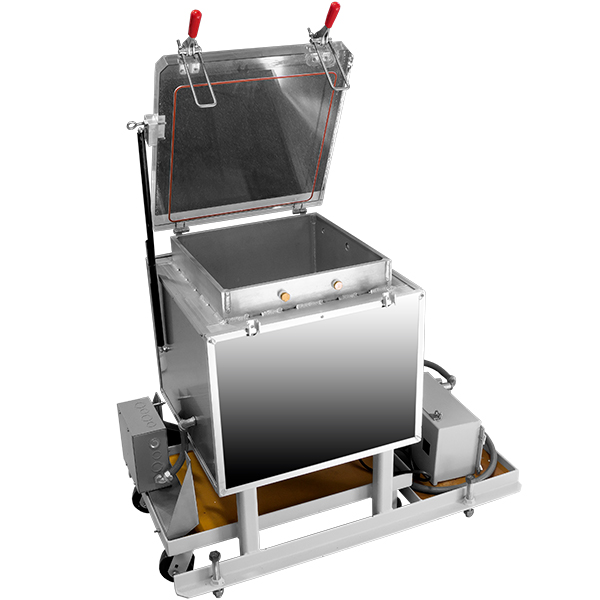

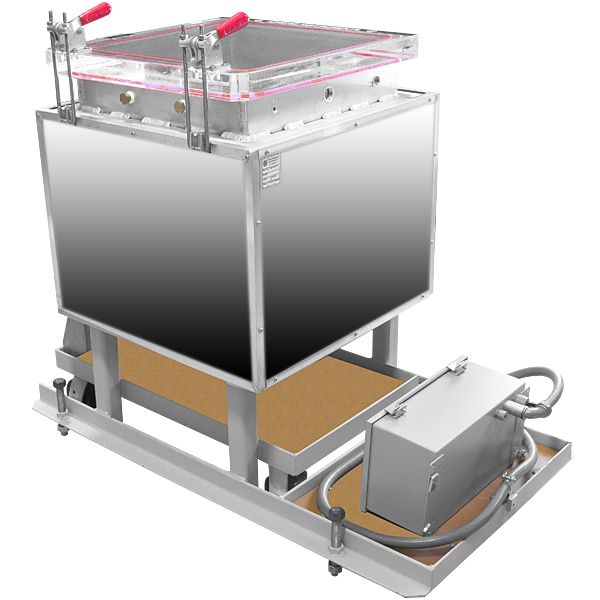

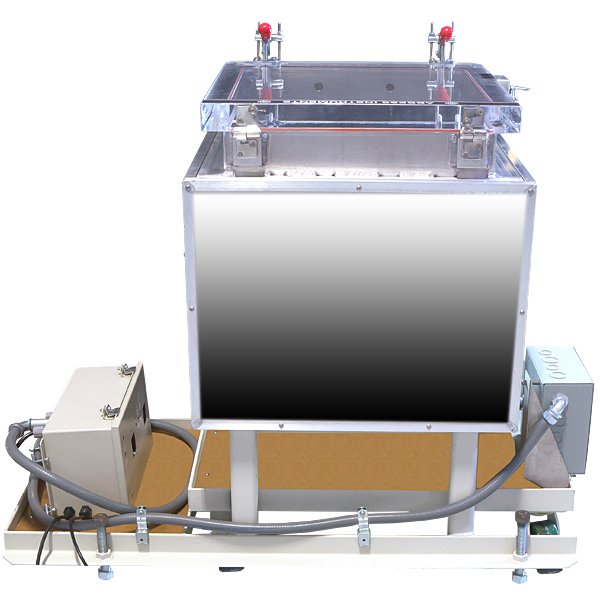

This refurbished Abbess thermal vacuum chamber includes a clear acrylic top lid that is hinged to the body of the chamber and sealed by a leak-tight O-ring. This chamber is mounted on a mobile frame with casters and levelers having a large 3.3 cubic foot internal volume (13x18x18 inch cube). It includes heating capabilities which are controlled by a pair of PID (Proportional with Integral and Derivative) temperature controllers mounted in process control enclosure. The temperature in the chamber can be controlled between room temperature and 100 C (212 F). A series of 1-inch female NPT vacuum or feedthrough ports are located on the side of the chamber near the lid. These ports can be used to supply electrical communication or power feedthroughs to meet the re-applications requirements, such as, 25 pin D-sub, BNC and SMA feedthroughs. With mechanical roughing vacuum pumps this thermal vacuum chamber can be used a pressured down to 0.1 Torr.

Our refurbishing process will include cleaning of the inside and out of the chamber, inspection of all the NPT pumping or feedthrough port, inspection and testing of the PID controllers, operation of the temperature control systems, followed by helium leak testing to ensure a leak-tight product. Our goal at Ideal Vacuum would be to resystemize this vacuum chamber for a new high-vacuum research application. We stock turbo pumps, pressure gauges by Granville-Phillips, fittings and bellows hose by MKS HPS, and all the roughing pumps (dry scroll, rotary vane, multi-roots) need to turn this into an amazing thermal vacuum chamber system. Many other custom sizes and varieties of vacuum chambers with pumps, pressure gauges, and connections are offered here at Ideal Vacuum Products. Please contact us at 505-872-0037.
