| ITEM |
DESCRIPTION |
PART NO. |
| 1 |
Standard Cold Cap Assembly - Includes 10-32 SST Rd Hd screw & 10-32 SST Hex nut |
84358301 |
| 1 |
Water-Cooled Halo Baffle |
K1855320 |
| 2 |
Cold Cap Water Connection:
| Cold Cap Gasket/Grommet (Kit of 4) | L8839301 |
| Cold Cap Nut & Followers Kit | L8840301 |
|
|
| 3 |
Jet Assembly |
84350301 |
| 4 |
Jet Coupling |
L6367301 |
| 5 |
Foreline Baffle Assembly |
84889301 |
| 6 |
Sight Glass Service Kit for Pumps Built Before 1995:
| 3 Glass Tubes | F1755008 |
| 2 Brass Union 1/4 OD x 1/4 MPT | 622568108 |
| 2 Brass Elbow 69FL 6x4, 169VL6-4 | 623451012 |
| 8 O-ring, Viton, Parker No. 2-011 | 660892011 |
| 8 O-ring, Viton, Parker No. 2-111 | 660892111 |
| 3 O-ring, Viton, Parker No. 2-221 | 660892221 |
| 3 O-ring, Viton, Parker No. 2-213 | 660892213 |
|
F6097301 |
| 6 |
Sight Glass Service Kit for Pumps Built After 1995 |
L9223001 |
| 6 |
Sight Glass Assembly for Pumps Built Before 1995:
| Seal Valve |
| Glass Tube |
| Removable Bracket |
| Cover for Sight Glass Assembly |
| Fittings |
|
F1755301 |
| 7 |
Threaded Plug, Fill & Drain |
77261001 |
| 8 |
Upper Thermal Switch, Temperature Setting 185°F |
K9050001 |
| 9 |
Lower Thermal Switch, Temperature Setting 390°F |
K9050002 |
| 10 |
Heater Nickel Wire 80 Inches, 14 AWG (2 per heater required) |
X3900-68006 |
| 10 |
Dalton Heater Wire 120 inches, 10 AWG (2 per heater required) |
X3900-68000 |
| 10b |
Heater Wiring Connection Box |
|
|
Nickel Lug for No. 14 AWG |
648056329 |
| 11 |
Heaters (six heaters required per pump)
| 200 V / 2000 watt Heater Element With Leads | 647320025 |
| 240 V or 415V / 2000 watt Heater Element With Leads | 647320020 |
240 V or 415V / 2000 watt Heater Element No Leads for pumps
built before May '90 | 647320060 |
| 400 V / 2000 watt Heater Element With Leads | 647320035 |
| 430 V / 2000 watt Heater Element With Leads | 647320040 |
| 440 V / 2000 watt Heater Element With Leads | 647320045 |
| 480 V / 2000 watt Heater Element With Leads | 647320030 |
480 V / 2000 watt Heater Element No Leads for pumps built
before May '90 | 647320070 |
|
|
| 12 |
Heater Crush Plate, replace with each heater |
K7108001 |
| 13 |
Heater Clamping Plate |
K7107001 |
| 14 |
Heaters Insulation, Cerablanket 0.50" Thick |
L6514001 |
| 15 |
Heater Cover Plate |
84497001 |
|
O-Ring Kit includes:
| 1 Butyl O-ring for ASA Inlet Flange | 84349002 |
| 1 O-ring for Foreline Flange | 660893432 |
| 8 Fill and Drain O-rings, Viton Parker 2-213 | 660892213 |
| 4 O-rings, Viton Parker 2-221 | 660892221 |
| 1 Sight Glass O-ring | 660892240 |
| 1 Graphite Sight glass Gasket | L9228001 |
|
K0377165 |
| 16 |
Butly Centering Ring for ASA Inlet Flange |
84349002 |
| 17 |
Centering Ring for ASA Foreline Flange |
660893432 |
| 17 |
Centering Ring for ISO Foreline Flange, 160K |
IC160SV |
|
Included with ASA pumps:
| 16 | One O-ring for ASA Inlet Flange | 84349002 |
| 17 | One O-ring for ASA Foreline Flange | 660893432 |

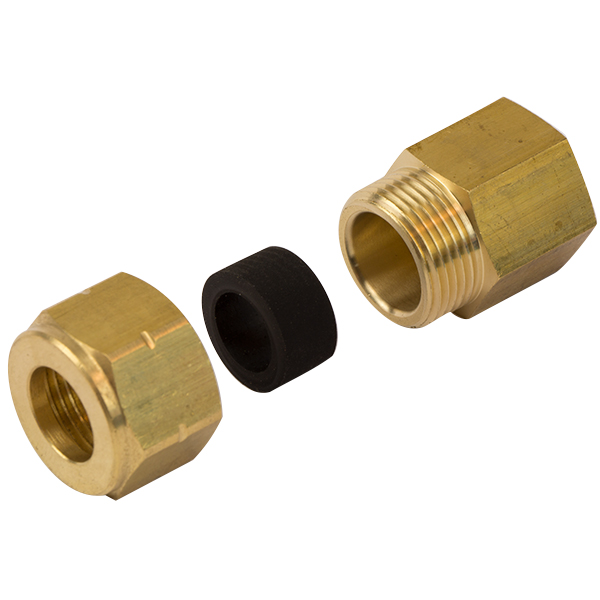

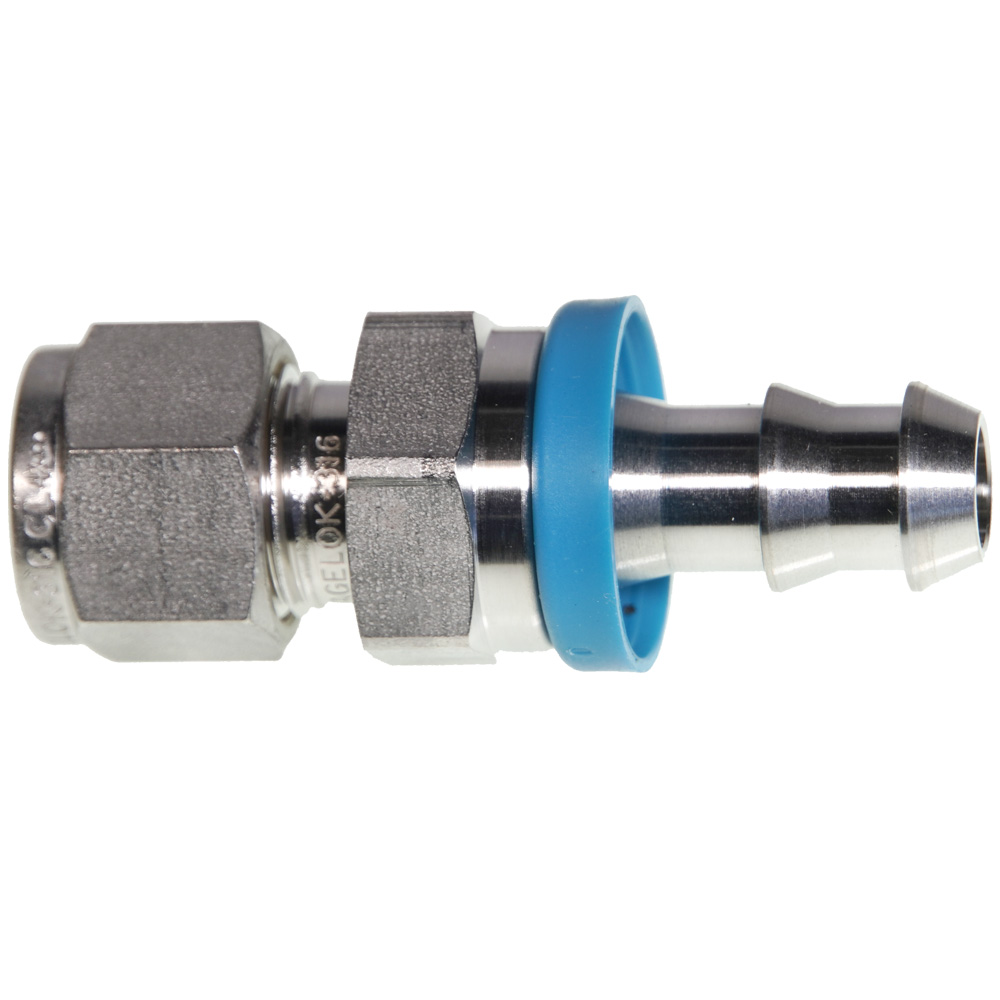

| 18 | Two Water Coupling for Cold Cap | 622445026 |
| Two 1/2" Hose 3/8 Pipe Barbed Connectors | 624301111 |
| Four 3/8" Hose 3/8 Pipe Barbed Connectors | 624301110 |
| Installation and Operation Manual | 699901140 |
|
|
|
DC-702 diffusion pump fluid, one gallon |
695472008 |
|
DC-704 diffusion pump fluid, one gallon |
695474008 |
|
DC-705 diffusion pump fluid, one gallon |
695475008 |
