Condition:
  New
Part Number:
  P107187
Warranty:
  Varian Warranty

Available Now:
1  



$1,240.63


Print Version

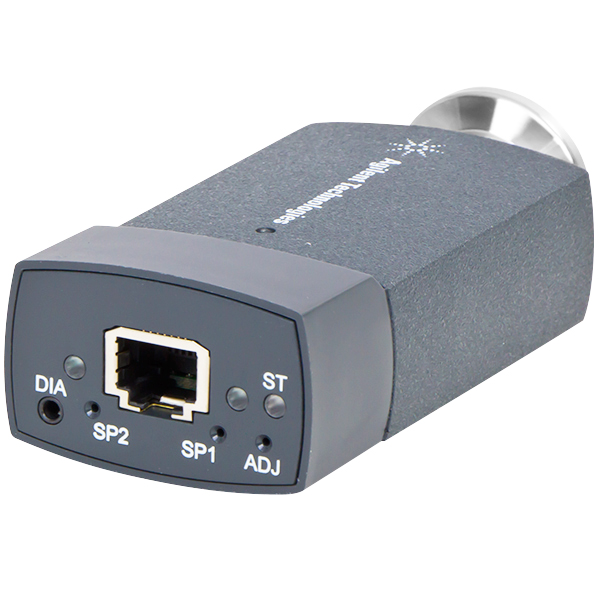

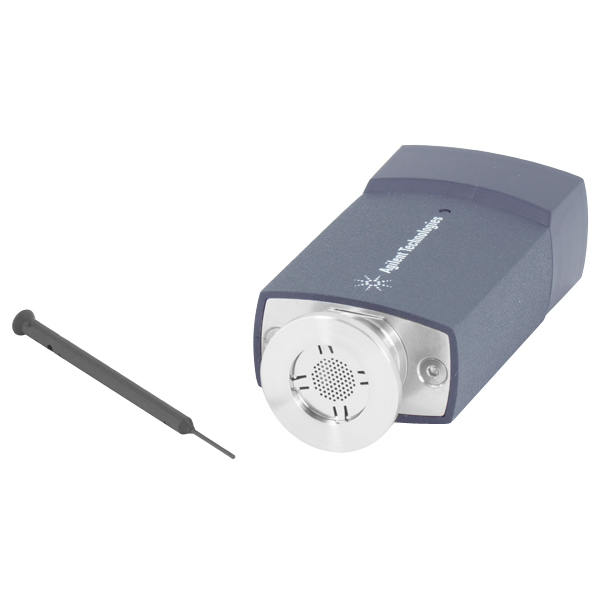

Agilent Varian PCG-750 KF16 Pirani Capacitance Diaphragm Gauge, set pts. Torr display, PCG750KF16SD2


Agilent Varian PCG-750 KF16 Pirani Capacitance Diaphragm Gauge With Single Tungsten Filament, with set points, (Torr) LED Display.
Pressure Range Atm to 3.8 X 10-5 Torr, KF16, Agilent Varian PN PCG750KF16SD2.

This Agilent Varian PCG-750 Pressure Gauge is a Pirani Capacitance Diaphragm with a single tungsten filament design. It has set points and a green and red LED display. The gauge can measure pressure from 3.8 X 10-5 Torr to atmosphere. This PCG gauge is a combination gauge consisting of a Pirani sensor and a diaphragm capacitive sensor. Both sensors are constantly active. At low pressures, only the signal of the Pirani sensor is used for pressure measurement; at high pressures, only the signal of the diaphragm capacitive sensor is used. To determine the output signal in the intermediate range, both signals are used proportionally to the pressure.

This is the PCG-750 pressure gauge only and has a KF-16 vacuum flange fitting. No Profibus. User replaceable tungsten sensor, signal cables and pressure controllers sold separately on this website. Agilent Varian Part Number PCG750KF16SD2. A complete Operating Instruction Manual and Spec Sheet is available for download in .pdf format below under AVAILABLE DOWNLOADS.

Compatible with Agilent Varian Pressure Gauge Controllers:
  • XGS-600 Multi-gauge Controller
  • Active Gauge Controllers AGC-100, AGD-100



Press ESC to Close


PDF Logo Agilent Varian PCG-750, PCG-752 Pirani Capacitance Diaphragm Gauges Data Sheet.pdf

PDF Logo Agilent PCG-750, PCG-752 Pirani Capacitance Diaphragm Gauge Operating Instructions.pdf
