Home > Fittings and Flanges > Conflat Fittings And Flanges > Bolt Sets, Tapped Holes > Bolt Kit For 10.00 In. Conflat Tapped Bolt Hole Flanges, Silver-Plated 12-Point Bolts With Washers

Condition:

New

Part Number:

P104411

Warranty:

Against Product Defect

Available Now: 197

RoHS Compliance Sticker

$105.01

Print Version

Bolt Kit For 10.00 In. Conflat Tapped Bolt Hole Flanges, Silver-Plated 12-Point Bolts With Washers

Bolt Kit For 10.00 (10) In. Conflat Tapped Bolt Hole Flanges, Silver-Plated 12-Point Head Bolts With Washers.

These bolt kits contain silver-plated 12-Point head bolts and washers to fasten tapped hole 10.00 (10) inch CF Conflat flanged fittings. These confalt flages can be pumped down to 10-13 torr (10-11 Pa) and can be heated to 450^oC for bake-out. North American flange sizes are given by flange outer diameter in inches: 1-1/3 ("mini conflat"), 2-1/8, 2-3/4, 4-1/2, 4-5/8, 6, 6-3/4, 8, 10, 12, 13-1/4, 14 and 16-1/2. In Europe and Asia, sizes are given by tube inner diameter in millimeters: DN16, DN40, DN63, DN100, DN160, DN200, DN250.

Complete Kit - 10.00 (10) inch Conflat Tapped Bolt Hole Fasteners:

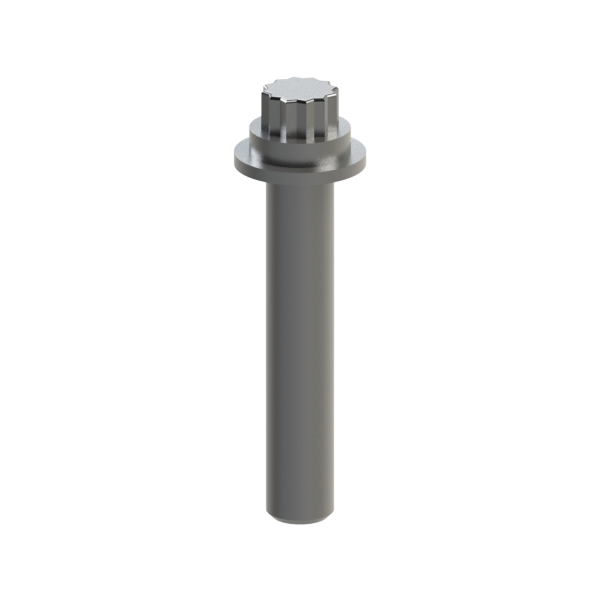

QTY 24, Silver-Plated 5/16-24 x 1.75 Inch Long 12-Point Head Bolts
QTY 24, Washers

Press ESC to Close

Availability Of Kit Components Kit: P104411 - Bolt Kit For 10.00 In. Conflat Tapped Bolt Hole Flanges, Silver-Plated 12-Point Bolts With Washers
Component	Desc.	Req'd	Avail
Non-Standard	No Component Description Available On Website	24	4730
P1013916	5/16-24 x 1.75 in. Silver Plated 12-Point Head, 5/16-24 Thread Size by 1.75 in. Long, 304 Stainless Steel, Sold Individually	24	10615

RoHS Compliance Download

P104411.sldprt

P104411.step

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

eDrawings Viewer For Windows
eDrawings Viewer For MAC.
