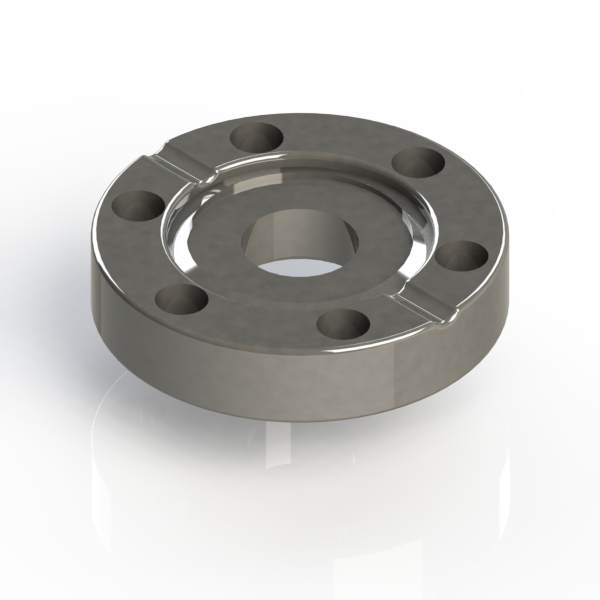

Bored Conflat Flange, CF 1-1/3 inch, Bored 1/2 in, 6 Through Holes, Non-Rotatable, 1.33 inches CF-F, Stainless Steel.
These are Bored Conflat Flange, CF 1-1/3 inch, Bored 1/2 in, Through Holes, Non-Rotatable, 1.33 inches CF-F, Stainless Steel. These flanges are used for ultra-high vacuum applications. These fittings use a copper gasket and knife-edge flanges to achieve the high vacuum seal and can operate down to 10-13 torr (10-11 Pa) and can be heated to 450 °C for bake-out. North American flange sizes are given by flange outer diameter in inches: 1-1/3 ("mini conflat"), 2¾, 4½, 6, 8, 10, 12, 13¼, 14 and 16½. In Europe and Asia, sizes are given by tube inner diameter in millimeters: DN16, DN40, DN63, DN100, DN160, DN200, DN250. These vacuum fittings are made of corrosive resistant stainless steel. Sold as ONE EACH.
Bored Conflat Flange, CF 1-1/3 inch, Bored 1/2 in, 6 Through Bolt Holes, Non-Rotatable, 1.33 inches CF-F, Stainless Steel
CF Flange Size: CF 1 1/3, 1.33 inch
Common Dimensions: Flange Size OD = 1 1/3"
(A)=1 1/3" (33.70mm)
(B)=1/2" (12.83mm)
(C)=NA
(D)=5/16" (7.60mm)
(E)=1 1/16" (27mm)
