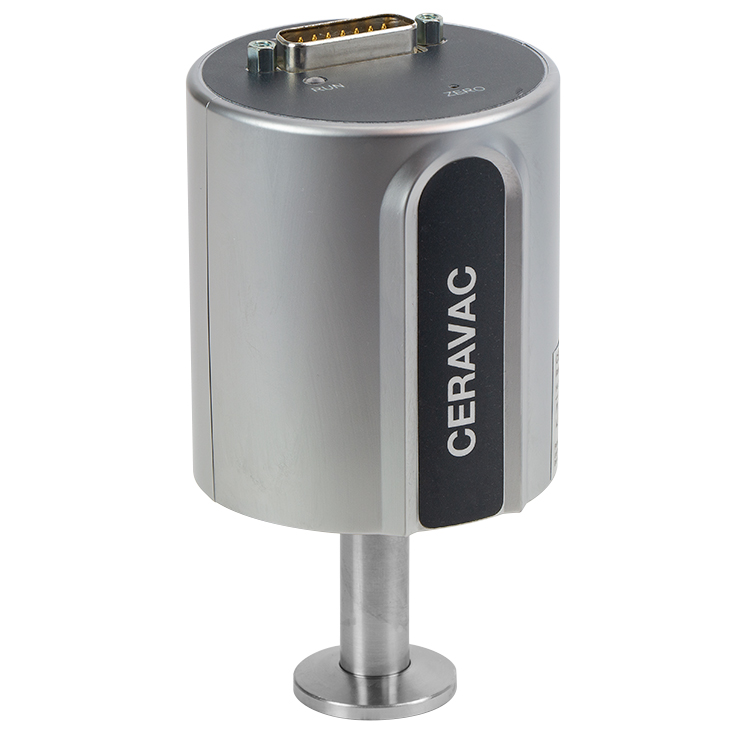

Leybold CERAVAC CTR 100 N Capacitance Diaphragm Gauge, DN 16 ISO-KF, 1000 Torr, Inconel Sensor, PN: 230300V02
In Stock: 1


NW-ISO 16, 1000 to 1 x 10 Torr, Leybold PN: 230300V02 This Leybold CERAVAC Transmitter CTR 100 N Sensor Gauge is designed for vacuum measurement in the pressure range of 1000 to 1x10 Torr (1300 to 1.3×10 mbar). The CERAVAC Transmitter CTR 100 N Sensor Gauge is operated with the Leybold Vacuum gauge controllers: GRAPHIX ONE, GRAPHIX TWO, and GRAPHIX THREE. The CTR 100 N allows gas type independent pressure measurements and is able to tolerate bursts of pressure without suffering physical damage or calibration shifts. The Inconel® sensor is suited for corrosive processes as it is highly resistant to corrosion from common process chemicals, oxidation, carburization, pitting, crevice, corrosion cracking and high temperatures. The CTR 100 N has an RS 232 connection with LED status indicators and can operate in any position. The CTR 100 N does not have setpoints and is not built for bakeout.

Condition: New



Product Number: P109791



Price: $2,512.40



Leybold CERAVAC CTR 100 N Capacitance Diaphragm Gauge, DN 16 ISO-KF, 100 Torr, Inconel Sensor, PN: 230301V02
Out of Stock


NW-ISO 16, 100 to 1 x 10 Torr, Leybold PN: 230301V02 This Leybold CERAVAC Transmitter CTR 100 N Sensor Gauge is designed for vacuum measurement in the pressure range of 100 to 1x10 Torr (130 to 1.3×10 mbar). The CERAVAC Transmitter CTR 100 N Sensor Gauge is operated with the Leybold Vacuum gauge controllers: GRAPHIX ONE, GRAPHIX TWO, and GRAPHIX THREE. The CTR 100 N allows gas type independent pressure measurements and is able to tolerate bursts of pressure without suffering physical damage or calibration shifts. The Inconel® sensor is suited for corrosive processes as it is highly resistant to corrosion from common process chemicals, oxidation, carburization, pitting, crevice, corrosion cracking and high temperatures. The CTR 100 N has an RS 232 connection with LED status indicators and can operate in any position. The CTR 100 N does not have setpoints and is not built for bakeout.

Condition: New



Product Number: P109792



Price: $2,305.60



Leybold CERAVAC CTR 100 Capacitance Diaphragm Gauge, DN 16 ISO-KF, 10 Torr, Inconel Sensor for Corrosive Processes. PN: 230302V01
In Stock: 1


This Leybold CERAVAC Transmitter CTR 100 sensor gauge is designed for vacuum measurement in the pressure range of 10 to 1x10 Torr (13 to 1.3×10 mbar). The CERAVAC Transmitter CTR 100 sensor gauge is operated with the Leybold Vacuum gauge controllers: GRAPHIX ONE, GRAPHIX TWO, and GRAPHIX THREE. The CTR 100 allows gas type independent pressure measurements and is able to tolerate bursts of pressure without suffering physical damage or calibration shifts. The Inconel® sensor is suited for corrosive processes as it is highly resistant to corrosion from common process chemicals, oxidation, carburization, pitting, crevice, corrosion cracking and high temperatures. The CTR 100 has an RS 232 connection with LED status indicators and can operate in any position. The CTR 100 does not have setpoints and is not built for bakeout.

Condition: New



Product Number: P109788



Price: $2,500.30



Leybold CERAVAC CTR 100 N Capacitance Diaphragm Gauge, DN 16 ISO-KF, 1 Torr, Inconel Sensor, PN: 230303V02
Out of Stock


NW-ISO 16, 1 to 1 x 10 Torr, Leybold PN: 230303V02 This Leybold CERAVAC Transmitter CTR 100 N Sensor Gauge is designed for vacuum measurement in the pressure range of 1 to 1x10 Torr (1.3 to 1.3×10 mbar). The CERAVAC Transmitter CTR 100 N Sensor Gauge is operated with the Leybold Vacuum gauge controllers: GRAPHIX ONE, GRAPHIX TWO, and GRAPHIX THREE. The CTR 100 N allows gas type independent pressure measurements and is able to tolerate bursts of pressure without suffering physical damage or calibration shifts. The Inconel® sensor is suited for corrosive processes as it is highly resistant to corrosion from common process chemicals, oxidation, carburization, pitting, crevice, corrosion cracking and high temperatures. The CTR 100 N has an RS 232 connection with LED status indicators and can operate in any position. The CTR 100 N does not have setpoints and is not built for bakeout.

Condition: New



Product Number: P109793



Price: $2,767.60



Leybold CERAVAC CTR 100 N Capacitance Diaphragm Gauge, CF 1.33, 1 Torr, Inconel Sensor, PN: 230303V02
Out of Stock


CF 1.33, 1 to 1 x 10 Torr, Leybold PN: 230303V02 This Leybold CERAVAC Transmitter CTR 100 N Sensor Gauge is designed for vacuum measurement in the pressure range of 1 to 1x10 Torr (1.3 to 1.3×10 mbar). The CERAVAC Transmitter CTR 100 N Sensor Gauge is operated with the Leybold Vacuum gauge controllers: GRAPHIX ONE, GRAPHIX TWO, and GRAPHIX THREE. The CTR 100 N allows gas type independent pressure measurements and is able to tolerate bursts of pressure without suffering physical damage or calibration shifts. The Inconel® sensor is suited for corrosive processes as it is highly resistant to corrosion from common process chemicals, oxidation, carburization, pitting, crevice, corrosion cracking and high temperatures. The CTR 100 N has an RS 232 connection with LED status indicators and can operate in any position. The CTR 100 N does not have setpoints and is not built for bakeout.

Condition: New



Product Number: P1011150



Price: $2,799.50



Leybold CERAVAC CTR 100 N Capacitance Diaphragm Gauge, DN 16 ISO-KF, 0.1 Torr, Inconel Sensor, PN: 230304V02
Out of Stock


NW-ISO 16, 0.1 to 1 x 10 Torr, Leybold PN: 230304V02 This Leybold CERAVAC Transmitter CTR 100 N Sensor Gauge is designed for vacuum measurement in the pressure range of 0.1 to 1x10 Torr (0.13 to 1.3×10 mbar). The CERAVAC Transmitter CTR 100 N Sensor Gauge is operated with the Leybold Vacuum gauge controllers: GRAPHIX ONE, GRAPHIX TWO, and GRAPHIX THREE. The CTR 100 N allows gas type independent pressure measurements and is able to tolerate bursts of pressure without suffering physical damage or calibration shifts. The Inconel® sensor is suited for corrosive processes as it is highly resistant to corrosion from common process chemicals, oxidation, carburization, pitting, crevice, corrosion cracking and high temperatures. The CTR 100 N has an RS 232 connection with LED status indicators and can operate in any position. The CTR 100 N does not have setpoints and is not built for bakeout.

Condition: New



Product Number: P109794



Price: $3,510.10
