Condition:
  New
Part Number:
  P102027
Warranty:
  Against Product Defect

Available Now:
3  



$321.16


Print Version

Compact Oil Mist Eliminator Exhaust Filter, KF25 Inlet & Exhaust Ports, up to 10 CFM


Compact Oil Mist Eliminator Exhaust Filter, KF25 Inlet & Exhaust Ports, up to 10 CFM

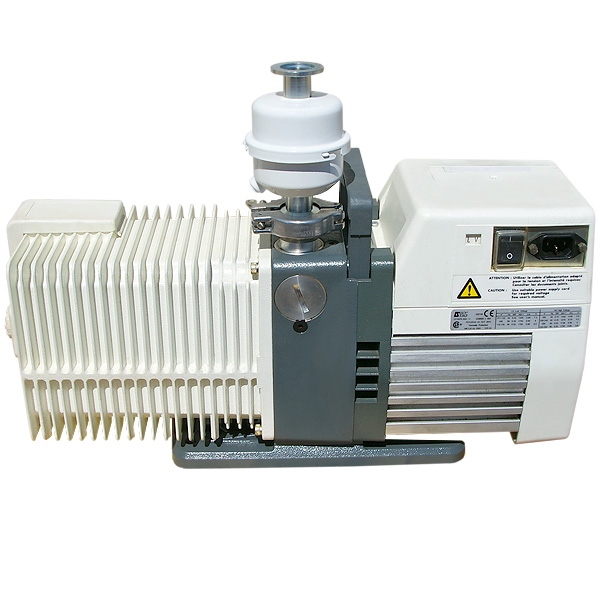

These compact oil mist eliminator exhaust filters come with the internal filter media installed and are used to capture oil fog, mist, or smoke from the exhaust of oil vacuum pumps. These exhaust filters are air tight to prevent the vacuum pump exhaust vapors from leaking into your laboratory. They have KF25 (NW25) ports for easy connection between your vacuum pump and exhaust line. These filters also have an internal back pressure valve designed to release the element at 7.35 PSI differential pressure for pump safety. They come with a 1/8" NPT oil drain port and are made of steel construction with a white painted finish. These compact oil mist eliminator exhaust filters are designed with seamless drawn housings and no welds to rust or vibrate apart. Each comes with an installed filter media that's easy to replace with a thumbscrew.


Fits:
Alcatel

2004, 2005, 2008, 2010, & 2012 Pumps With KF-25 or NW-25 Exhaust Flange.

Edwards
E2M2, E2M5, E2M8, E2M12, RV3, RV5, RV8, RV12 Pumps with KF-25 NW-25 Exhaust Flanges.

Labconco
E2M5, E2M8, 117, 195 with KF-25 or NW25 Exhaust Flanges.

Leybold
D8A with KF-25 or NW25 Exhaust Flanges.

Savant
VP100, VP190, VLP80, VLP120, VLP190, VLP285 with KF-25 or NW25 Exhaust Flanges.

Varian
SD90, SD200, SD300, SD91, SD201, SD301, DS102, DS202, DS302 with KF-25 or NW25 Exhaust Flanges.

Welch
8907, 8910, 8912, 8917, 8920, 8925, 1402, 1380, with KF-25 or NW25 Exhaust Flanges.

Or any rotary vane vacuum pump with KF25 or NW25 outlet up to 10 CFM.

Common Dimensions & Specifications:
Capacity: Up to 10 CFM
Weight: ~ 1 lbs
Inlet: KF25 or NW25
Exhaust: KF25 or NW25

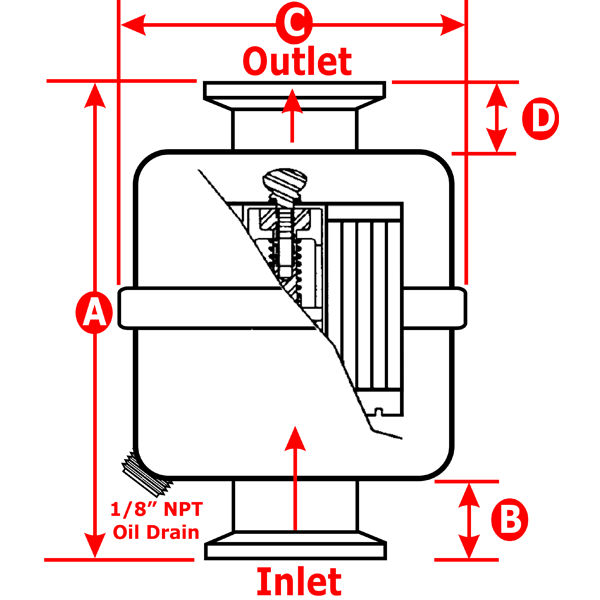

Dimensions: A= 4-5/16", B= 7/8", C= 3-1/4", D= 7/8"


Press ESC to Close


PDF Logo IVP Technical Considerations for Selecting Vacuum Components for Chemical Processes.pdf
