Condition:
  New
Part Number:
  P104581
Warranty:
  Against Product Defect

Available Now:
5  

RoHS Compliance Sticker


$30.11


Print Version

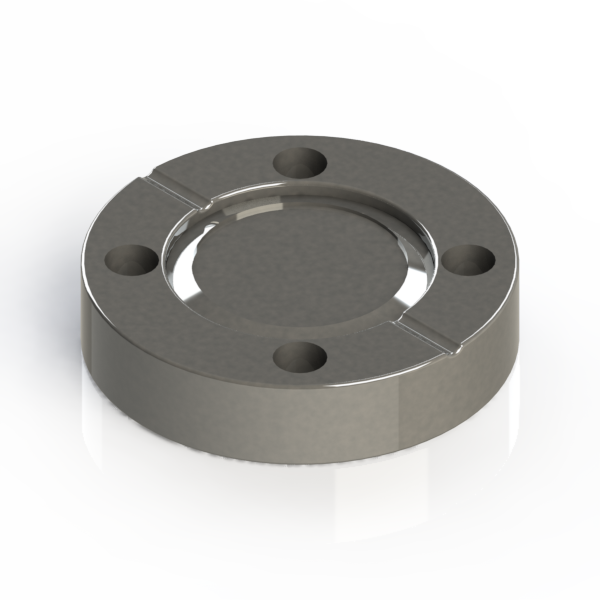

Conflat Flange (CF) Blank 2.125 inch, Through Holes, Rotatable, CF-F, Stainless Steel


Conflat Flange (CF) Blank Through Bolt Holes Rotatable, CF 2 1/8 inches, CFF 2.125 in., Stainless Steel Fittings

These are blank through 4 bolt holes rotatable flanges, 2 1/8 inch CF, CFF ConFlat (CF). These flanges are used for ultra-high vacuum applications. These fittings use a copper gasket and a knife-edge flange to achieve the high vacuum seal and can operate down to 10-13 torr (10-11 Pa) and can be heated to 450 °C for bake-out. North American flange sizes are given by flange outer diameter in inches: 1-1/3 ("mini conflat"), 2¾, 4½, 6, 8, 10, 12, 13¼, 14 and 16½. In Europe and Asia, sizes are given by tube inner diameter in millimeters: DN16, DN40, DN63, DN100, DN160, DN200, DN250. These vacuum fittings are made of corrosive resistant stainless steel. Sold as ONE EACH.

Conflat Flange (CF) Blank 4 bolt hole through flange rotatable, CF 2 1/8 inches, Stainless Steel
CF Flange Size: CF 2.125 inch
Common Dimensions:
(A) Outer Diameter = 2 1/8 in. (54mm)
(B) = 1 1/8 in. (28mm)
(C) = 1 5/8 in. (41.28mm)
(D) = 1/2 in. (12mm)


Press ESC to Close


PDF Logo RoHS Compliance Download

CAD Picture

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

E-drawing LogoeDrawings Viewer For Windows
E-drawing LogoeDrawings Viewer For MAC.
