Condition:
  New
Part Number:
  P107703
Warranty:
  Against Product Defect

Available Now:
1  

RoHS Compliance Sticker


$285.71


Print Version

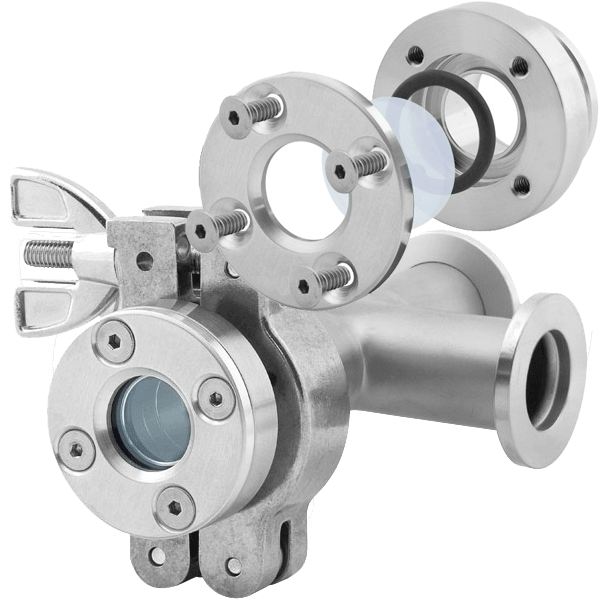

Demountable Viewport KF16 NW16 Flange, 0.56 in. view, Uncoated Glass, Stainless Steel


KF16 NW16 Flange Demountable Viewport, Glass, 0.56 in. view diameter, Uncoated Glass.

These Quick Flange demountable vacuum fittings have a flange size of KF16, NW16 with a glass viewport view diameter of 0.56 in and a glass thickness of 0.158". Demountable Viewports are used for ultra-high vacuum applications and molecular spectroscopy. These fittings use a Viton O-ring gasket, operate down to 10-8 torr (10-11 Pa), and have a max bakeout temperature of 150° C. The operable wavelength of the glass is between 350nm to 1500nm. North American flange sizes are given by flange outer diameter in inches: 1-1/3 ("mini conflat"), 2¾, 4½, 6, 8, 10, 12, 13¼, 14 and 16½. In Europe and Asia, sizes are given by tube inner diameter in millimeters: DN16, DN40, DN63, DN100, DN160, DN200, DN250. These vacuum fittings are made of corrosive resistant stainless steel. At present we have the following demountable viewport sizes listed in the graphic below and have replacement viewport glass and O-rings for sale.




Press ESC to Close


KF Demountable Viewport KF16, Stainless Steel Fittings
KF Flange Size: NW KF16
PDF Logo RoHS Compliance Download
