Condition:
  New
Part Number:
  P108680
Warranty:
  Edwards Warranty
Out of Stock  



$9,656.00


Regular Price: $12,070.00

On Sale Flyer
Print Version

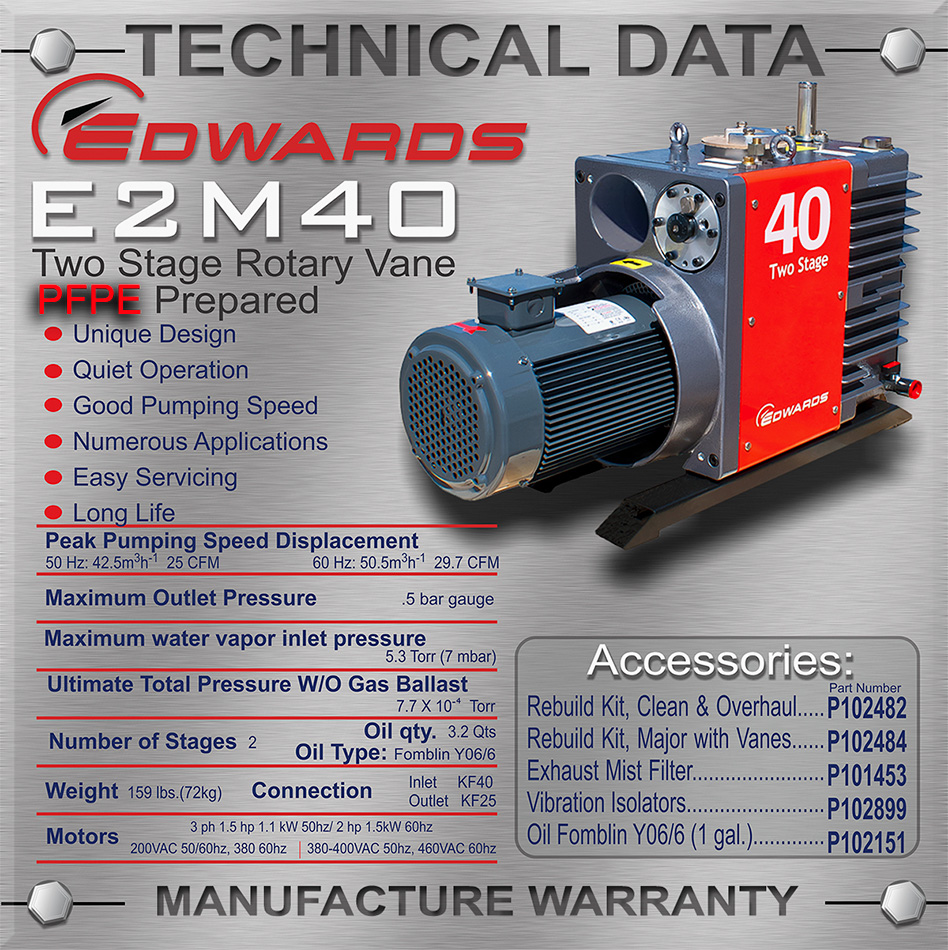

Edwards E2M40 Rotary Vane Dual Stage Mechanical Vacuum Pump, 200V 50/60Hz, 380V 60Hz, PN: A36417934, PFPE Prepared, IE3 ASIA Voltage


Edwards E2M40 Rotary Vane Dual Stage Mechanical Vacuum Pump, 200V 50/60Hz, 380V 60Hz, PFPE Prepared, IE3 ASIA Voltage
Edwards Part Number A36417934


These Edwards E2M40 direct drive PFPE rotary vane pumps are inherently compact and vibration free with an ultimate pressure of 7.7x10-4 Torr and a pumping speed of 25.9 CFM at 60 Hz. These Edwards E2M40 vacuum pumps offers a finger-proof coupling housing and totally enclosed fan-cooled motors, which provide excellent operator protection. The Edwards E2M40's give the best combination of performance, reliability, and cost in their class.

The Edwards E2M40 dual stage rotary vane mechanical vacuum pumps have an advanced oil lubrication circuit and are very reliable with accessories to match any application. Applications include use with refrigeration dehydration, brake line evacuation, thin film coating, vacuum distillation, freeze drying, space simulation and other chemical processes. These brand new Edwards E2M40 dual stage PFPE rotary vane pumps comes with an Edwards manufacturer's warranty. Oil and accessories are also available. Part number A36417934

Scroll down to AVAILABLE DOWNLOADS: and download the .pdf instruction manual.




Press ESC to Close


PDF Logo Edwards E1M40 E1M80 E2M40 & E2M80 Rotary Vane Pumps.pdf
