Condition:
  New
Part Number:
  P106522
Warranty:
  Edwards Warranty

Available Now:
1  
Expecting:   1
Anticipated Arrival:  1 on 2024-05-28



$4,762.41


Regular Price: $5,953.01

On Sale Flyer
Print Version

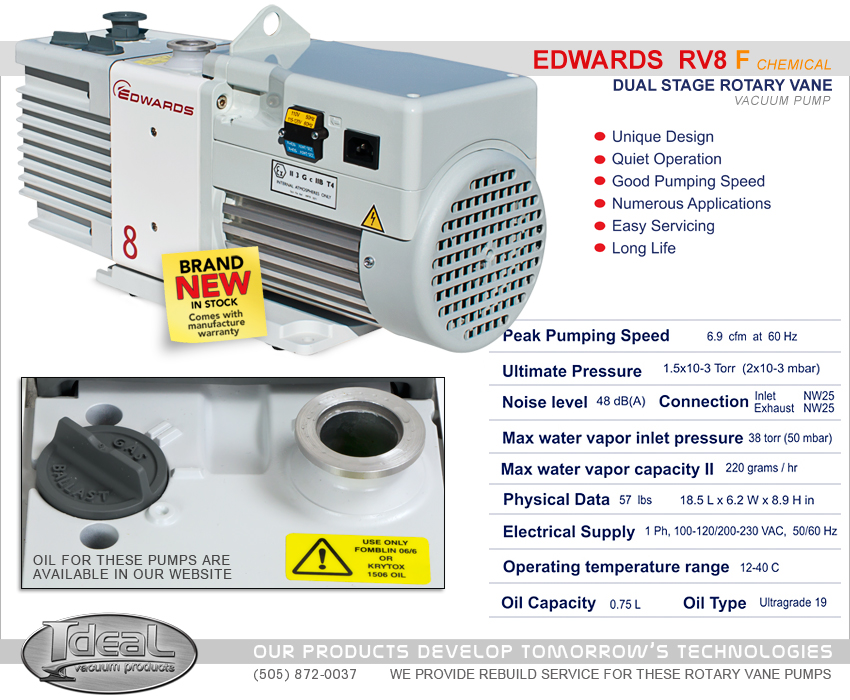

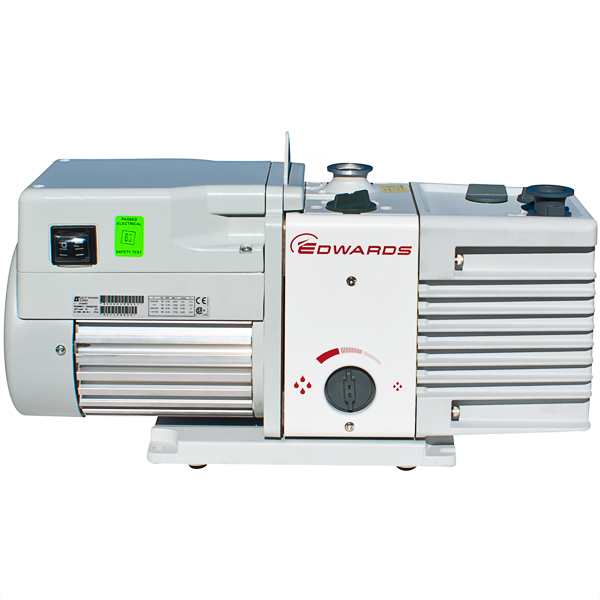

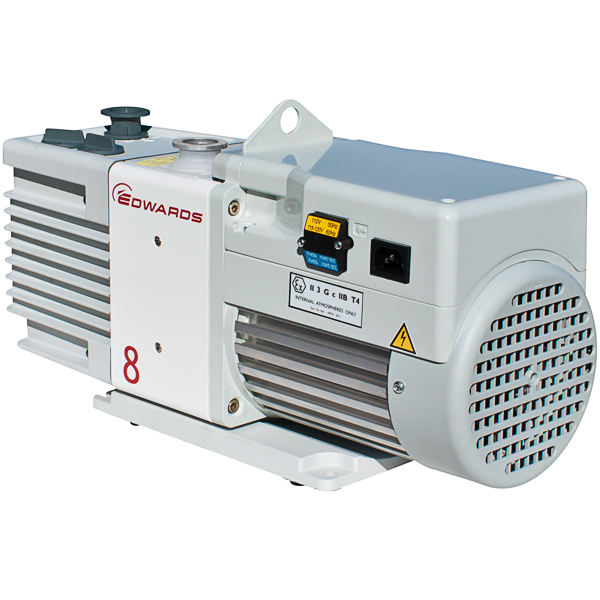

Edwards RV8 Chemical Rotary Vane Dual Stage Mechanical Vacuum Pump. PFPE Oil Prepared, A65409906


Edwards RV8F Chemical Rotary Vane Dual Stage Mechanical Vacuum Pump. Factory Prepared For PFPE Oil
1-Phase 115 or 220 VAC (Set to 115 VAC), Edwards Part Number A65409906

The Edwards RV8F dual stage rotary vane mechanical vacuum pumps offer excellent ultimate pumping speed and have superior vapor handling capabilities while operating quietly. The Edwards RV F series pumps are factory prepared for chemical inert PFPE vacuum pump oil for oxygen-safe and chemical applications (PFPE oil is not included but sold separately, requires Fomblin YVAC 06/6 or Krytox 1506). They are very reliable and have accessories to match any application, including use with refrigeration, dehydration, brake line evacuation, epoxy degassing, sterilization, mass spectrometry, vacuum ovens, lasers, backing combinations, thin film coating, vacuum distillation, freeze drying, space research and other vacuum processes. These Edwards RV5F have a pumping speed displacement at 60 Hz of 6.0 CFM and an ultimate pressure of 1.5x10-3 Torr and require 1-phase 115 or 220 VAC switchable (currently set to 115 VAC). These Edwards RV8F vacuum pumps are new, factory prepared for Fomblin YVAC 06/6 and Fomblin 1506 PFPE oil, and have Edwards part number A654-09-906 (A65409906).




Press ESC to Close




PDF Logo Edwards RV12 Rotary Vane Vacuum Pump Foreline Traps Brochure.pdf

PDF Logo Edwards RV3 and RV5 Rotary Vane Vacuum Instruction Manual

PDF Logo Agilent Varian 84 FS Turbomolecular Vacuum Pump User's Manual.pdf

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

E-drawing LogoeDrawings Viewer For Windows
E-drawing LogoeDrawings Viewer For MAC.
