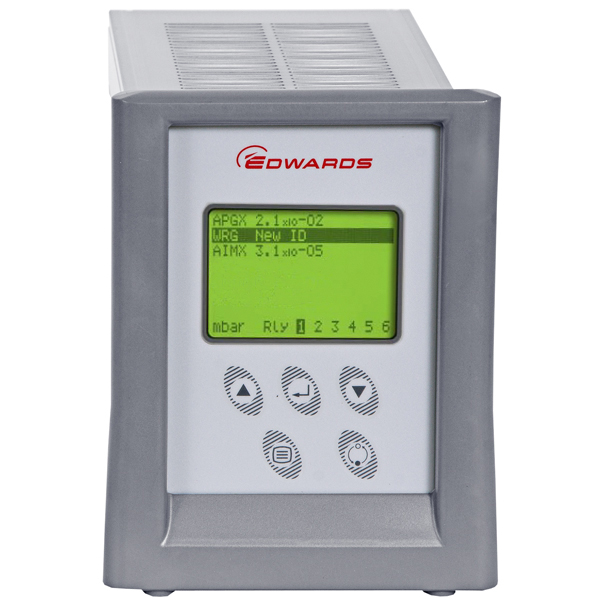

The TIC Instrument Pressure Controller provides compact control with a large, clear graphical display, an intuitive user interface and serial communications. The supplied Windows based PC program provides full remote setup, control and data logging functions via the RS232 interface. This is the three sensor head version and can accommodate 3 active pressure gauges. This TIC automatically recognizes and controls active gauges including APG100 Pirani, AGPX convection, ASG Strain, ATC thermocouple, AIM-X inverted magnetron, WRG wide range and AIGX active ion gauges. To enable complete integration into PC and PLC controlled processes, and includes RS232 and RS485 interface.

The TIC Instrument Pressure Controller provides compact control with a large, clear graphical display, an intuitive user interface and serial communications. The supplied Windows based PC program provides full remote setup, control and data logging functions via the RS232 interface. This is the three sensor head version and can accommodate 6 active pressure gauges. This TIC automatically recognizes and controls active gauges including APG100 Pirani, AGPX convection, ASG Strain, ATC thermocouple, AIM-X inverted magnetron, WRG wide range and AIGX active ion gauges. To enable complete integration into PC and PLC controlled processes, and includes RS232 and RS485 interface.

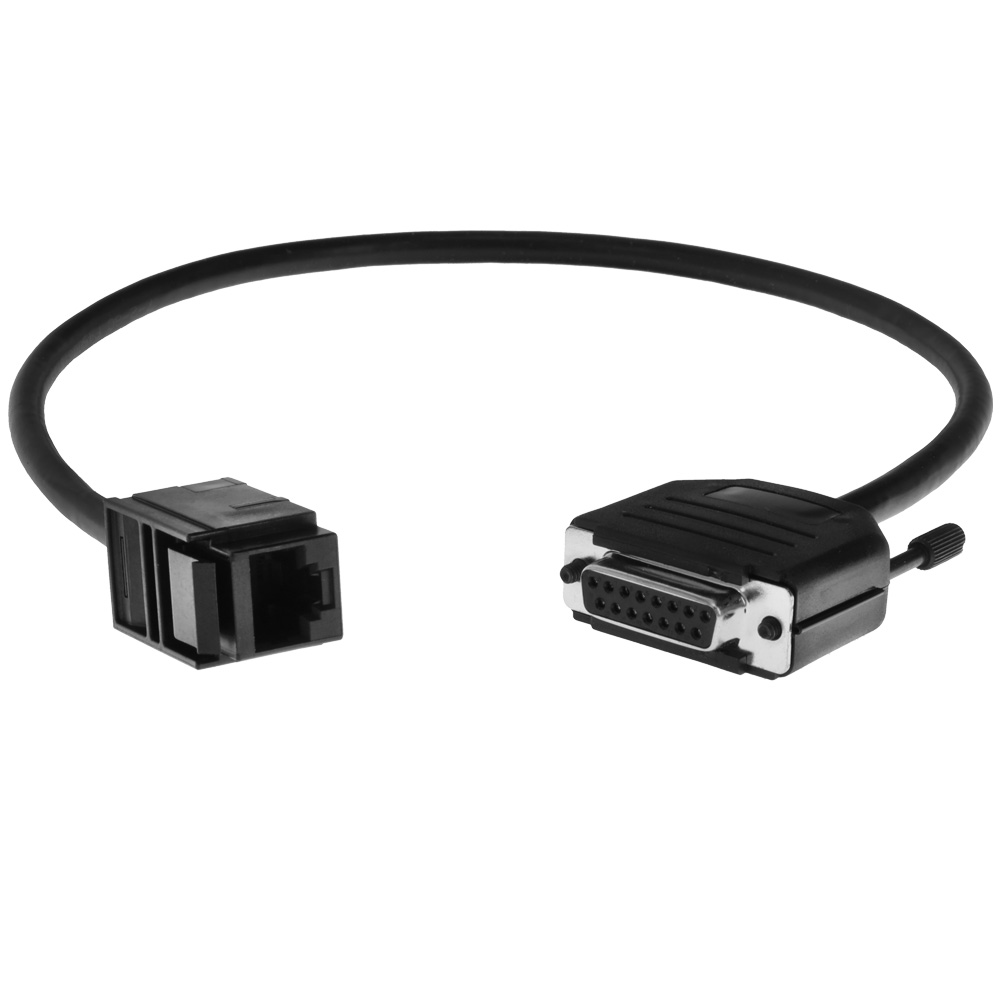

This Edwards OEM adapter cable allows a Barocel capacitance diaphragm gauge to be connected to the TIC 6 Head Instrument Controller (P107177, OEM PN: D39701000). Note that Barocel gauges are not compatible with the TIC 3 head controller (D39722000). This adapter cable can be used with these gauges:7025M-miniturised version

This cable connectivity kit is needed for transferring data from an Ideal Vacuum XG-120 digital thermocouple gauge controller or any other controller with a serial output to a remote PLC or computer via RS232 serial communication, when the computer does not have a serial port. Most modern machines do not have a built in serial port, but do have a USB port. This kit consists of a 6 ft. Serial-to-USB cable and null modem adapter (controller sold separately). The cable's DB9 male connector attaches through the null modem adapter onto the back of the controller, which has a DB9 female connector. The USB 2.0 type A connector plugs in to the computer's USB port. Some controllers may have a DB25 serial interface in which case a DB25-to-DB9 adapter would be required.
