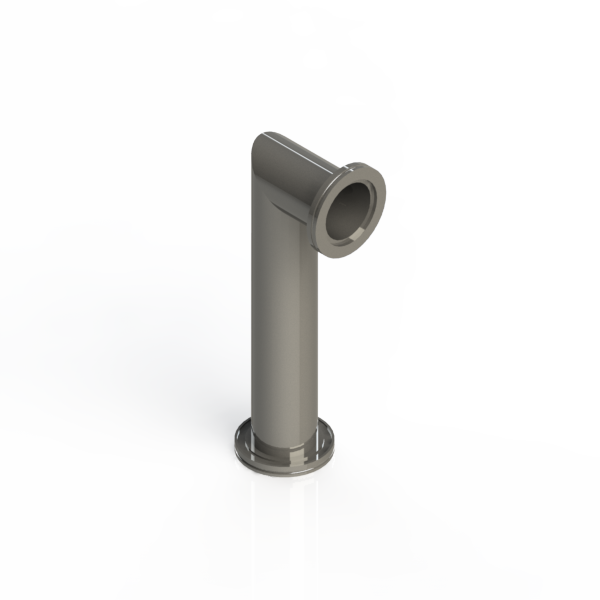

Elbow Mitered 90 Degrees, ISO-63, LF63 NW-63 Vacuum Fittings, 3.5x12.5in, Stainless Steel


Elbow Mitered 90 Degrees, ISO-LF, NW-63 Vacuum Fittings, 3.5x12.5in, Stainless Steel
PN: ISO-02-112

ISO (International Standards Organization) flanged vacuum fittings are commonly used to build process vacuum plumbing and systems for industrial applications. The fittings are quick to assemble using double claw clamps and a centering ring (please see top right figure - click to enlarge). The Viton® centering ring contains a rubber/elastomeric o-ring. The ISO standard sizes for large flanges are NW-63, NW-80, NW-100, NW-160, NW-200, NW-250, NW-320, NW-400, NW-500, NW-630. These vacuum fittings are made of corrosive resistant 304 stainless steel.

Specifications & Dimensions:
Flange Size: ISO LF NW-63
A: 12.5 inches (88mm)
B: 3.5 inches


Press ESC to Close


PDF Logo RoHS Compliance Download

CAD Picture

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

E-drawing LogoeDrawings Viewer For Windows
E-drawing LogoeDrawings Viewer For MAC.
