Condition:
  New
Part Number:
  P106067
Warranty:
  Against Product Defect

Available Now:
9  

RoHS Compliance Sticker


$1,742.50


Print Version

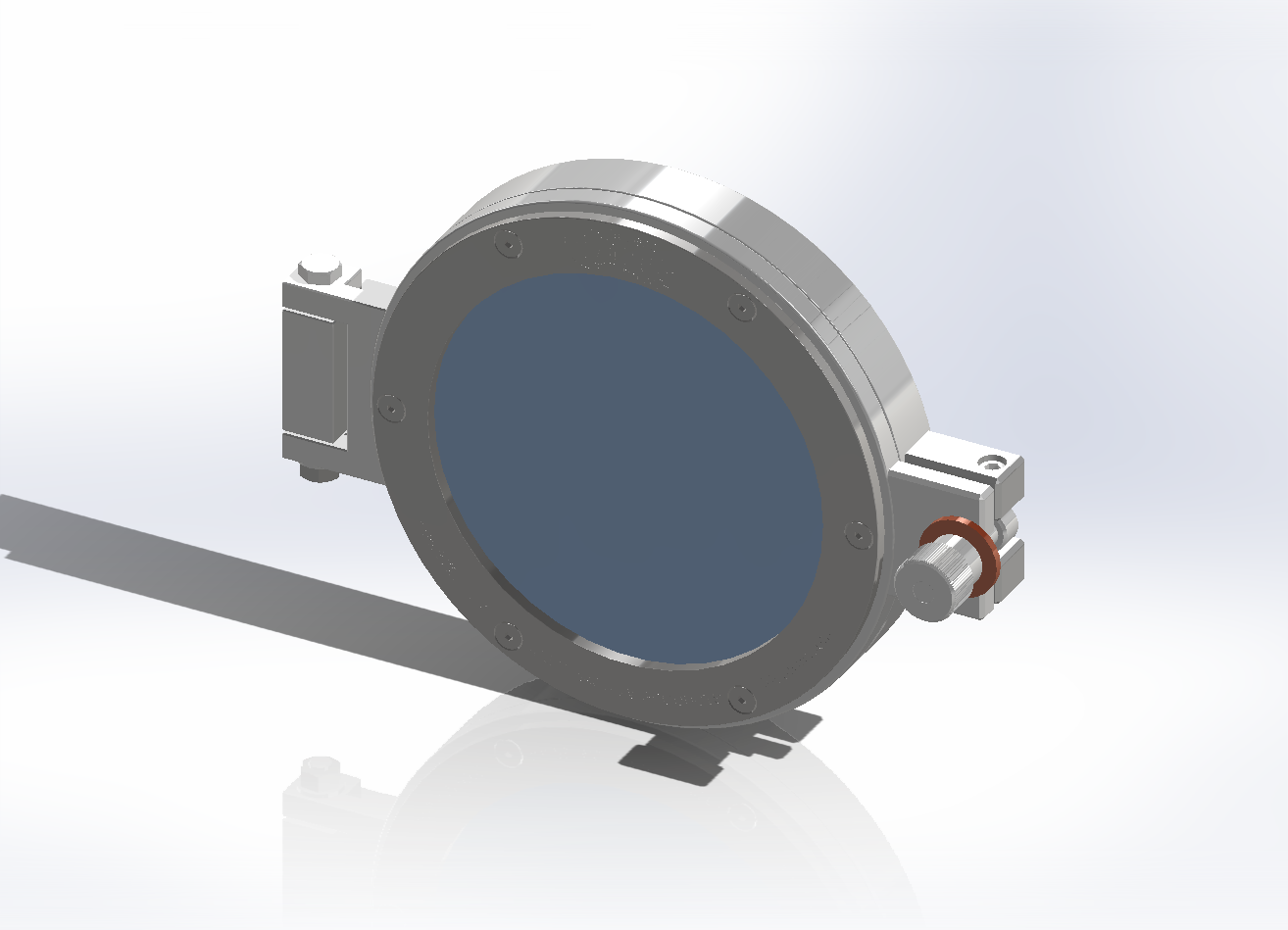

Fast Access Entry Door, Conflat Flange, CF 8.0 inch, With Window View Port, Stainless Steel Fitting


Fast Access Entry Door, Conflat Flange, CF 8.0 inch, With Window View Port, Stainless Steel Fitting

These fast access entry doors include a conflat CF 8.0 inch vacuum flange and allow for quick access to the vacuum chamber. They are often used for load-lock applications. These quick access doors include an optical view port window so that the vacuum system user can see inside the vacuum chamber. They include a manual knob for tightening the access door and are made of stainless steel with Viton o-ring material.

These fittings use a copper gasket and knife-edge flanges. The O-ring door seal would limit the high vacuum to 10-8 Torr range and can be heated to 150 °C for bake-out defined by the Viton O-ring. North American flange sizes are given by flange outer diameter in inches: 1-1/3 ("mini conflat"), 2¾, 4½, 6, 8, 10, 12, 13¼, 14 and 16½. In Europe and Asia, sizes are given by tube inner diameter in millimeters: DN16, DN40, DN63, DN100, DN160, DN200, DN250. These vacuum fittings are made of corrosive resistant stainless steel.




Press ESC to Close


PDF Logo RoHS Compliance Download

CAD Picture

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

E-drawing LogoeDrawings Viewer For Windows
E-drawing LogoeDrawings Viewer For MAC.
