16 Inch ASA Inlet, 3 Inch ASA Exhaust, 240 VAC These Varian Agilent High Throughput models include the series HS-16, HS-20, HS-32 and NHS-35. This is the HS-16 diffusion high throughput vacuum pump. They are the primary industrial standard for high vacuum pumping mechanism. The Agilent Varian HS-16 diffusion pumps have a high pumping speed for all gases and low cost per unit pumping speed when compared with other types of pump used in the same vacuum range. The full fractionating design allows vaporized fluid to be fractionated in the boiler and jet assembly. Contamination and decomposition products are pumped away and only the purest vapor reaches the top jet, assuring highest speed and lowest backstreaming. The vacuum fluid heater is mounted at the bottom of the pump body. The HS pumps have a fill and drain assembly for easy maintenance of pump fluid and continuous monitoring with thermal protection switches. Finned boilers increase the surface area which prolongs fluid life. The inlet is at the top, and the exhaust is through the foreline.

16 Inch ASA Inlet, 3 Inch ASA Exhaust, 240 VAC These Varian Agilent High Throughput models include the series HS-16, HS-20, HS-32 and NHS-35. This is the HS-16 diffusion high throughput vacuum pump. They are the primary industrial standard for high vacuum pumping mechanism. The Agilent Varian HS-16 diffusion pumps have a high pumping speed for all gases and low cost per unit pumping speed when compared with other types of pump used in the same vacuum range. The full fractionating design allows vaporized fluid to be fractionated in the boiler and jet assembly. Contamination and decomposition products are pumped away and only the purest vapor reaches the top jet, assuring highest speed and lowest backstreaming. The vacuum fluid heater is mounted at the bottom of the pump body. The HS pumps have a fill and drain assembly for easy maintenance of pump fluid and continuous monitoring with thermal protection switches. Finned boilers increase the surface area which prolongs fluid life. The inlet is at the top, and the exhaust is through the foreline.

16 Inch ASA Inlet, 3 Inch ASA Exhaust, 415 VAC These Varian Agilent High Throughput models include the series HS-16, HS-20, HS-32 and NHS-35. This is the HS-16 diffusion high throughput vacuum pump. They are the primary industrial standard for high vacuum pumping mechanism. The Agilent Varian HS-16 diffusion pumps have a high pumping speed for all gases and low cost per unit pumping speed when compared with other types of pump used in the same vacuum range. The full fractionating design allows vaporized fluid to be fractionated in the boiler and jet assembly. Contamination and decomposition products are pumped away and only the purest vapor reaches the top jet, assuring highest speed and lowest backstreaming. The vacuum fluid heater is mounted at the bottom of the pump body. The HS pumps have a fill and drain assembly for easy maintenance of pump fluid and continuous monitoring with thermal protection switches. Finned boilers increase the surface area which prolongs fluid life. The inlet is at the top, and the exhaust is through the foreline.

16 Inch ASA Inlet, 3 Inch ASA Exhaust, 415 VAC These Varian Agilent High Throughput models include the series HS-16, HS-20, HS-32 and NHS-35. This is the HS-16 diffusion high throughput vacuum pump. They are the primary industrial standard for high vacuum pumping mechanism. The Agilent Varian HS-16 diffusion pumps have a high pumping speed for all gases and low cost per unit pumping speed when compared with other types of pump used in the same vacuum range. The full fractionating design allows vaporized fluid to be fractionated in the boiler and jet assembly. Contamination and decomposition products are pumped away and only the purest vapor reaches the top jet, assuring highest speed and lowest backstreaming. The vacuum fluid heater is mounted at the bottom of the pump body. The HS pumps have a fill and drain assembly for easy maintenance of pump fluid and continuous monitoring with thermal protection switches. Finned boilers increase the surface area which prolongs fluid life. The inlet is at the top, and the exhaust is through the foreline.

16 Inch ASA Inlet, 3 Inch ASA Exhaust, 480 VAC These Varian Agilent High Throughput models include the series HS-16, HS-20, HS-32 and NHS-35. This is the HS-16 diffusion high throughput vacuum pump. They are the primary industrial standard for high vacuum pumping mechanism. The Agilent Varian HS-16 diffusion pumps have a high pumping speed for all gases and low cost per unit pumping speed when compared with other types of pump used in the same vacuum range. The full fractionating design allows vaporized fluid to be fractionated in the boiler and jet assembly. Contamination and decomposition products are pumped away and only the purest vapor reaches the top jet, assuring highest speed and lowest backstreaming. The vacuum fluid heater is mounted at the bottom of the pump body. The HS pumps have a fill and drain assembly for easy maintenance of pump fluid and continuous monitoring with thermal protection switches. Finned boilers increase the surface area which prolongs fluid life. The inlet is at the top, and the exhaust is through the foreline.

16 Inch ASA Inlet, 3 Inch ASA Exhaust, 480 VAC These Varian Agilent High Throughput models include the series HS-16, HS-20, HS-32 and NHS-35. This is the HS-16 diffusion high throughput vacuum pump. They are the primary industrial standard for high vacuum pumping mechanism. The Agilent Varian HS-16 diffusion pumps have a high pumping speed for all gases and low cost per unit pumping speed when compared with other types of pump used in the same vacuum range. The full fractionating design allows vaporized fluid to be fractionated in the boiler and jet assembly. Contamination and decomposition products are pumped away and only the purest vapor reaches the top jet, assuring highest speed and lowest backstreaming. The vacuum fluid heater is mounted at the bottom of the pump body. The HS pumps have a fill and drain assembly for easy maintenance of pump fluid and continuous monitoring with thermal protection switches. Finned boilers increase the surface area which prolongs fluid life. The inlet is at the top, and the exhaust is through the foreline.

These Agilent Varian HS-16 diffusion pump standard cold caps are a replacement part that can be installed at the customer's location. There are two types of cold caps, standard and Halo Baffle. The type of cold cap used will influence factors, such as, oil backstreaming and final pumping speed of the diffusion pump. For example, the Halo Baffle Cold Cap is an option that fits inside the HS-16 pumps in place of the standard cold cap. The Halo Baffle stops backstreaming as effectively as an optically dense baffle, yet it retains 60% of the pump’s speed. Residual backstreaming is so low that it cannot be measured by the American Vacuum Society’s standard collection method. For location of the cold cap please see item #1 on diagram exploded view & parts illustration shown below. For removal installation procedures of cold cap see page 38 of instruction manual PDF below. These standard cold caps are OEM original Agilent Varian replacement parts with part number 79299301.

These Agilent Varian HS-16 diffusion pump cold cap and nut follower (2 each), is part of the jet assembly and is a OEM Agilent Varian replacement part for the HS-16 diffusion vacuum pump. These are original OEM Agilent Varian replacement parts for the HS-16 diffusion pump having part number L8839301, see item #2 in the diagram exploded view & parts illustration below.

These Agilent Varian HS-16 diffusion pump jet assembly are OEM Agilent Varian replacement parts for the HS-16 diffusion vacuum pumps. This kit includes the complete jet assembly components, see the jet assembly referenced on page 40 in instruction manual PDF below. These are original OEM Agilent Varian replacement parts for the HS-16 diffusion pump having part number PN 83612401, see item #3 in the diagram exploded view & parts illustration below.

These Agilent Varian HS-16 diffusion pump replacement foreline baffle assemblies are OEM Agilent Varian replacement parts with part number 80798301. The foreline baffle is located in the roughing line exhaust arm of the diffusion pump. They are designed to help prevent diffusion pump oil from being transported to the roughing pump under high throughput conditions. See the HS-16 diffusion pump roughing line arm noted by balloon #5 in the illustration below.

This is a replacement Oil Drain Plug. Fits the Agilent Varian HS-16 Diffusion Pump. For location of the oil drain plug see figure #7 (diagram exploded view & parts illustration) below.

These Agilent Varian HS-16 diffusion pump jet coupling part, is part of the jet assembly and is a OEM Agilent Varian replacement part for the HS-16 diffusion vacuum pump. See referenced on Page 40 in instruction manual PDF below. These are original OEM Agilent Varian replacement parts for the HS-16 diffusion pump having part number L6367301, see item #4 in the diagram exploded view & parts illustration below.

This is the Agilent Varian HS-16 (ASA 16 in.) Diffusion Pump O-Ring Kit. O-Ring Kit Contains: 3 Butyl inlet flange O-ring, ASA 16 inch 1 Foreline flange O-ring, ASA 3 inch 8 Viton fill and drain O-rings 4 Viton O-rings 1 Sight glass O-ring 1 Graphite sight glass gasket

This is a replacement Oil Sight Glass, Fits the Agilent Varian HS-16 Diffusion Pump. For location of the sight glass see item #6 on (diagram exploded view & parts illustration) below.

This is a replacement heater insulation blanket. Fits the Agilent Varian HS-16 Diffusion Pump. 3 pieces Cerablanket, 0.50 inch thick. For location of the insulation blanket see item #14 (diagram exploded view & parts illustration) below.

This is a replacement heater cover plate. Fits the Agilent Varian HS-16 Diffusion Pump. For location of the heater cover plate see item #15 (diagram exploded view & parts illustration) below.

This is a replacement upper thermal (water) switch. Fits the Agilent Varian HS-20/16 Diffusion Pump. Set at 185º F, 85º C. For location of the upper thermal switch see figure #8 (diagram exploded view & parts illustration) below.

This is a replacement lower thermal (boiler) switch. Fits the Agilent Varian HS-20 HS-16 Diffusion Pump. Set at 390º F, 199º C. For location of the upper thermal switch see figure #9 (diagram exploded view & parts illustration) below.

This is replacement thermal switches for the Lower (boiler) and Upper (water) switches. Fits the Agilent Varian HS-20 HS-16 Diffusion Pump. Lower Switch Set at 390º F, 199º C. Upper Switch Set at 185º F, 85º C. For location of the upper and lower thermal switches see figure #9 (diagram exploded view & parts illustration) below.

This is a replacement crush plate.(1 each) Fits the Agilent Varian HS-16 Diffusion Pump. Should be replaced when heater is replaced. For location of the crush plate see item #12 (diagram exploded view & parts illustration) below.

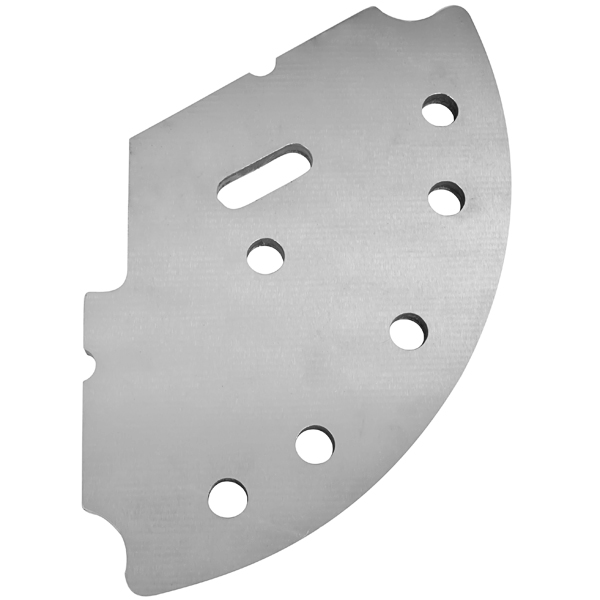

This is a replacement clamping plate.(1 each) Fits the Agilent Varian HS-16 Diffusion Pump. 3 required per pump. For location of the clamping plate see item #13 (diagram exploded view & parts illustration) below.

This is a replacement heater element NO leads, 200 V, 415 V, 2700 W. (1 each) Fits the Agilent Varian HS-16 Diffusion Pump. (for HS-16 pumps built before May 1990) For location of the heater element see item #11 (diagram exploded view & parts illustration) below. (3 required per pump)

These are bolts to attach ASA Gate Valves to ASA Diffusion pumps, ASA sizes 6, 8 and 10 inch. One each, size 3/4-10 1-1/4" Length Hex Bolt - Course Thread.

This is a replacement heater element NO leads, 480 V, 2700 W. (1 each) Fits the Agilent Varian HS-16 Diffusion Pump. (for HS-16 pumps built before May 1990) For location of the heater element see item #11 (diagram exploded view & parts illustration) below. (3 required per pump)

This is a replacement heater element NO leads, 480 V, 2700 W. (1 each) Fits the Agilent Varian HS-10 Diffusion Pump.

This is a replacement heater element with leads, 200 V, 415 V, 2700 W. (1 each) Fits the Agilent Varian HS-16 Diffusion Pump. For location of the heater element see item #11 (diagram exploded view & parts illustration) below. (3 required per pump)

This is a replacement heater element with leads, 200 V, 415 V, 3200 W. (1 each) Fits the Agilent Varian HS-16 Diffusion Pump. For location of the heater element see item #11 (diagram exploded view & parts illustration) below. (3 required per pump)

This is a replacement heater element with leads, 480V, 2700 W. (1 each) Fits the Agilent Varian HS-16 Diffusion Pump. For location of the heater element see item #11 (diagram exploded view & parts illustration) below. (3 required per pump)

This is a replacement heater element with leads, 480V, 3200 W. (1 each) Fits the Agilent Varian HS-16 Diffusion Pump. For location of the heater element see item #11 (diagram exploded view & parts illustration) below. (3 required per pump)

Agilent Varian Thermocouple for measuring temperature of diffusion vacuum pumps. One end is connected to the diffusion pump the other end is connected to a temperature gauge. Agilent Varian Part Number 642906115
