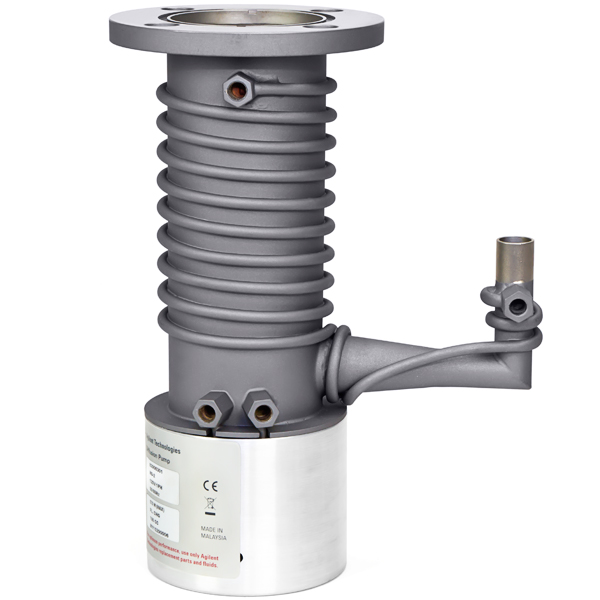

The Agilent Varian HS-2 has been designed to fill a special need in applications where high pumping speeds are required and space limitations demand a compact pump. This unit, smallest of the HS Series pumps, is well suited for laboratory and research use. The HS2 pump is a rugged, general-purpose unit with an operating range of 2 x 10-3 to / min, without the use of any anti-cooled cold cap with only a slight reduction in pumping speed. Inlet Flange 2 inch ASA, 6 inch OD.

The Agilent Varian HS-2 has been designed to fill a special need in applications where high pumping speeds are required and space limitations demand a compact pump. This unit, smallest of the HS Series pumps, is well suited for laboratory and research use. The HS2 pump is a rugged, general-purpose unit with an operating range of 2 x 10-3 to / min, without the use of any anti-cooled cold cap with only a slight reduction in pumping speed. Inlet Flange 2 inch ASA, 6 inch OD.

This is a replacement jet tube assembly. Fits the Agilent Varian HS-2 Diffusion Pump. For location of the jet tube assembly see item #6 on (diagram exploded view & parts illustration) below.

This is a replacement part heater block (1 per diffusion pump). Fits the Agilent Varian HS-2 Diffusion Pump. See exploded view diagram item #3 for heater block location below.

This is a bolt that attaches and ASA Gate Valve to the HS-2 Varian Diffusion Pump. Size 3/8-16 1" Length, Course Thread, SS (1 each).

This is a replacement part heater platen (1 per diffusion pump). Fits the Agilent Varian HS-2 Diffusion Pump. See exploded view diagram item #4 for heater platen location below.

This is replacement reflector. Fits the Agilent Varian HS-2 Diffusion Pump.

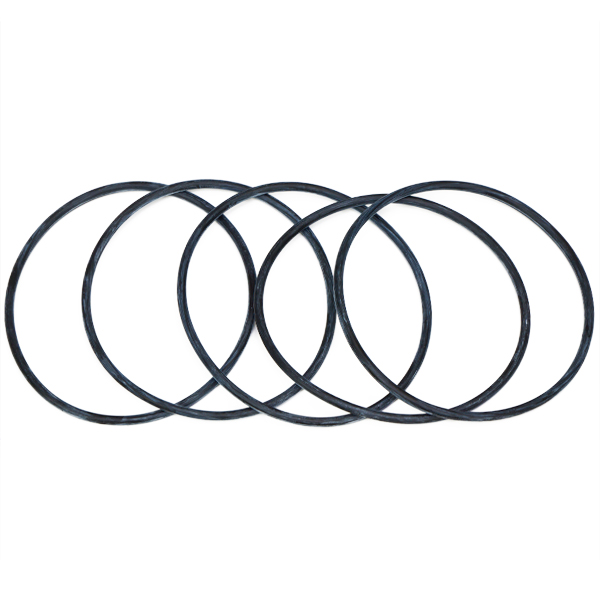

This is replacement parts O-Ring Kit for the 2 in. ASA Inlet Flange. (5 per package). Fits the Agilent Varian HS-2 Diffusion Pump. Made of butyl 2-338 rubber. Fits M-2 and HSA-150 pumps also.

This is a replacement cold cap assembly. Fits the Agilent Varian HS-2 Diffusion Pump. For location of the cold cap see item #8 on (diagram exploded view & parts illustration) below.

This is a replacement foreline exhuast baffle. Fits the Agilent Varian HS-2 Diffusion Pump. For location of the forenline exhaust baffle see item #9 on (diagram exploded view & parts illustration) below.

This is a replacement foreline baffle retaining ring. Fits the Agilent Varian HS-2 Diffusion Pump. For location of the foreline baffle retaining ring see item #10 on (diagram exploded view & parts illustration) below.

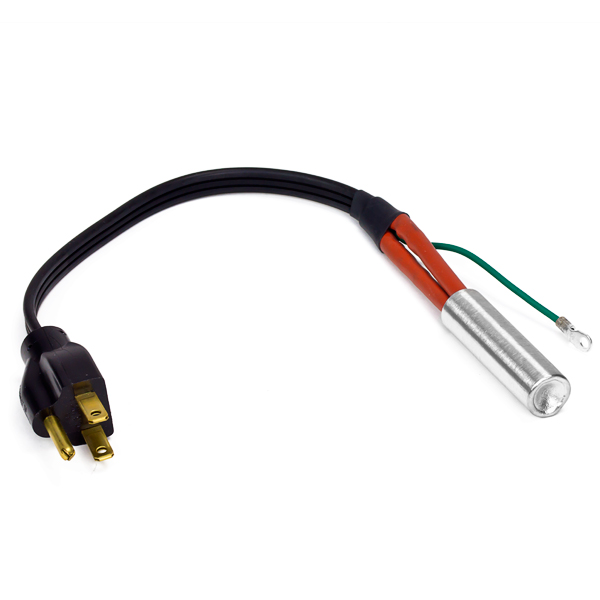

This is a replacement part heater assembly (also known as heater element). 350 Watt, 120 VAC for use with Santovac 5 oil. Fits the Agilent Varian HS-2 Diffusion Pump. See exploded view diagram item 1 & 2 for heater assembly location below. For directions on how to replace heater assembly scroll down to AVAILABLE DOWNLOADS and see page 1-3 in the HS-2 Service Manual PDF.

This is a replacement part heater assembly (also known as heater element). 450 Watt, 120 VAC for use with Santovac 5 oil. Fits the Agilent Varian HS-2 Diffusion Pump. See exploded view diagram item 1 & 2 for heater assembly location below. For directions on how to replace heater assembly scroll down to AVAILABLE DOWNLOADS and see page 1-3 in the HS-2 Service Manual PDF.

This is a replacement part heater assembly (also known as heater element). 350 Watt, 240 VAC for use with Santovac 5 oil. Fits the Agilent Varian HS-2 Diffusion Pump. See exploded view diagram item 1 & 2 for heater assembly location below. For directions on how to replace heater assembly scroll down to AVAILABLE DOWNLOADS and see page 1-3 in the HS-2 Service Manual PDF.

This is a replacement part heater assembly (also known as heater element). 450 Watt, 240 VAC for use with Santovac 5 oil. Fits the Agilent Varian HS-2 Diffusion Pump. See exploded view diagram item 1 & 2 for heater assembly location below. For directions on how to replace heater assembly scroll down to AVAILABLE DOWNLOADS and see page 1-3 in the HS-2 Service Manual PDF.

Agilent Varian Thermocouple for measuring temperature of diffusion vacuum pumps. One end is connected to the diffusion pump the other end is connected to a temperature gauge. Agilent Varian Part Number 642906115
