Condition:
  New
Part Number:
  P1010812
Warranty:
  Full Manufacturer's Warranty

Available Now:
1  



$3,000.00


Print Version

Ideal Vacuum Gas Cylinder Mixing Assembly, 304L Stainless Steel, DOT-3E-1800 2250cm3 Cylinder, Matheson 3530A Single Stage Regulator


Ideal Vacuum Gas Cylinder Mixing Assembly, 304L Stainless Steel Cylinder, Matheson 3530A Single Stage Regulator
Cylinder Grade: DOT-3E-1800

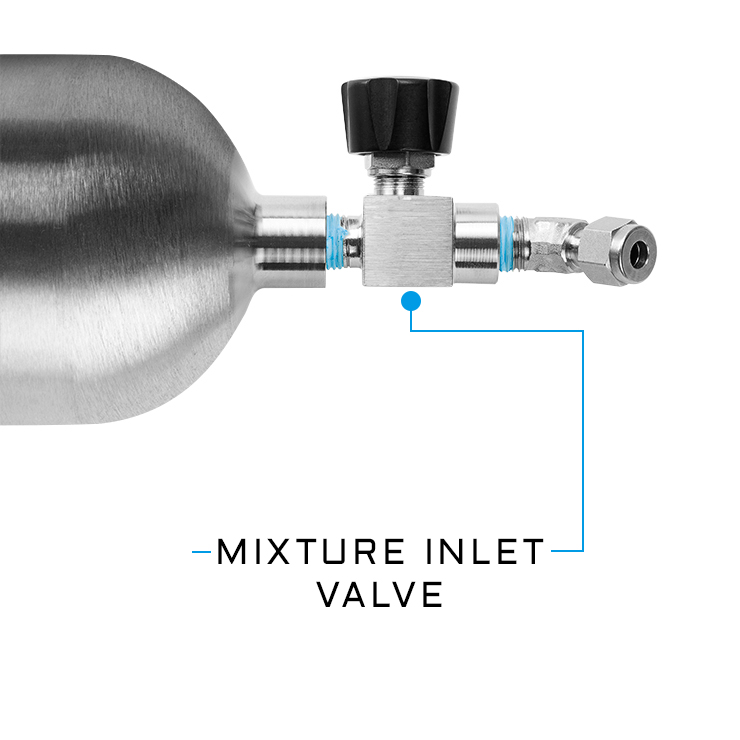

The Ideal Vacuum Gas Cylinder Mixing Assembly is designed to simplify the mixture of process gasses across a variety of applications. The system, complete with a gas regulator and gas regulator purge valve assembly, uses high pressure needle valves (up to 6000 PSI) to help precisely control gas flow into the mixture cylinder. The Cylinder equipped to this system is 304L stainless steel, has a wall thickness of 2.4mm, and can be pressurized up to a recommended maximum of 1800 PSI(@ 37°C). Cylinders with internal PTFE coating or internal electopolished finishes are also available on this website

Cylinder maximum pressure rating varies by temperature. DO NOT pressurize cylinders over their respective temperature limits

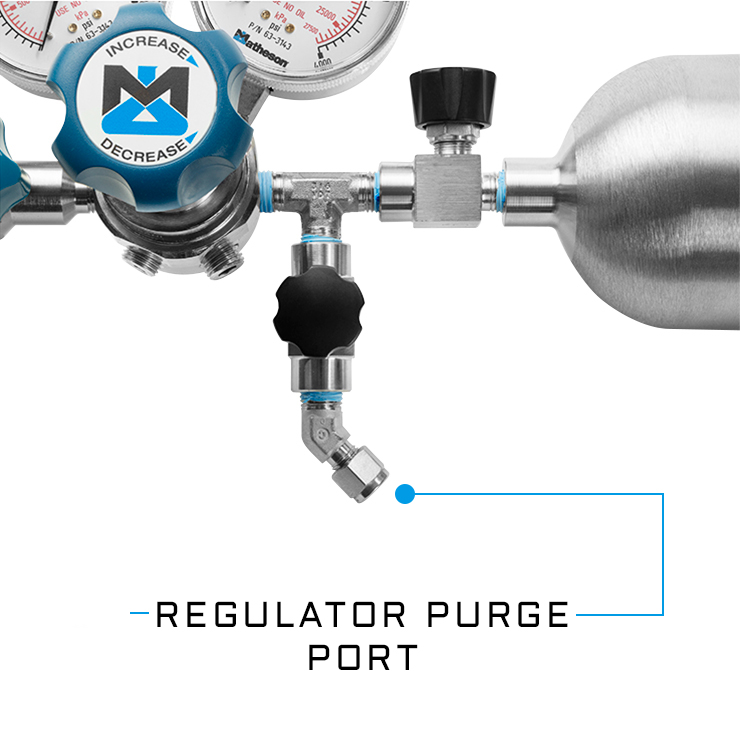

The purge system is crucial to keeping the regulator clean while the cylinder is not in use. Corrosive gasses being mixed will eventually erode the seals of the regulator causing it to fail over time. To avoid this, the purge assembly line can be connected to an inert gas cylinder and a vacuum pump. It is recommended to evacuate and purge the regulator several times with an inert gas after using the mixing assembly with any amount of corrosives to greatly prolong the life of your regulator.



Potential Applications Include:
  • Mass Spectrometer
  • Residual Gas Analyzer (RGA) Testing
  • Gas-Phase Chromatography
  • Incubator Gas Mixture Storage
  • Semiconductor Gas Sampling
  • Laser Spectroscopy Precursor Delivery
  • Exoatmospheric Sample Storage
  • Fill Gases for Chemical gas Laser
  • General Gas Mixing and Storage Applications
