Inficon MPG400 Pirani and Cold Cathode, Inverted Magnetron Gauge, FPM Sealed, KF-ISO DN 25, KF25
Out of Stock
Expecting: 3
Arrival: 3 on 2024-04-16


This INFICON Gauge is a Pirani and Cold Cathode combination gauge design and can measure pressure from atmosphere to 7x10-9 Torr. The gauge consists of two separate measuring systems (the Pirani and the cold cathode system according to the inverted magnetron principle). They are combined in such a way that for the user, they behave like one measuring system. They have a KF-ISO DN 25, KF25 vacuum flange fitting and are compatible to work with the following INFICON Pressure Gauge Controllers: INFICON Single Channel Controller VGC401. INFICON Two Channel Controller VGC402. INFICON Three Channel Controller VGC403.This UHV Inverted Magnetron Gauge can work with virtually any Vacuum Pump or Vacuum Pump System with the proper INFICON signal cable and INFICON controller with KF-ISO DN 25, KF25 connector fittings.

Condition: New



Product Number: P104425



Price: $1,749.96



Inficon MPG400 Pirani and Cold Cathode, Inverted Magnetron Gauge, FPM Sealed, KF-ISO DN 40, KF40
Out of Stock
Expecting: 1
Arrival: 1 on 2024-07-16


This INFICON Gauge is a Pirani and Cold Cathode combination gauge design and can measure pressure from atmosphere to 7x10-9 Torr. The gauge consists of two separate measuring systems (the Pirani and the cold cathode system according to the inverted magnetron principle). They are combined in such a way that for the user, they behave like one measuring system. They have a KF-ISO DN 40, KF40 vacuum flange fitting and are compatible to work with the following INFICON Pressure Gauge Controllers: INFICON Single Channel Controller VGC401. INFICON Two Channel Controller VGC402. INFICON Three Channel Controller VGC403.This UHV Inverted Magnetron Gauge can work with virtually any Vacuum Pump or Vacuum Pump System with the proper INFICON signal cable and INFICON controller with KF-ISO DN 40, KF40 connector fittings.

Condition: New



Product Number: P104424



Price: $1,840.83



Inficon MPG401 Pirani, Cold Cathode, Inverted Magnetron Gauge, Metal Sealed, DN40, CF 2.75 in
In Stock: 2


This INFICON Gauge is a Pirani and Cold Cathode combination gauge design and can measure pressure from atmosphere to 7x10-9 Torr. The gauge consists of two separate measuring systems (the Pirani and the cold cathode system according to the inverted magnetron principle). They are combined in such a way that for the user, they behave like one measuring system. They have a CF-F DN40, CF 2.75 inch vacuum flange fitting and are compatible to work with the following INFICON Pressure Gauge Controllers: INFICON Single Channel Controller VGC401. INFICON Two Channel Controller VGC402. INFICON Three Channel Controller VGC403.This UHV Inverted Magnetron Gauge can work with virtually any Vacuum Pump or Vacuum Pump System with the proper INFICON signal cable and INFICON controller with CF-F DN40, CF 2.75 inch connector fittings.

Condition: New



Product Number: P104439



Price: $2,150.50

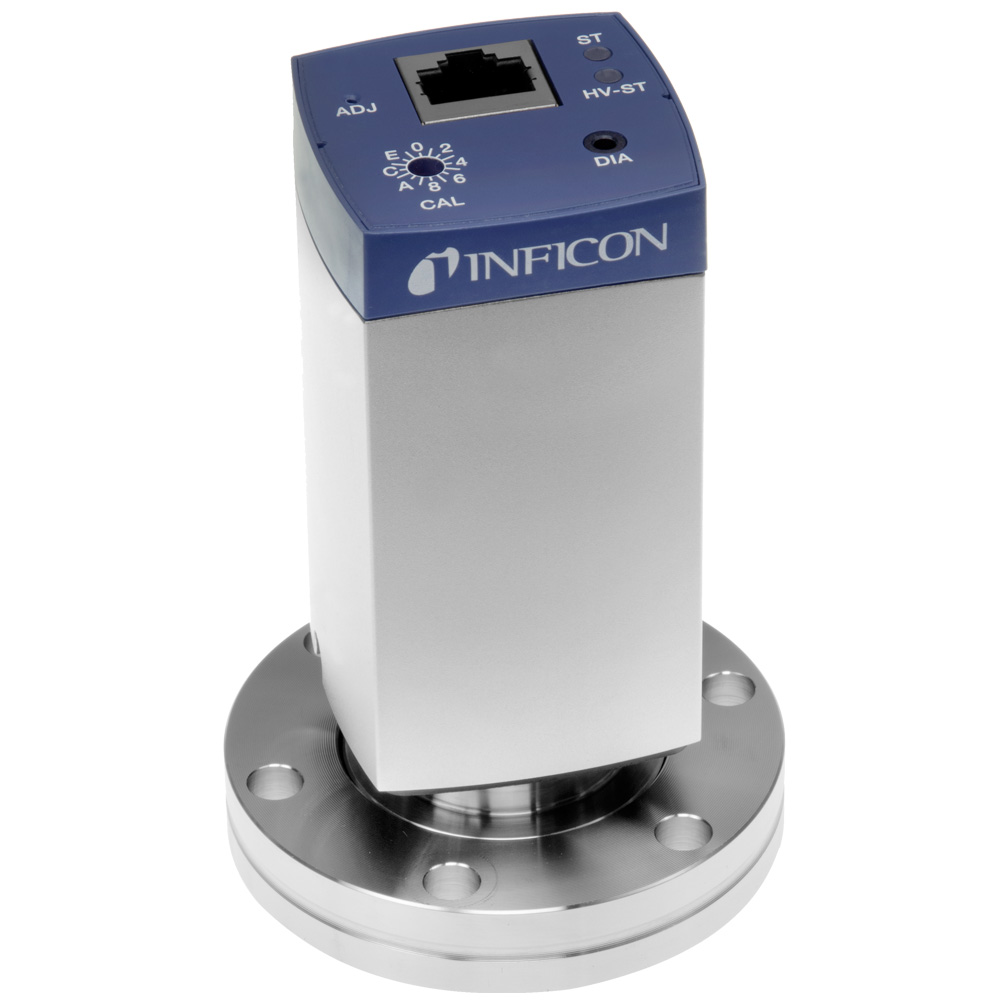

Inficon Gemini MPG500 Inverted Magnetron Cold Cathode/Pirani Combination Gauge, UHV, CF 2.75. PN: 3MB0-008-000P.
Out of Stock


This Gemini MPG500 compact, Inverted Magnetron Pirani Gauge has a DN40 CF 2.75 fitting. It measures from atmosphere to 1 x 10 Torr using a unique two sensor system which combines cold cathode and Pirani technology. The MPG500's unique, replaceable dual chamber sensor unit avoids cleaning cycles and eliminates maintenance, making Gemini the most robust and economical vacuum gauge of its kind. The Inficon Gemini MPG500 cold cathode and Pirani combination provides seamless transition, reliability, practicality and flexibility across wide ranging applications. The Gemini series of gauges has fully integrated digital electronics providing ultimate flexibility for system Integration. The Gemini MPG500 gauges have fast, reliable ignition, and the patented ultra-low magnetic stray field design opens up a whole new range of applications. EtherCAT, RS485 and RS232 communication options are available.

Condition: New



Product Number: P1012329



Price: $2,023.56

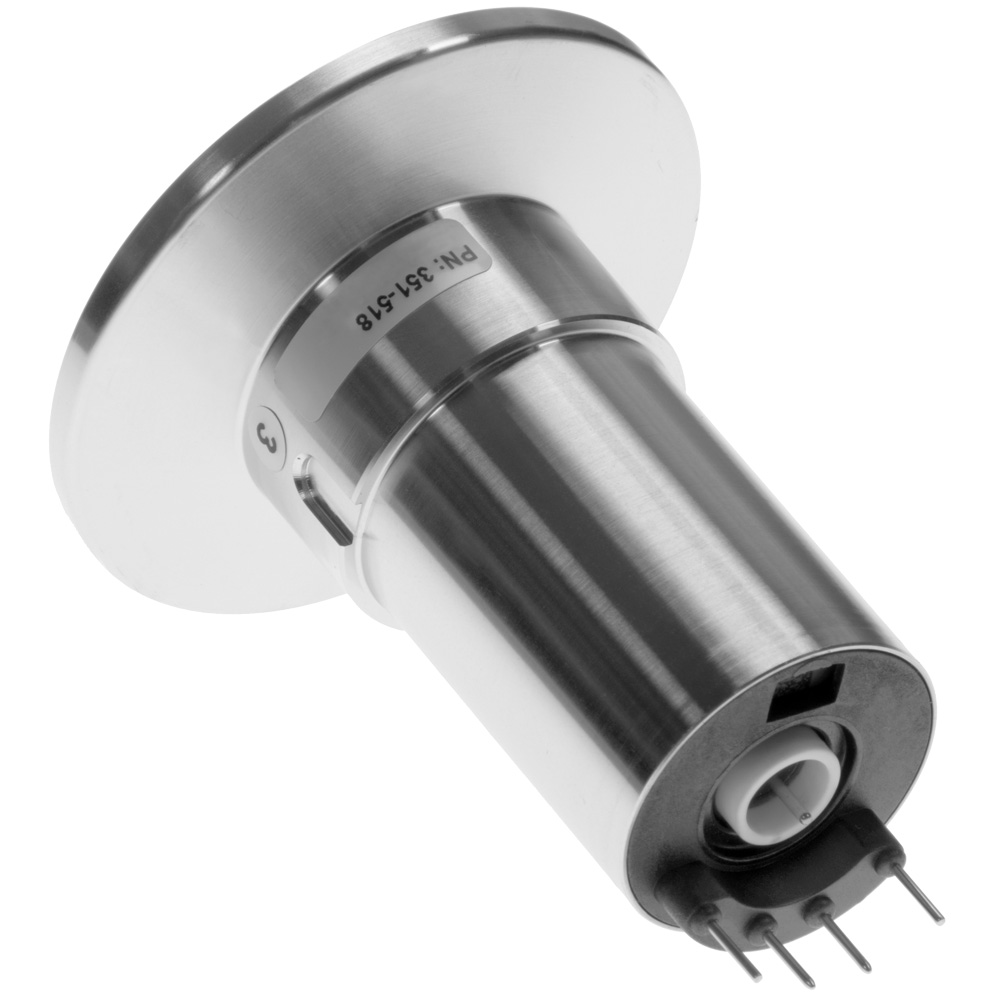

Inficon Gemini MPG500 Inverted Magnetron Cold Cathode/Pirani Combination Gauge Replacement Sensor, UHV, KF-40. PN: 351-518
Out of Stock


This is a replacement sensor for the Gemini MPG500 compact, Inverted Magnetron Pirani Gauge. This replacement sensor has a KF40 fitting. The MPG500 gauge measures from atmosphere to 1 x 10 Torr using a unique two sensor system which combines cold cathode and Pirani technology. Its unique, replaceable dual chamber sensor unit avoids cleaning cycles and eliminates maintenance, making Gemini the most robust and economical vacuum gauge of its kind. The Inficon Gemini MPG500 cold cathode and Pirani combination provides seamless transition, reliability, practicality and flexibility across wide ranging applications. The Gemini series of gauges has fully integrated digital electronics providing ultimate flexibility for system Integration. The Gemini MPG500 gauges have fast, reliable ignition, and the patented ultra-low magnetic stray field design opens up a whole new range of applications. EtherCAT, RS485 and RS232 communication options are available.

Condition: New



Product Number: P1012330



Price: $711.09



Inficon MPG400 FPM-Sealed Repair Kit, see parts included below, PN 351-998
In Stock: 3
Expecting: 1
Arrival: 1 on 2024-04-16


This is the Repair Kit ONLY for the MPG400 FPM Sealed Inverted Magnetron Pirani Gauge. Repair Kit Includes: Pirani Element, Support Ring, O-Ring FPM (3.69X1.78), O-Ring FPM 10.82X1.78, Ignition Aids and Anode Complete. For detailed instructions on how to replace MPG400/401 maintenance kit parts, see .pdf below, pages 17 thru 23. (This pricing is for the Repair Kit Only, pumps, controllers, sensors sold separately.)INFICON Inverted Magnetron Pirani Gauge Rebuild and Repair: For Services: CALL (505) 872-0037

Condition: New



Product Number: P104430



Price: $509.74



Inficon MPG400 FPM-sealed Maintenance Kit, includes support centering ring, seals, ignition aid
In Stock: 1


This is the kit ONLY for the MPG400 FPM Sealed Inverted Magnetron Pirani Gauge. Maintenance Kit Includes: Support Ring, 2 FPM O-Rings, Ignition aids. For detailed instructions on how to replace MPG400/401 maintenance kit parts, see .pdf below, pages 17 thru 23. (This pricing is for the Kit Only, pumps, controllers, sensors sold separately.)INFICON Inverted Magnetron Pirani Gauge Rebuild and Repair: For Services: CALL (505) 872-0037

Condition: New



Product Number: P104429



Price: $60.77



Inficon MPG401 Metal Seals, Repair Kit, see parts included below, PN 351-996
In Stock: 2

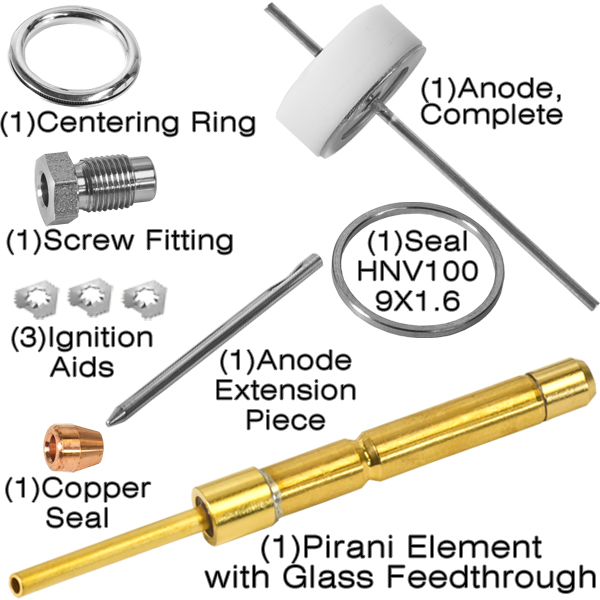

This is the Repair Kit ONLY for the MPG401 All Metal Seal, Inverted Magnetron Pirani Gauge. Repair Kit Includes: Pirani Element with glass feedthrough, screw fitting, copper seal, anode extension piece, anode complete, ignition aids, seal HNV100 and centering ring. For detailed instructions on how to replace MPG400/401 maintenance kit parts, see .pdf below, pages 17 thru 23. (This pricing is for the Repair Kit Only, pumps, controllers, sensors sold separately.)INFICON Inverted Magnetron Pirani Gauge Rebuild and Repair: For Services: CALL (505) 872-0037

Condition: New



Product Number: P104431



Price: $801.79



Inficon MPG401 Metal Seals, Maintenance Kit, see parts included below, PN 351-997
In Stock: 1


This is the Maintenance Kit ONLY for the MPG401 All Metal Seal, Inverted Magnetron Pirani Gauge. Maintenace Kit Includes: seal HNV100 (9X1.6), centering ring, ignition aids. For detailed instructions on how to replace MPG400/401 maintenance kit parts, see .pdf below, pages 17 thru 23. (This pricing is for the Repair Kit Only, pumps, controllers, sensors sold separately.)INFICON Inverted Magnetron Pirani Gauge Rebuild and Repair: For Services: CALL (505) 872-0037

Condition: New



Product Number: P104432



Price: $272.10



Inficon MPG400/401 Magnetron Pirani Gauge, Iginiton Aids set of 10, PN 351-995
Out of Stock
Expecting: 1
Arrival: 1 on 2024-05-17


This is a set of 10 Ignition Aids for the Inverted Magnetron Pirani Gauge MPG400, MPG401. For detailed instructions on how to replace MPG400/401 maintenance kit parts, see .pdf below, pages 17 thru 23. (This pricing is for the Ignition Aids Only, pumps, controllers, sensors sold separately.)INFICON Inverted Magnetron Pirani Gauge Rebuild and Repair: For Services: CALL (505) 872-0037

Condition: New



Product Number: P104433



Price: $68.93

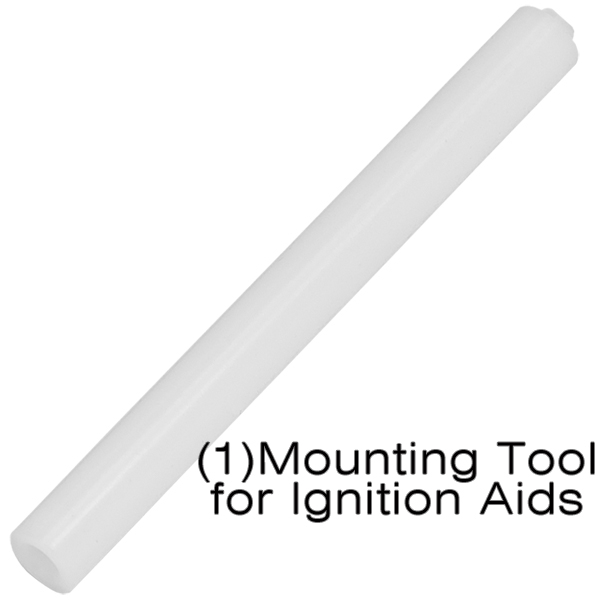

Inficon MPG400, MPG401, Magnetron Pirani Gauge Mounting Tool for Ignition Aids PN 351-994
In Stock: 9


This is a Mounting tool to replace the Ignition Aids for the Inverted Magnetron Pirani Gauge MPG400, MPG401. For detailed instructions on how to replace MPG400/401 maintenance kit parts, see .pdf below, pages 17 thru 23. (This pricing is for the Mounting Tool Only, pumps, controllers, sensors sold separately.)INFICON Inverted Magnetron Pirani Gauge Rebuild and Repair: For Services: CALL (505) 872-0037

Condition: New



Product Number: P104434



Price: $29.03
