Condition:
  New
Part Number:
  P1011698
Warranty:
  Against Product Defect

Available Now:
2  

RoHS Compliance Sticker


$1,527.95


Print Version

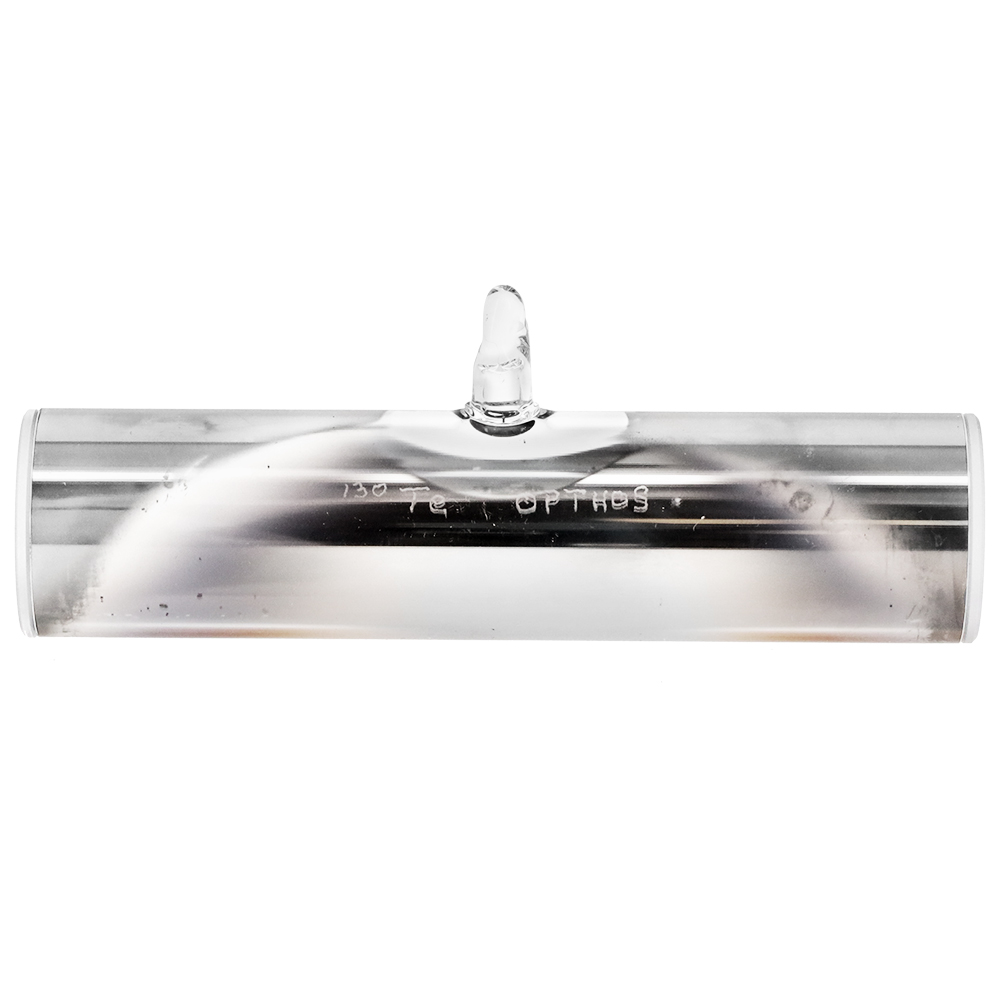

Isotopic Tellurium 130 Reference Cell, 130Te2, 25 mm Diameter, 100 mm Length


Isotopic Tellurium 130 (130Te2) Reference Cell.

These flame-sealed cells contain a small amount of isotopically pure Tellurium 130 (130Te2) under vacuum. The cells must be heated to about 550°C to obtain proper vapor pressure of Tellurium 130. Mirrored surfaces will clarify as the Tellurium vaporizes at elevated temperature. They are used for calibration of tunable lasers in the range of 18520-23810 cm-1 (420-540 nm).

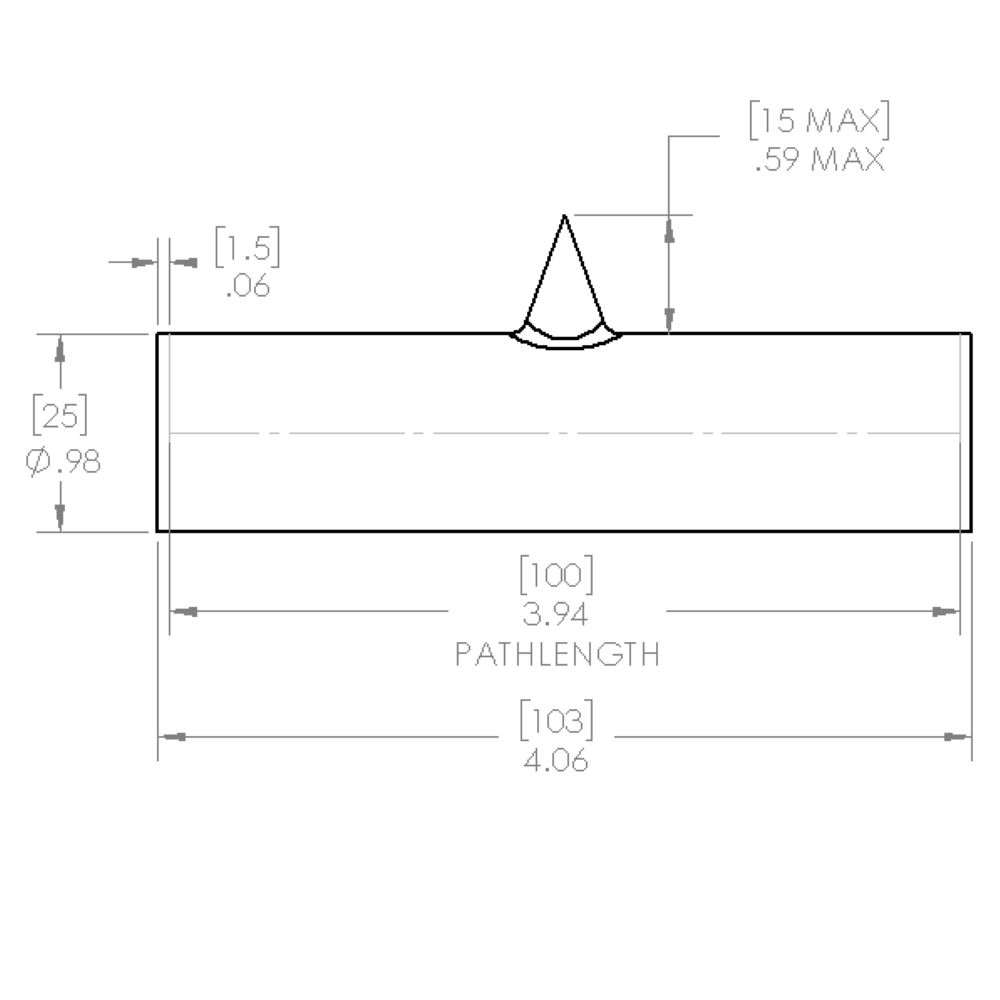

The quartz cell body is cylindrical in shape; outer diameter 25 mm; length 100 mm. The tipoff stem is centered on the cell, protruding not more than 15 mm from the cell body.



Press ESC to Close


PDF Logo RoHS Compliance Download

PDF Logo Ideal Vacuum Company Overview Brochure.pdf

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

E-drawing LogoeDrawings Viewer For Windows
E-drawing LogoeDrawings Viewer For MAC.
