Condition:
  New
Part Number:
  P1010665
Warranty:
  Against Product Defect
Out of Stock  

RoHS Compliance Sticker


$3,270.10


Print Version

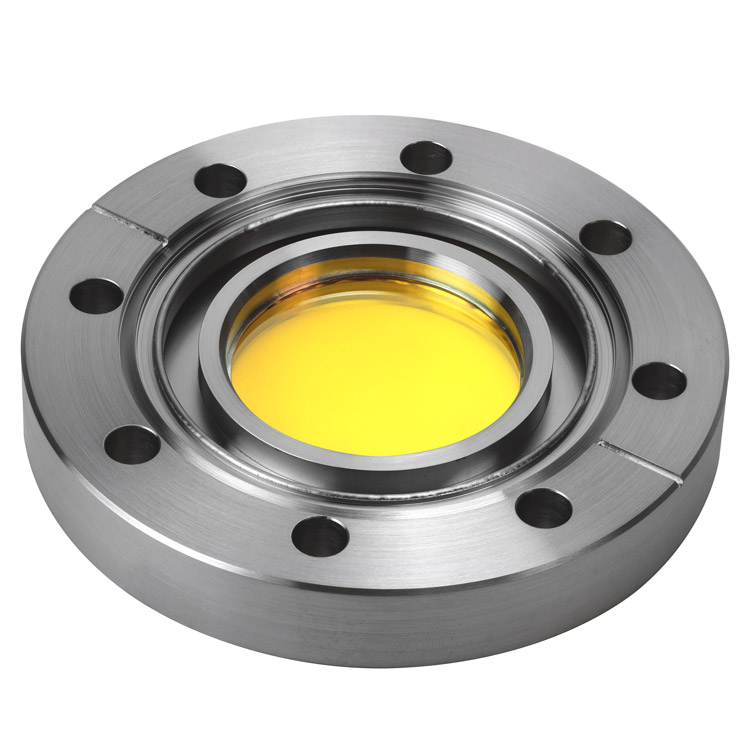

Laser Viewport, Zinc Selenide, Zero Length 4.5 inch Conflat Flange (CF-4.5 in.), UHV Grade, ZnSe, 1.9" Viewport Diameter, 304 SS


Zinc Selenide Laser Viewport for Transmitting Infrared Light, CF-4.5 in., UHV Grade, 1.9" Viewport Diameter, Zero-Length, 304 SS

For many MWIR (Mid-Wave Infrared) to IR applications requiring broad range transmission of infrared (IR) light, these zero-length viewports offer low absorptivity of wavelengths up to 16 microns. Importantly, these ZnSe viewports are highly resistant to thermal shocks rendering them ideal for high power applications using CO2 laser systems. Additionally, these viewports allow some transmission of visible light, making fine tuning of optical aligments and interior components using combination CO2-HeNe lasers simple and easy.

Zinc Selenide Viewport Transmission Curve
Unless treated with strong acids, ZnSe is chemically stable and non-hygroscopic and safe to use in many industrial, field, and laboratory applications. This substrate scratches easily and should be handled with care. When handling optics, always wear soft, non-absorbent, lint-free gloves. Never use ultrasonic cleaning methods to treat ZnZe viewports. Please observe the following procedure when cleaning these viewports:

• Always start by blowing off window first with clean, dry compressed air. This will remove any potentially hard, gritty dust that could cause scratching during cleaning.
• Always use a solvent-dampened swab to wipe clean a window, a dry swab can potentially scratch a window and in any event will leave more than it cleans if not damp.
• Excess solvent should be flung off by a flip of the wrist. If the swab is heavily soaked with solvent, the window will rapidly chill due to solvent evaporation; this will result in water condensation from the air. It may cause spotting or delays in cleaning. It is best to flip off the excess before touching the window with the swab. Alternatively, one can daub the swab on a piece of lint-free tissue to partially remove solvent.
• Compressed air in a can, if tipped upside down or violently shaken, will cause solvent to spray out with the air. No canned duster is perfect. Occasionally some solvent will contaminate the window. The best solution is to use a regulated supply of commercial dry compressed nitrogen gas from a welding gas supply company.
• Always handle the window with protected hands. Powder-free vinyl gloves work best; but, if touched with acetone they can dissolve and leave residue on the window. One should carefully avoid contacting the cleaning swab directly with the glove during the cleaning procedure.


Press ESC to Close


PDF Logo RoHS Compliance Download

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

E-drawing LogoeDrawings Viewer For Windows
E-drawing LogoeDrawings Viewer For MAC.
