Condition:
  New
Part Number:
  P103355
Warranty:
  Against Product Defect

Available Now:
5  

RoHS Compliance Sticker


$85.95


Print Version

Leybold Adapter KF-10 to 3/8 inch G BSPP for Connections to Vacuum Pumps. PN: 88630


Leybold Adapter KF10 to 3/8 inch G BSPP, for Connections to Vacuum Pumps with G BSPP Straight Threads.
Leybold Part Number: 88630.

Many diaphragm and small vacuum pumps come with G BSPP intake and exhaust thread ports. These 3/8 Inch G to KF-10 fitting adapters convert "G" BSPP thread to a KF-10 flange which is more commonly used in the universal world wide vacuum market. This thread size is primarily used in Europe and Great Britain.

BSPP = British Standard Pipe Parallel (straight thread) and is often noted G, for example, G(3/8).

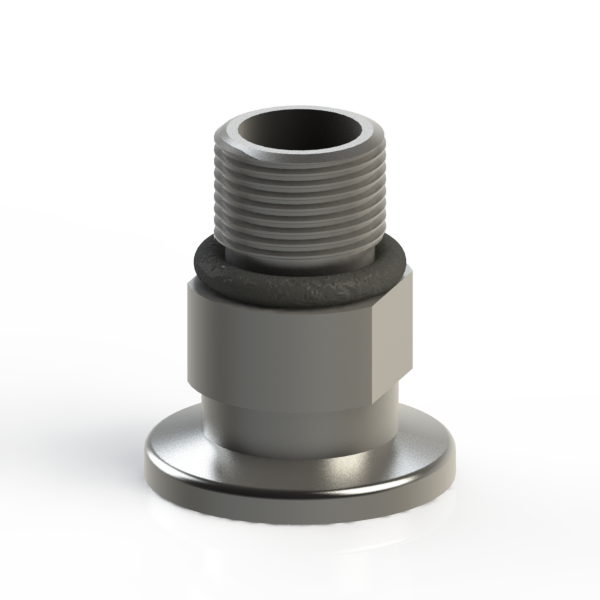

Adapter KF-10 Flange to 3/8 inch Male BSPP Thread (British Standard Pipe Parallel), Stainless Steel
Common Dimensions:
A = 1-3/16 inch (30mm)
B = 5/8 inch (16mm)
C = 1/2 inch (12mm)
D = 1-3/8 inch (35mm)

These KF10 adapters screw into pump inlet and or exhaust for easy connection to standard ISO KF or NW roughing line fittings.



Press ESC to Close


PDF Logo RoHS Compliance Download

CAD Picture

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

E-drawing LogoeDrawings Viewer For Windows
E-drawing LogoeDrawings Viewer For MAC.
