Condition:
  New
Part Number:
  P103323
Warranty:
  Leybold Warranty

Available Now:
2  



$11,473.15


Regular Price: $12,077.00

On Sale Flyer
Print Version

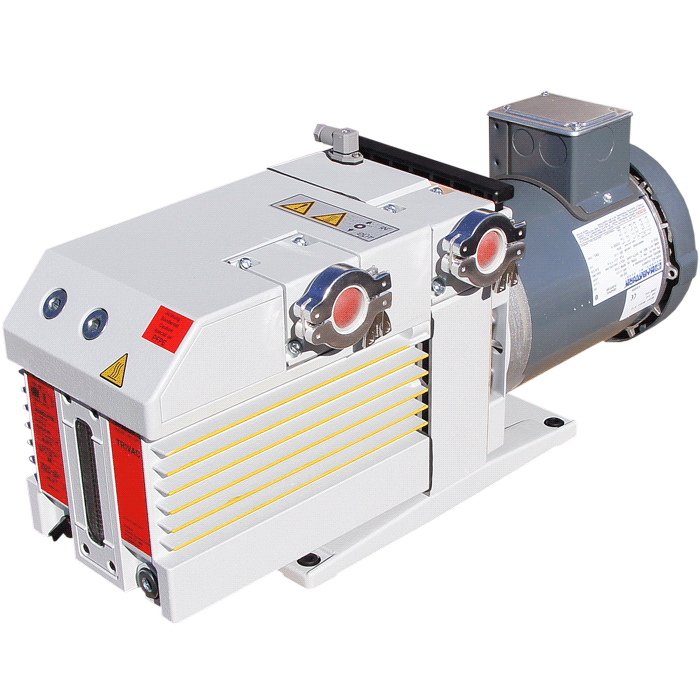

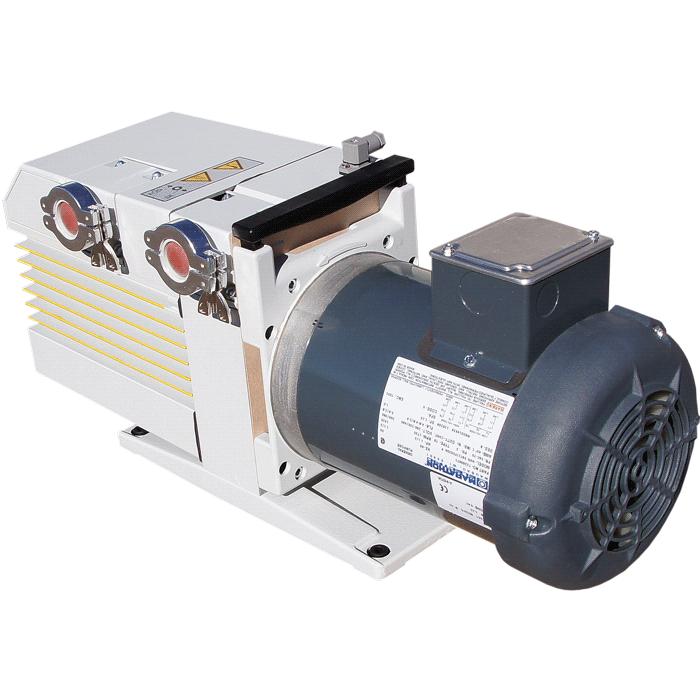

Leybold D25BCS TriVac PFPE Chemical Series Vacuum Pumps, 20.9 CFM, 3-Phase, (OLD PN: 91379-3) 11379


NEW Leybold D25 D25BCS PFPE Chemical BCS Trivac Rotary Vane Mechanical Vacuum Pump, 20.9 CFM, 3-Phase, 208-230/460VAC 60Hz, 200-220/380VAC 50Hz, NEMA, LV PN 91379-3

The NEW Leybold D25 D25BCS PFPE Chemical BCS Trivac is especially prepared for operation with PFPE Oils. The use of PFPE Synthetic lubricants offers superior characteristics where chemical and oxidizing influences occur. The Leybold D25 D25BCS PFPE BCS dual stage rotary vane mechanical vacuum pump offers an excellent ultimate pressure of 1x10-4 Torr. These pumps are commonly used for pumping of corrosive or aggressive media, backing turbomolecular pumps, backing diffusion pumps, backing roots pumps, turbo or cryo pumps, rotary evaporation, refrigeration system evacuation, epoxy degassing, vacuum sterilization, backing mass spectrometers, freeze drying, vacuum centrifugal applications, vacuum distillation, space research, and other vacuum processes. These Leybold D25 D25BCS PFPE Chemical BCS vacuum pumps have a pumping speed displacement of 20.9 CFM and operate on 3-Phase, 208-230/460VAC 60Hz, 200-220/380VAC 50Hz, NEMA. This pump is BRAND NEW and a stocked inventoried item that comes with a manufacture warranty. Parts, oils and accesories for this pump are located on this website. For operating instructions download .PDF below at AVAILABLE DOWNLOADS.


Leybold D25BCS-PFPE - 20.9 CFM, 200-230V, 60/50 Hz, 1-Phase NEMA plug, 2009 List Pirce 7,251USD, Item Number 91379-2
Leybold D25BCS-PFPE - 20.9 CFM, 208-230/460/3/60, 200-220/380/3-Phase/50, NEMA, 2009 List Pirce 7,251USD, Item Number 91379-3



Press ESC to Close


Optional Accessories:
ITEMS MODEL PART NUMBER
Roots pump Adatper *** ***
Exhaust Filter with Lubricant Return ARS 16-25 18956
Condensation Trap AK 16-25 18811
Chemical Filter with Safety Isolation Valve CFS 16-25 10176
Inert Gas System IGS 16-25 16176
Limit Switch System LSS 16-25 16106
Electrical Indicator System EIS 16-25 16096
Seal Kit 16-25 BCS PFPE 19741


PDF Logo Leybold Trivac D16BCS, D25BCS Rotary Vane Vacuum Pumps Operating Instructions.pdf
