Condition:
  New
Part Number:
  P102343
Warranty:
  Leybold Warranty

Available Now:
2  



$18,669.40


Regular Price: $19,652.00

On Sale Flyer
Print Version

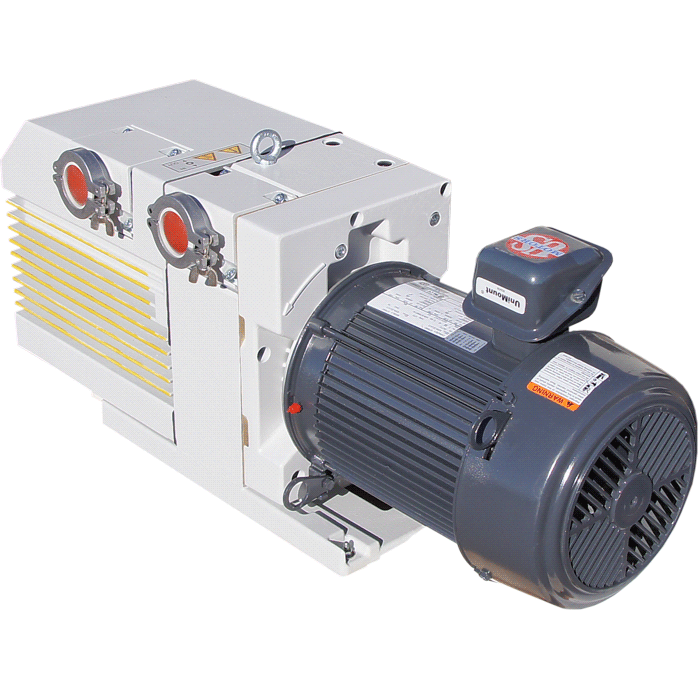

Leybold D65BCS TriVac PFPE Chemical Series Vacuum Pumps, 53 CFM, 3-Phase, PN: 11399


NEW Leybold D65 D65BCS PFPE Chemical BCS Trivac Rotary Vane Mechanical Vacuum Pump, 53 CFM, 3-Phase
208-230/460 VAC 60 Hz, 200-220/380 50 Hz, NEMA, LV PN 91399-2 (OLD PN: 91399-2)

The New Leybold D65 D65BCS PFPE Chemical BCS Trivac is especially prepared for operation with PFPE Oils. The use of PFPE Synthetic lubricants offers superior characteristics where chemical and oxidizing influences occur. The Leybold D65 D65BCS PFPE BCS dual stage rotary vane mechanical vacuum pump offers an excellent ultimate pressure of 1x10-4 Torr. These pumps are commonly used for pumping of corrosive or aggressive media, backing turbomolecular pumps, backing diffusion pumps, backing roots pumps, turbo or cryo pumps, rotary evaporation, refrigeration system evacuation, epoxy degassing, vacuum sterilization, backing mass spectrometers, freeze drying, vacuum centrifugal applications, vacuum distillation, space research, and other vacuum processes. These Leybold D65 D65BCS PFPE Chemical BCS vacuum pumps have a pumping speed displacement of 53 CFM, 3-Phase, 208-230/460 VAC 60 Hz, 200-220/380 50 Hz, NEMA. This pump is BRAND NEW and a stocked inventoried item that comes with a manufacture warranty. Parts, oils and accesories for this pump are located on this website. For operating instructions download .PDF below at AVAILABLE DOWNLOADS.


Leybold D 65 BCS-PFPE - 53 CFM, 208-230/460/3-Phase/60, 200-220/3-Phase/50, NEMA, 2009 List Pirce 14,021USD, Item Number 91399-2



Press ESC to Close


Optional Accessories :
Items Model Part Number
Roots pump Adatper *** 16830
Exhaust Filter with Lubricant Return ARS 40-65 18957
Condensation Trap AK 40-65 18816
Chemical Filter with Safety Isolation Valve CFS 40-65 10177
Inert Gas System IGS 40-65 16177
Limit Switch System LSS 40-65 16107
Electrical Indicator System EIS 40-65 16097
Seal Kit 40-65 BCS PFPE 19742


PDF Logo Leybold Trivac D40BCS, D65BCS Rotary Vane Vacuum Pumps Operating Instructions.pdf
