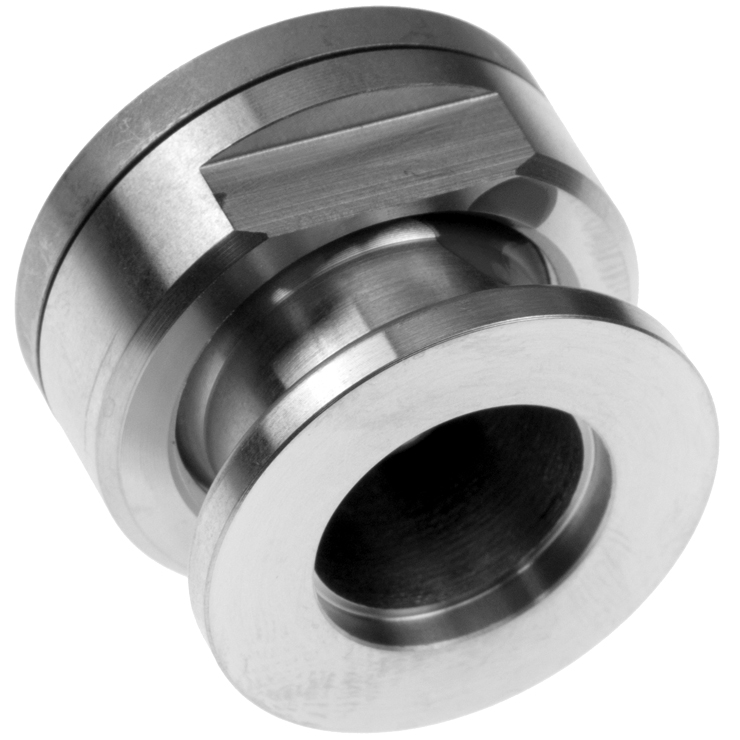

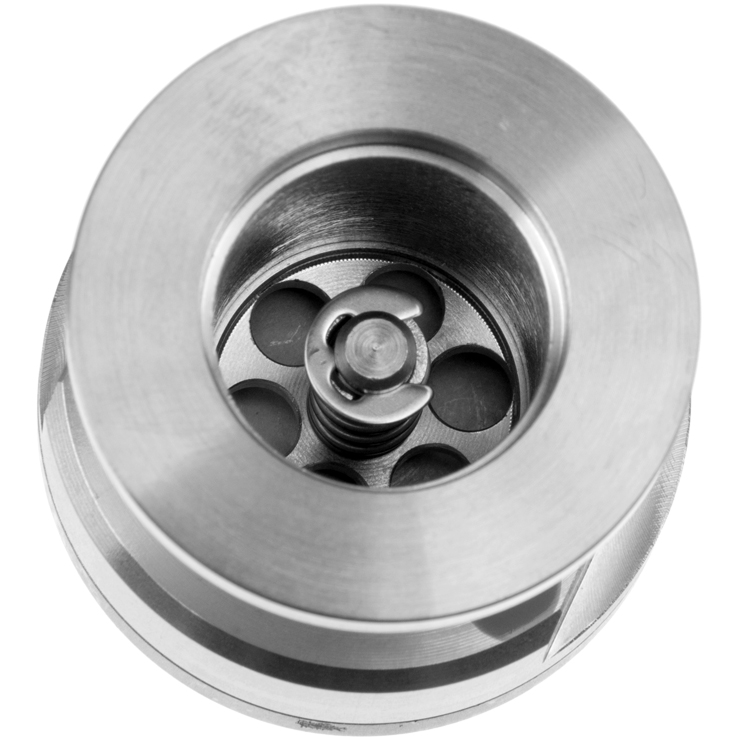

Leybold Pressure Relief Valve, KF16, Stainless Steel.
Leybold Part Number: 89039
The DN 16 ISO-KF valves are pressure relief valves for use in pumps and small to mid-range vacuum systems. They serve the purpose to prevent the build-up of overpressures >1150 mbar. Technical details on the relevant opening pressures and serial numbers are printed onto the valve.
The valve opens at pressures above 1150 ±40 mbar. If the pressure inside the vacuum system is below 1150 mbar, the valve remains closed.

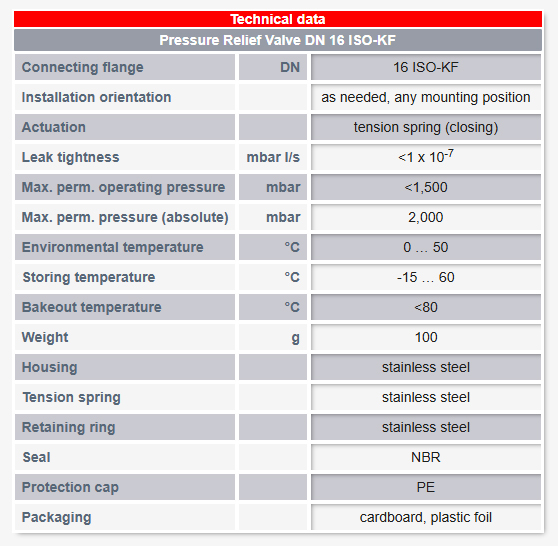

Measuring just 32mm in diameter and 28mm tall, the compact Leybold pressure Relief Valve has a leak rate of less than 1.0 x 10-8 mbar l/s, a responding pressure of 1150 ± 40 mbar. It is suitable for pipeline mounting.
