This is a manually operated 90° right angle Ideal Vacuum Super-Seal bellows valve with Conflat CF 1.33" (1-1/3") flanges on the inlet and outlet ports. Conflat flanged Super-Seal valves have rotatable flanges for optimal connectivity to vacuum lines. This valve is rated for ultra-high-vacuum use (10 Torr) and can be used up to the 60-80 psig positive pressure range. These Super-Seal valves have a leak rate of 10 Torr l/s (He). All ultra-high vacuum rated Super-Seal valves use 304L stainless steel for the valve body and mechanism, OFHC copper gaskets for the bonnet seal, and Viton® poppet seal O-rings. These valves operate with low friction and zero abrasion of the polymer elastomer surface allowing for repeatable sealing action over many thousands of cycles. Super-Seal valves provide high-conductance to maximize the evacuated gas flow rate. These valves are bakeable up to 150°C (limited by the Viton O-rings) and can withstand a maximum differential pressure of up to 15 psig. They can be mounted in any orientation.

This is a manually operated 180° in-line Ideal Vacuum Super-Seal bellows valve with Conflat CF 1.33" (1-1/3") flanges on the inlet and outlet ports. Conflat flanged Super-Seal valves have rotatable flanges for optimal connectivity to vacuum lines. This valve is rated for high-vacuum use (10 Torr) and can be used up to the 60-80 psig positive pressure range. These Super-Seal valves have a leak rate of 10 Torr l/s (He). All high-vacuum rated Super-Seal valves use 304L stainless steel for the valve body and mechanism, and Viton® bonnet and poppet seal O-rings. These valves operate with low friction and zero abrasion of the polymer elastomer surface allowing for repeatable sealing action over many thousands of cycles. Super-Seal valves provide high-conductance to maximize the evacuated gas flow rate. These valves are bakeable up to 150°C (limited by the Viton O-rings) and can withstand a maximum differential pressure of up to 15 psig. They can be mounted in any orientation.

This is a manually operated 180° in-line Ideal Vacuum Super-Seal bellows valve with Conflat CF 1.33" (1-1/3") flanges on the inlet and outlet ports. Conflat flanged Super-Seal valves have rotatable flanges for optimal connectivity to vacuum lines. This valve is rated for ultra-high-vacuum use (10 Torr) and can be used up to the 60-80 psig positive pressure range. These Super-Seal valves have a leak rate of 10 Torr l/s (He). All ultra-high vacuum rated Super-Seal valves use 304L stainless steel for the valve body and mechanism, OFHC copper gaskets for the bonnet seal, and Viton® poppet seal O-rings. These valves operate with low friction and zero abrasion of the polymer elastomer surface allowing for repeatable sealing action over many thousands of cycles. Super-Seal valves provide high-conductance to maximize the evacuated gas flow rate. These valves are bakeable up to 150°C (limited by the Viton O-rings) and can withstand a maximum differential pressure of up to 15 psig. They can be mounted in any orientation.

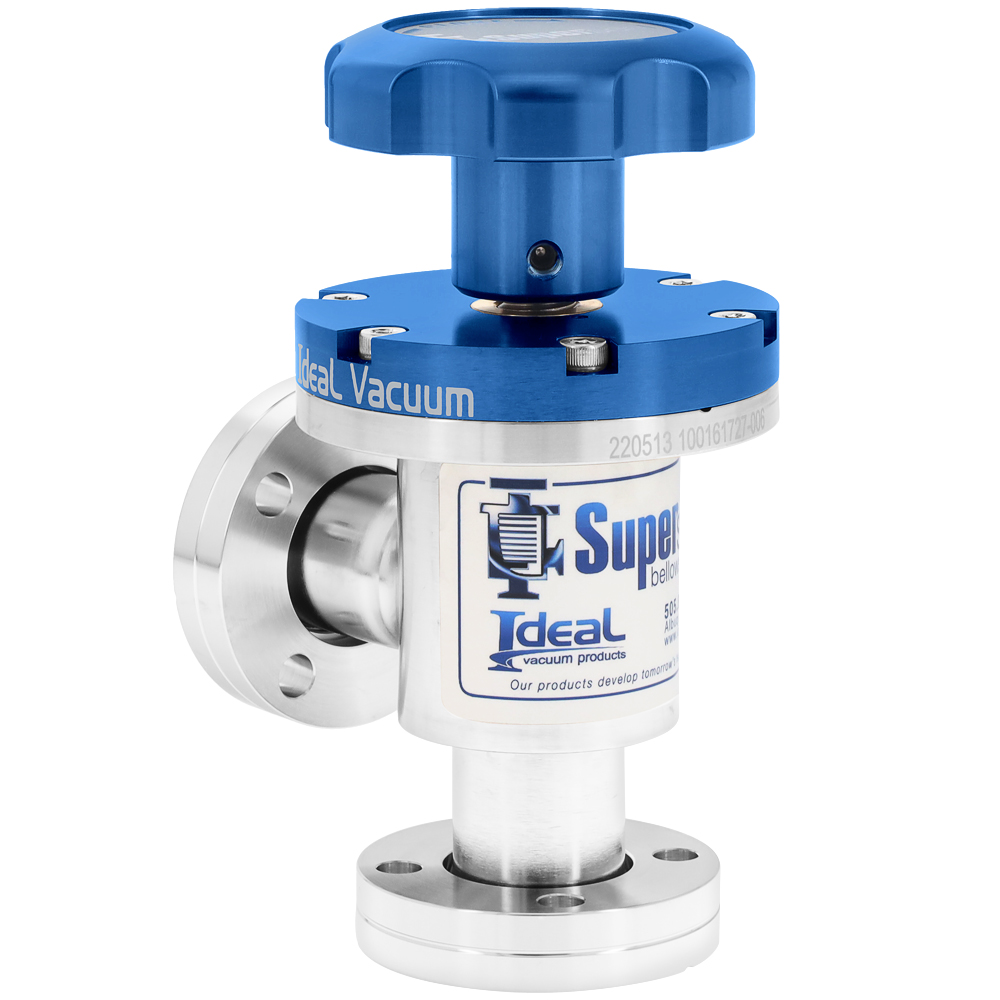

This is a manually operated 90° right angle Ideal Vacuum Super-Seal bellows valve with Conflat CF 2.12" (2-1/8") flanges on the inlet and outlet ports. Conflat flanged Super-Seal valves have rotatable flanges for optimal connectivity to vacuum lines. This valve is rated for high-vacuum use (10 Torr) and can be used up to the 60-80 psig positive pressure range. These Super-Seal valves have a leak rate of 10 Torr l/s (He). All high-vacuum rated Super-Seal valves use 304L stainless steel for the valve body and mechanism, and Viton® bonnet and poppet seal O-rings. These valves operate with low friction and zero abrasion of the polymer elastomer surface allowing for repeatable sealing action over many thousands of cycles. Super-Seal valves provide high-conductance to maximize the evacuated gas flow rate. These valves are bakeable up to 150°C (limited by the Viton O-rings) and can withstand a maximum differential pressure of up to 15 psig. They can be mounted in any orientation.

This is a manually operated 90° right angle Ideal Vacuum Super-Seal bellows valve with Conflat CF 2.12" (2-1/8") flanges on the inlet and outlet ports. Conflat flanged Super-Seal valves have rotatable flanges for optimal connectivity to vacuum lines. This valve is rated for ultra-high-vacuum use (10 Torr) and can be used up to the 60-80 psig positive pressure range. These Super-Seal valves have a leak rate of 10 Torr l/s (He). All ultra-high vacuum rated Super-Seal valves use 304L stainless steel for the valve body and mechanism, OFHC copper gaskets for the bonnet seal, and Viton® poppet seal O-rings. These valves operate with low friction and zero abrasion of the polymer elastomer surface allowing for repeatable sealing action over many thousands of cycles. Super-Seal valves provide high-conductance to maximize the evacuated gas flow rate. These valves are bakeable up to 150°C (limited by the Viton O-rings) and can withstand a maximum differential pressure of up to 15 psig. They can be mounted in any orientation.

This is a manually operated 180° in-line Ideal Vacuum Super-Seal bellows valve with Conflat CF 2.12" (2-1/8") flanges on the inlet and outlet ports. Conflat flanged Super-Seal valves have rotatable flanges for optimal connectivity to vacuum lines. This valve is rated for high-vacuum use (10 Torr) and can be used up to the 60-80 psig positive pressure range. These Super-Seal valves have a leak rate of 10 Torr l/s (He). All high-vacuum rated Super-Seal valves use 304L stainless steel for the valve body and mechanism, and Viton® bonnet and poppet seal O-rings. These valves operate with low friction and zero abrasion of the polymer elastomer surface allowing for repeatable sealing action over many thousands of cycles. Super-Seal valves provide high-conductance to maximize the evacuated gas flow rate. These valves are bakeable up to 150°C (limited by the Viton O-rings) and can withstand a maximum differential pressure of up to 15 psig. They can be mounted in any orientation.

This is a manually operated 180° in-line Ideal Vacuum Super-Seal bellows valve with Conflat CF 2.12" (2-1/8") flanges on the inlet and outlet ports. Conflat flanged Super-Seal valves have rotatable flanges for optimal connectivity to vacuum lines. This valve is rated for ultra-high-vacuum use (10 Torr) and can be used up to the 60-80 psig positive pressure range. These Super-Seal valves have a leak rate of 10 Torr l/s (He). All ultra-high vacuum rated Super-Seal valves use 304L stainless steel for the valve body and mechanism, OFHC copper gaskets for the bonnet seal, and Viton® poppet seal O-rings. These valves operate with low friction and zero abrasion of the polymer elastomer surface allowing for repeatable sealing action over many thousands of cycles. Super-Seal valves provide high-conductance to maximize the evacuated gas flow rate. These valves are bakeable up to 150°C (limited by the Viton O-rings) and can withstand a maximum differential pressure of up to 15 psig. They can be mounted in any orientation.

This is a manually operated 90° right angle Ideal Vacuum Super-Seal bellows valve with Conflat CF 2.75" (2-3/4") flanges on the inlet and outlet ports. Conflat flanged Super-Seal valves have rotatable flanges for optimal connectivity to vacuum lines. This valve is rated for ultra-high-vacuum use (10 Torr) and can be used up to the 60-80 psig positive pressure range. These Super-Seal valves have a leak rate of 10 Torr l/s (He). All ultra-high vacuum rated Super-Seal valves use 304L stainless steel for the valve body and mechanism, OFHC copper gaskets for the bonnet seal, and Viton® poppet seal O-rings. These valves operate with low friction and zero abrasion of the polymer elastomer surface allowing for repeatable sealing action over many thousands of cycles. Super-Seal valves provide high-conductance to maximize the evacuated gas flow rate. These valves are bakeable up to 150°C (limited by the Viton O-rings) and can withstand a maximum differential pressure of up to 15 psig. They can be mounted in any orientation.

This is a manually operated 180° in-line Ideal Vacuum Super-Seal bellows valve with Conflat CF 2.75" (2-3/4") flanges on the inlet and outlet ports. Conflat flanged Super-Seal valves have rotatable flanges for optimal connectivity to vacuum lines. This valve is rated for high-vacuum use (10 Torr) and can be used up to the 60-80 psig positive pressure range. These Super-Seal valves have a leak rate of 10 Torr l/s (He). All high-vacuum rated Super-Seal valves use 304L stainless steel for the valve body and mechanism, and Viton® bonnet and poppet seal O-rings. These valves operate with low friction and zero abrasion of the polymer elastomer surface allowing for repeatable sealing action over many thousands of cycles. Super-Seal valves provide high-conductance to maximize the evacuated gas flow rate. These valves are bakeable up to 150°C (limited by the Viton O-rings) and can withstand a maximum differential pressure of up to 15 psig. They can be mounted in any orientation.

This is a manually operated 180° in-line Ideal Vacuum Super-Seal bellows valve with Conflat CF 2.75" (2-3/4") flanges on the inlet and outlet ports. Conflat flanged Super-Seal valves have rotatable flanges for optimal connectivity to vacuum lines. This valve is rated for ultra-high-vacuum use (10 Torr) and can be used up to the 60-80 psig positive pressure range. These Super-Seal valves have a leak rate of 10 Torr l/s (He). All ultra-high vacuum rated Super-Seal valves use 304L stainless steel for the valve body and mechanism, OFHC copper gaskets for the bonnet seal, and Viton® poppet seal O-rings. These valves operate with low friction and zero abrasion of the polymer elastomer surface allowing for repeatable sealing action over many thousands of cycles. Super-Seal valves provide high-conductance to maximize the evacuated gas flow rate. These valves are bakeable up to 150°C (limited by the Viton O-rings) and can withstand a maximum differential pressure of up to 15 psig. They can be mounted in any orientation.

This is a manually operated 90° right angle Ideal Vacuum Super-Seal bellows valve with Conflat CF 3.38" (3-3/8") flanges on the inlet and outlet ports. Conflat flanged Super-Seal valves have rotatable flanges for optimal connectivity to vacuum lines. This valve is rated for high-vacuum use (10 Torr) and can be used up to the 60-80 psig positive pressure range. These Super-Seal valves have a leak rate of 10 Torr l/s (He). All high-vacuum rated Super-Seal valves use 304L stainless steel for the valve body and mechanism, and Viton® bonnet and poppet seal O-rings. These valves operate with low friction and zero abrasion of the polymer elastomer surface allowing for repeatable sealing action over many thousands of cycles. Super-Seal valves provide high-conductance to maximize the evacuated gas flow rate. These valves are bakeable up to 150°C (limited by the Viton O-rings) and can withstand a maximum differential pressure of up to 15 psig. They can be mounted in any orientation.

This is a manually operated 90° right angle Ideal Vacuum Super-Seal bellows valve with Conflat CF 3.38" (3-3/8") flanges on the inlet and outlet ports. Conflat flanged Super-Seal valves have rotatable flanges for optimal connectivity to vacuum lines. This valve is rated for ultra-high-vacuum use (10 Torr) and can be used up to the 60-80 psig positive pressure range. These Super-Seal valves have a leak rate of 10 Torr l/s (He). All ultra-high vacuum rated Super-Seal valves use 304L stainless steel for the valve body and mechanism, OFHC copper gaskets for the bonnet seal, and Viton® poppet seal O-rings. These valves operate with low friction and zero abrasion of the polymer elastomer surface allowing for repeatable sealing action over many thousands of cycles. Super-Seal valves provide high-conductance to maximize the evacuated gas flow rate. These valves are bakeable up to 150°C (limited by the Viton O-rings) and can withstand a maximum differential pressure of up to 15 psig. They can be mounted in any orientation.

This is a manually operated 180° in-line Ideal Vacuum Super-Seal bellows valve with Conflat CF 3.38" (3-3/8") flanges on the inlet and outlet ports. Conflat flanged Super-Seal valves have rotatable flanges for optimal connectivity to vacuum lines. This valve is rated for high-vacuum use (10 Torr) and can be used up to the 60-80 psig positive pressure range. These Super-Seal valves have a leak rate of 10 Torr l/s (He). All high-vacuum rated Super-Seal valves use 304L stainless steel for the valve body and mechanism, and Viton® bonnet and poppet seal O-rings. These valves operate with low friction and zero abrasion of the polymer elastomer surface allowing for repeatable sealing action over many thousands of cycles. Super-Seal valves provide high-conductance to maximize the evacuated gas flow rate. These valves are bakeable up to 150°C (limited by the Viton O-rings) and can withstand a maximum differential pressure of up to 15 psig. They can be mounted in any orientation.

This is a manually operated 180° in-line Ideal Vacuum Super-Seal bellows valve with Conflat CF 3.38" (3-3/8") flanges on the inlet and outlet ports. Conflat flanged Super-Seal valves have rotatable flanges for optimal connectivity to vacuum lines. This valve is rated for ultra-high-vacuum use (10 Torr) and can be used up to the 60-80 psig positive pressure range. These Super-Seal valves have a leak rate of 10 Torr l/s (He). All ultra-high vacuum rated Super-Seal valves use 304L stainless steel for the valve body and mechanism, OFHC copper gaskets for the bonnet seal, and Viton® poppet seal O-rings. These valves operate with low friction and zero abrasion of the polymer elastomer surface allowing for repeatable sealing action over many thousands of cycles. Super-Seal valves provide high-conductance to maximize the evacuated gas flow rate. These valves are bakeable up to 150°C (limited by the Viton O-rings) and can withstand a maximum differential pressure of up to 15 psig. They can be mounted in any orientation.

This is a manually operated 90° right angle Ideal Vacuum Super-Seal bellows valve with Conflat CF 4.5" (4-1/2") flanges on the inlet and outlet ports. Conflat flanged Super-Seal valves have rotatable flanges for optimal connectivity to vacuum lines. This valve is rated for ultra-high-vacuum use (10 Torr) and can be used up to the 60-80 psig positive pressure range. These Super-Seal valves have a leak rate of 10 Torr l/s (He). All ultra-high vacuum rated Super-Seal valves use 304L stainless steel for the valve body and mechanism, OFHC copper gaskets for the bonnet seal, and Viton® poppet seal O-rings. These valves operate with low friction and zero abrasion of the polymer elastomer surface allowing for repeatable sealing action over many thousands of cycles. Super-Seal valves provide high-conductance to maximize the evacuated gas flow rate. These valves are bakeable up to 150°C (limited by the Viton O-rings) and can withstand a maximum differential pressure of up to 15 psig. They can be mounted in any orientation.

This minor rebuild kit is for the Ideal Vacuum Super-Seal manual bellows valve. It consists of the bonnet and poppet Viton O-ring seals needed to conduct a minor service on the valve. This kit has item numbers 6 and 9 from the detailed graphic below (exploded view). If you require a major kit please see part number P106154. This minor rebuild kit is for manually operated Super-Seal valves with these inlet/outlet ports:0.75 in. welded tube1.0 in. welded tubeConflat CF 1.33 in.Conflat CF 2.21 in.

This major rebuild kit is for the Ideal Vacuum Super-Seal manual bellows valve New Style (Blue Bonnet Plate). This kit contains replacements for all the parts which make up the valve except the hand wheel and valve body. This kit has item numbers 2 through 9 from the detailed graphic below (exploded view). If you require a minor kit which consists of just the bonnet and poppet O-ring seals, please see part number P106157. This major rebuild kit is for manually operated Super-Seal valves with these inlet/outlet ports:0.75 in. welded tube1.0 in. welded tubeConflat CF 1.33 in.Conflat CF 2.21 in.

This minor rebuild kit is for the Ideal Vacuum Super-Seal manual bellows valve. It consists of the bonnet and poppet Viton O-ring seals needed to conduct a minor service on the valve. This kit has item numbers 6 and 9 from the detailed graphic below (exploded view). If you require a major kit please see part number P106155. This minor rebuild kit is for manually operated Super-Seal valves with these inlet/outlet ports:1.5 in. welded tubeConflat CF 2.75 in.

This major rebuild kit is for the Ideal Vacuum Super-Seal manual bellows valve Old Style (Black Bonnet Plate). This kit contains replacements for all the parts which make up the valve except the hand wheel and valve body. This kit has item numbers 2 through 9 from the detailed graphic below (exploded view). If you require a minor kit which consists of just the bonnet and poppet O-ring seals, please see part number P106158. This major rebuild kit is for manually operated Super-Seal valves with these inlet/outlet ports:1.5 in. welded tubeConflat CF 2.75 in.

This minor rebuild kit is for the Ideal Vacuum Super-Seal manual bellows valve. It consists of the bonnet and poppet Viton O-ring seals needed to conduct a minor service on the valve. This kit has item numbers 6 and 9 from the detailed graphic below (exploded view). If you require a major kit please see part number P106156. This minor rebuild kit is for manually operated Super-Seal valves with these inlet/outlet ports:2.0 in. welded tubeConflat CF 3.38 in.

This major rebuild kit is for the Ideal Vacuum Super-Seal manual bellows valve Old Style (Black Bonnet Plate). This kit contains replacements for all the parts which make up the valve except the hand wheel and valve body. This kit has item numbers 2 through 9 from the detailed graphic below (exploded view). If you require a minor kit which consists of just the bonnet and poppet O-ring seals, please see part number P106159. This major rebuild kit is for manually operated Super-Seal valves with these inlet/outlet ports:2.0 in. welded tubeConflat CF 3.38 in.
