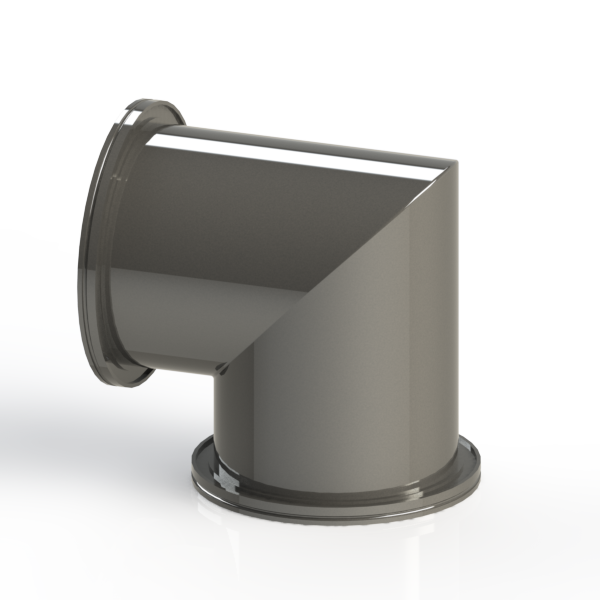

Mitered Elbow 90 Degrees, NW-160 Vacuum Fitting, Short Tube 6.25", ISO-LF Flange Size 6", Stainless Steel

Mitered Elbow 90 Degrees, NW-160 Vacuum Fitting, Long Tube 6.25", ISO-LF Flange Size 6", Stainless Steel

ISO (International Standards Organization) flanged vacuum fittings are commonly used to build process vacuum plumbing and systems for industrial applications. The fittings are quick to assemble using double claw clamps and a centering ring (please see images - click to enlarge). The centering ring contains a Viton® rubber/elastomeric o-ring. ISO standard sizes for large flanges are NW-63, NW-80, NW-100, NW-160, NW-200, NW-250, NW-320, NW-400, NW-500, NW-630. These vacuum fittings are made of corrosive resistant 304 stainless steel.

Specifications & Dimensions:
Flange Size: ISO LF NW-160
A: 6.25" (159 mm)

Press ESC to Close

RoHS Compliance Download

P103992.sldprt

P103992.step

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

eDrawings Viewer For Windows
eDrawings Viewer For MAC.
