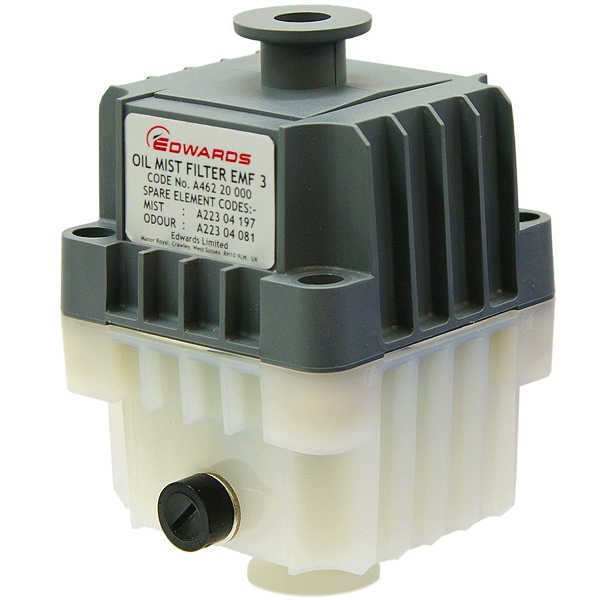

NEW Edwards EMF3 (EMF-3) Oil Mist Exhaust Filter, KF10 Ports, Designed for Edwards for Speedivac 2, E2M0.7, E2M1, E2M1.5, E2M2 Vacuum Pumps (Edwards Part Number A462-20-000)
This EMF3 (EMF-3) Outlet Oil Mist Filter is suitable for all Edwards Rotary Vane pumps up to E2M2. This Edwards EMF3 (EMF-3) exhaust filter assembly is supplied with NW10 clamp, centering ring, O-Ring, NW10 to 3/4 BSP adapter, 1 oil element filter and 1 odor element. The benefits of the oil mist filter includes: protection from oil mist emissions as required by COSHH and health and safety regulations. If the oil element becomes blocked, an integral pressure relief valve opens. This filter is very efficient at 99.999% DOP test and is also azide proof. The white bottom half of the body is semi-transparent, allowing the oil level to be monitored. Replacement oil elements and odor elements are available on this website. For complete specifications download instruction manual (see below avaliable below).
Edwards EMF3 (EMF-3) Oil Mist Filter Specifications:
Fits Pump Models:
Speedivac 2, E2M0.7, E2M1, E2M1.5, E2M2
Inlet & Exhaust Flanges:
ISO KF10 (NW10)
Dimensions:
Height 5.5 x Width 3.25 inches
Weight:
1 lb
Material:
Durable Plastic Body
Oil Filter Element:
Epoxy Impregnated Glass Fiber
Replacement Oil Filter Part Number:
A223-04-197
Edwards EMF3 (EMF-3) Part Number:
A462-20-000
