Condition:
  New
Part Number:
  P1012739
Warranty:
  Against Product Defect
Out of Stock  

RoHS Compliance Sticker


$23.48


Print Version

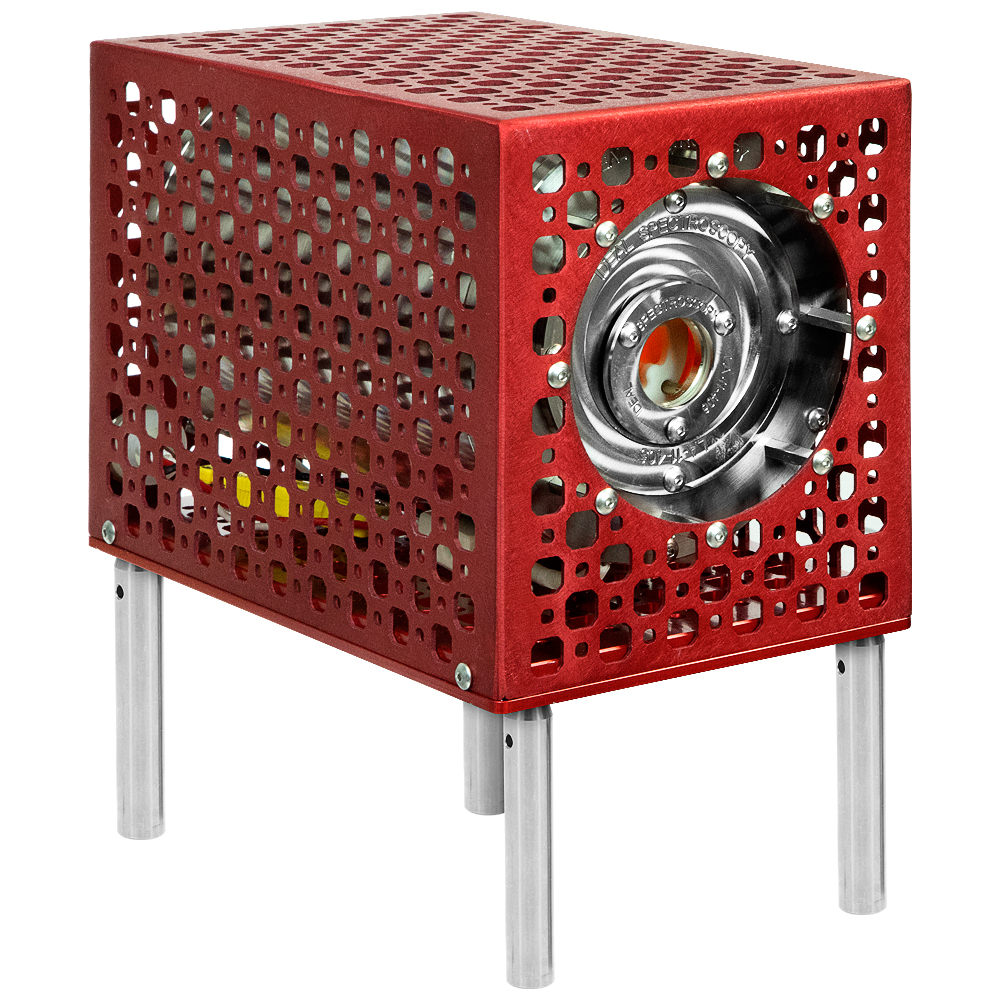

Basic Foot Kit for Ideal Spectroscopy Habanero Reference Cell Furnace, Raises Furnace 3 Inches


Basic Foot Kit for Ideal Spectroscopy Habanero Reference Cell Furnace.
(Furnace Not Included)

This kit contains four (4) 3" optical posts (S101031) and all necessary screws to connect them to the furnace. The furnace and controller are not included and are sold separately. This kit provides your furnace with stable mounting that meets the minimum recommended 3" clearance above the working surface.

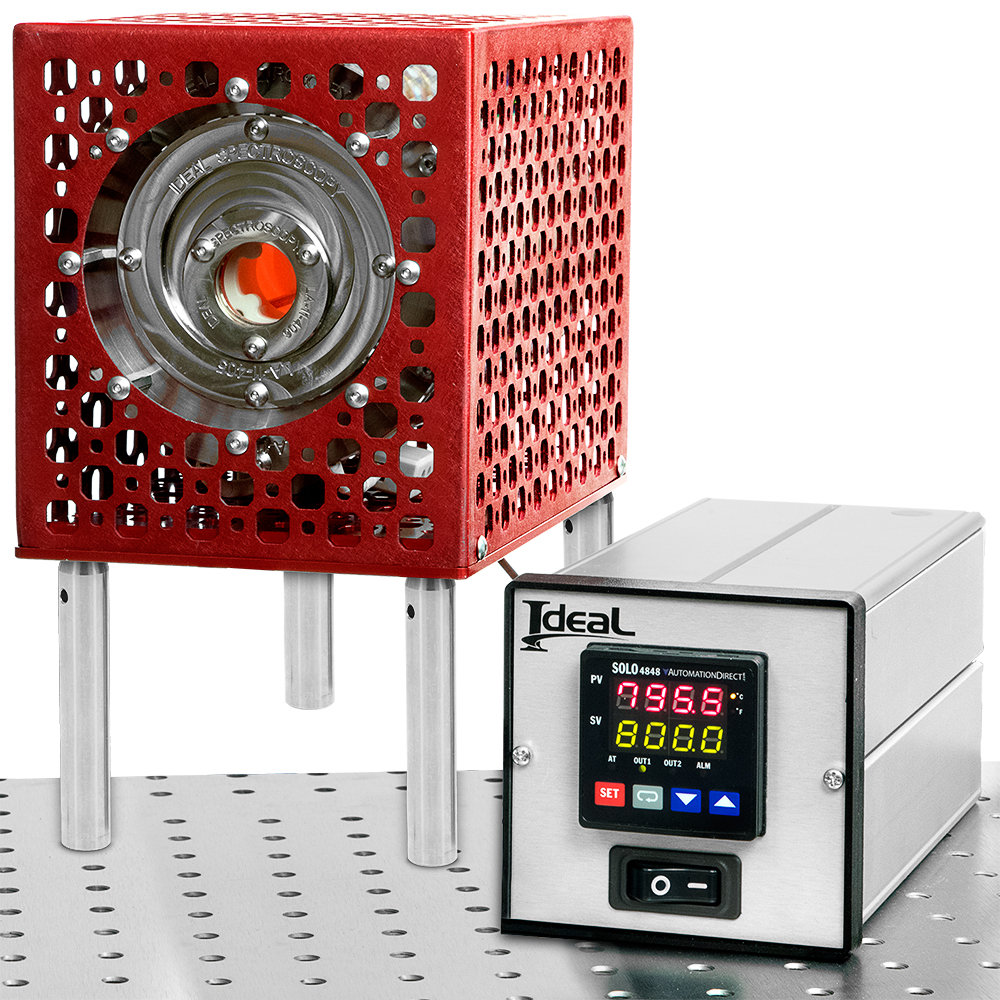

Ideal Spectroscopy's Habanero is a benchtop sized furnace compatible with all of Ideal Spectroscopy's sealed wavelength reference cells. The Habanero has a maximum operating temperature of 900°C, which is especially useful for high temperature references such as tellurium and the excited states of iodine. The Habanero can also operate at lower temperatures (<200°C) for use with any of Ideal Spectroscopy's sealed wavelength reference cells, although care must be taken to not exceed the damage threshold temperature of alkali and organic reference cells.

The furnace must have at least 3" of open space on each side and 12" of open space above it for adequate ventillation. We recommend that the furnace be elevated by at least 3" above the working surface it is placed on, which is the height achieved using the mounting posts in this kit. The furnace should never be placed in a space that is enclosed on more than 4 sides when in operation.



Press ESC to Close


PDF Logo RoHS Compliance Download

PDF Logo IVP Habanero Spectroscopy Reference Cell Furnace User Manual.pdf
