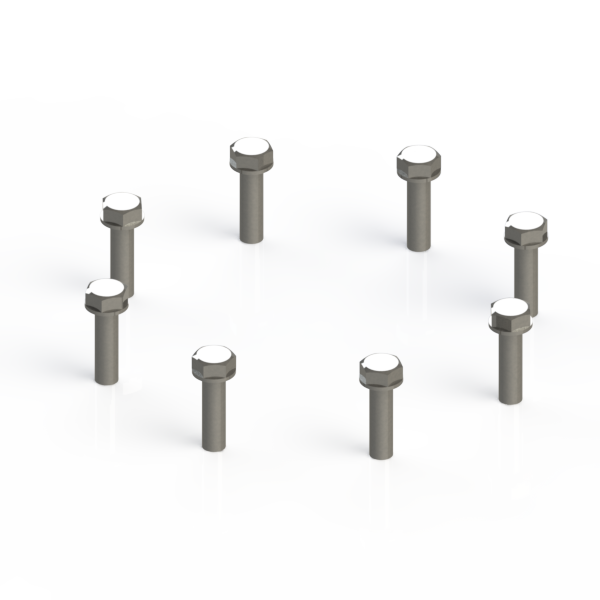

ISO-F DN 80, 100 Bolt Set, for Tapped Threaded Holes, Metric M8 x 30 mm Long Bolts, 1.25 mm Pitch, Stainless Steel, Quantity of 8

Bolts, for Tapped Threaded Holes NW-80, NW-100, Vacuum Flanges, Stainless Steel, Quantity of 8.

These bolts are for tapped threaded hole flanges and follow ISO-LF standards for flange sizes of NW-80, NW-100. ISO flanged vacuum fittings are commonly used to build process vacuum plumbing and systems for industrial applications. The fittings are quick to assemble using double claw clamps and a centering ring (please see top right figure - click to enlarge). The Viton® centering ring contains a rubber/elastomeric o-ring. The ISO standard sizes for large flanges are NW-63, NW-80, NW-100, NW-160, NW-200, NW-250, NW-320, NW-400, NW-500, NW-630. These vacuum fittings are made of corrosive resistant stainless steel.

Bolts, for Tapped Threaded Holes NW-80, NW-100, Vacuum Flanges, Stainless Steel, Quantity of 8
ISO-LF Flange Size: NW-80, NW-100
Quantity: 8 bolts include washers
Common Dimensions: Bolt Size M8X30 Pitch 1.25mm
