IVP Ideal Seal, Conflat CF 1.33 in. Butterfly Valve, 1.00 in. Thick, Manual Quarter-Turn, SS
In Stock: 19


These manual butterfly valves provide a low-cost alternative to bellows sealed gate valves. These valves manually turn from the fully-closed position to fully open with only a quarter turn of the knob. A patented design allows the sealing disk to center itself when closing, with even pressure around the copper knife edge O-ring. This design also helps to lower the amount of scuffing or rolling of the O-ring. Quarter-turn actuation, small footprint and the shortest possible gas path make manual butterfly valves the preferred choice for many applications. These Ideal Vacuum Products vacuum butterfly valves are designed to have a low leak rate, typically on the order of 1x10

Condition: New



Product Number: P108175



Price: $370.76


*Regular Price: $529.65



IVP Ideal Seal, Conflat CF 2.125 in. Butterfly Valve, 1.00 in. Thick, Manual Quarter-Turn, SS
In Stock: 13


These manual butterfly valves provide a low-cost alternative to bellows sealed gate valves. These valves manually turn from the fully-closed position to fully open with only a quarter turn of the knob. A patented design allows the sealing disk to center itself when closing, with even pressure around the copper knife edge O-ring. This design also helps to lower the amount of scuffing or rolling of the O-ring. Quarter-turn actuation, small footprint and the shortest possible gas path make manual butterfly valves the preferred choice for many applications. These Ideal Vacuum Products vacuum butterfly valves are designed to have a low leak rate, typically on the order of 1x10

Condition: New



Product Number: P108168



Price: $393.23


*Regular Price: $561.75

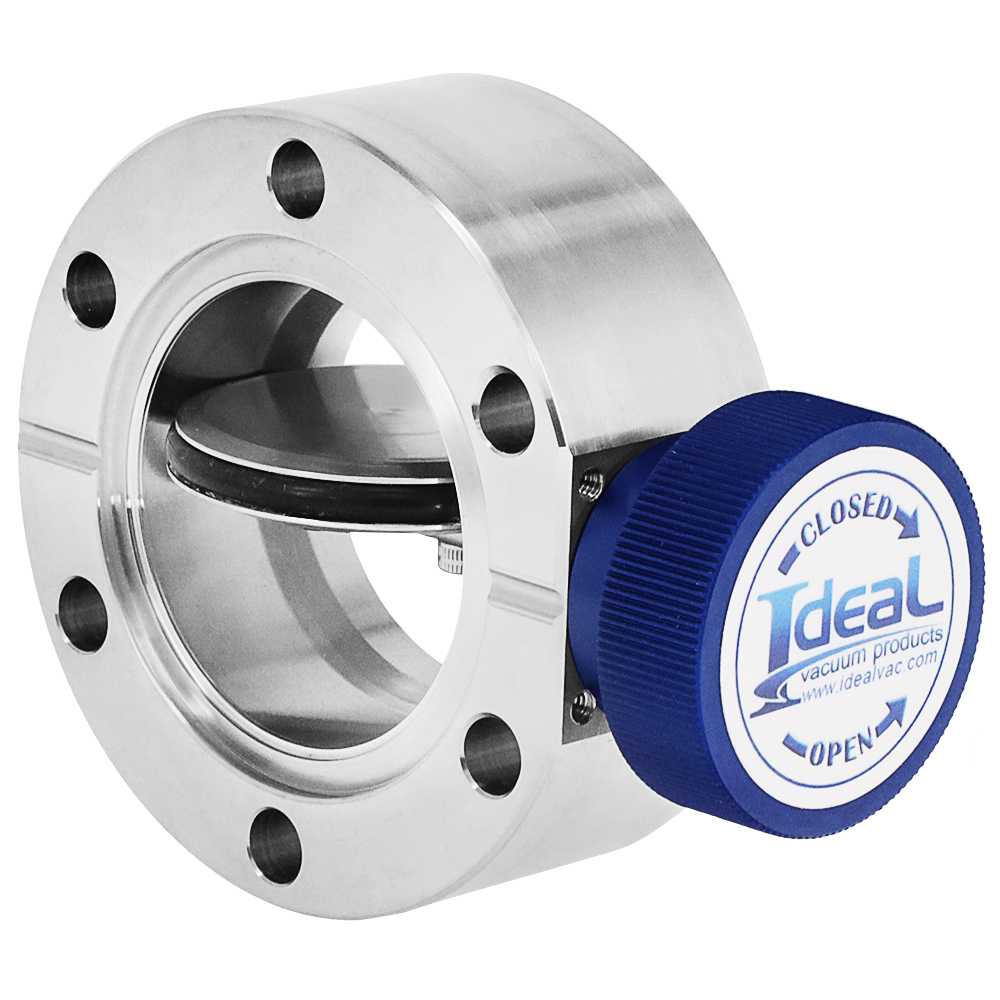

IVP Ideal Seal, Conflat CF 2.75 in. Butterfly Valve, 1.00 in. Thick, Manual Quarter-Turn, SS
In Stock: 1


These manual butterfly valves provide a low-cost alternative to bellows sealed gate valves. These valves manually turn from the fully-closed position to fully open with only a quarter turn of the knob. A patented design allows the sealing disk to center itself when closing, with even pressure around the copper knife edge O-ring. This design also helps to lower the amount of scuffing or rolling of the O-ring. Quarter-turn actuation, small footprint and the shortest possible gas path make manual butterfly valves the preferred choice for many applications. These Ideal Vacuum Products vacuum butterfly valves are designed to have a low leak rate, typically on the order of 1x10

Condition: New



Product Number: P108169



Price: $411.95


*Regular Price: $588.50

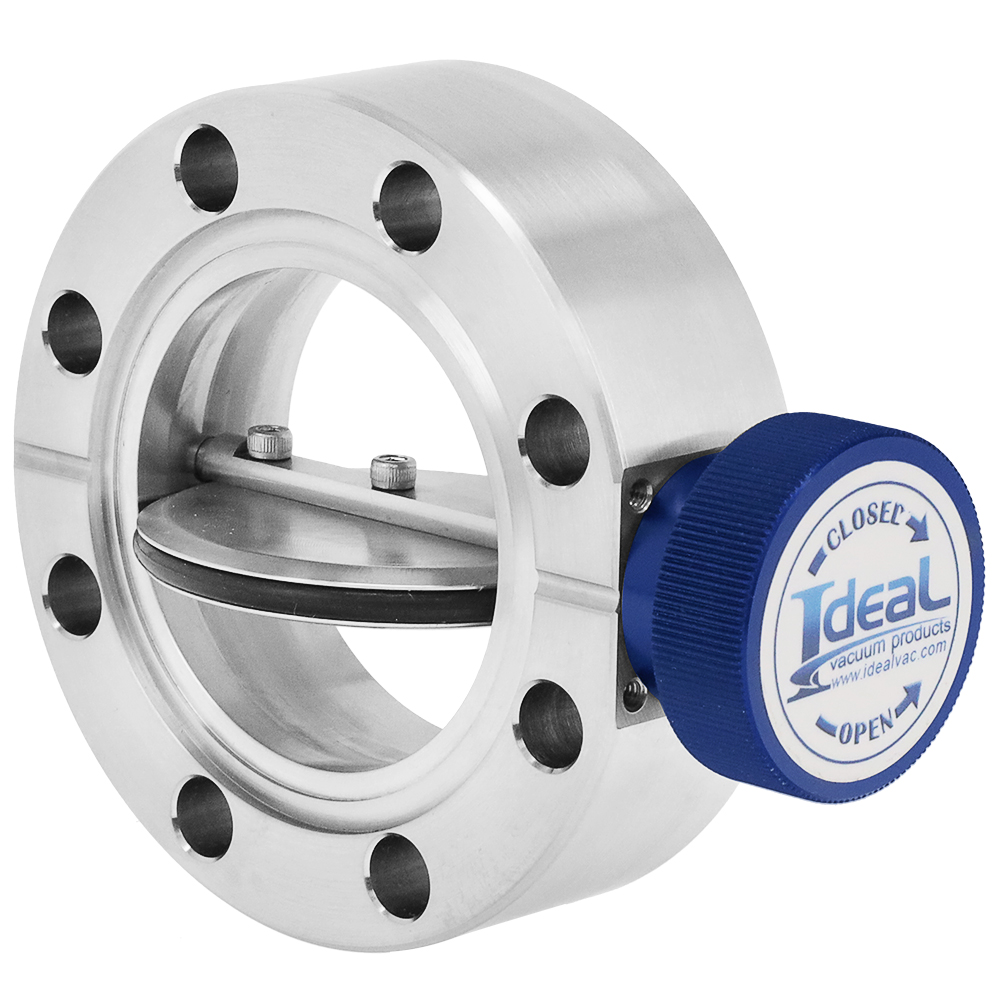

IVP Ideal Seal, Conflat CF 3.375 in. Butterfly Valve, 1.00 in. Thick, Manual Quarter-Turn, SS
In Stock: 16


These manual butterfly valves provide a low-cost alternative to bellows sealed gate valves. These valves manually turn from the fully-closed position to fully open with only a quarter turn of the knob. A patented design allows the sealing disk to center itself when closing, with even pressure around the copper knife edge O-ring. This design also helps to lower the amount of scuffing or rolling of the O-ring. Quarter-turn actuation, small footprint and the shortest possible gas path make manual butterfly valves the preferred choice for many applications. These Ideal Vacuum Products vacuum butterfly valves are designed to have a low leak rate, typically on the order of 1x10

Condition: New



Product Number: P108170



Price: $543.03


*Regular Price: $775.75



Viton Rebuild Kit for CF 1.33 and KF 16 Manual Butterfly Valves
In Stock: 32


This maintenance kit contains easy-to-replace viton seals for your CF 1.33/KF16 Ideal Vacuum Products Manual Butterfly Valve. Viton seals are generally rugged, however, heavy mechanical and chemical exposure may cause wear over time. Our easy-to-service valve design makes replacement of these seals fast and simple. Included within are Viton seals, set screw, and vented valve fastening screws. Compared to most other elastomers, Viton is better able to withstand high temperature, while simultaneously retaining its good mechanical properties. Oil and chemical resistance are also essentially unaffected by elevated temperatures. Compounds of Viton remain substantially elastic indefinitely when exposed to laboratory air oven aging up to 204°C (399°F) or to intermittent exposures up to 316°C (601°F). Viton low temperature performance is dependent on type, with serviceability as low as –31°C (–24 °F) in dynamic seals and –45°C (–49°F) in static seals using Viton GLT-S. Viton is characterized by its:

Condition: New



Product Number: P108968



Price: $52.33



Viton Rebuild Kit for CF 2.125 and KF 25 Manual Butterfly Valves
In Stock: 18


This maintenance kit contains easy-to-replace viton seals for your CF 2.125/KF25 Ideal Vacuum Products Manual Butterfly Valve. Viton seals are generally rugged, however, heavy mechanical and chemical exposure may cause wear over time. Our easy-to-service valve design makes replacement of these seals fast and simple. Included within are Viton seals, set screw, and vented valve fastening screws. Compared to most other elastomers, Viton is better able to withstand high temperature, while simultaneously retaining its good mechanical properties. Oil and chemical resistance are also essentially unaffected by elevated temperatures. Compounds of Viton remain substantially elastic indefinitely when exposed to laboratory air oven aging up to 204°C (399°F) or to intermittent exposures up to 316°C (601°F). Viton low temperature performance is dependent on type, with serviceability as low as -31°C (-24 °F) in dynamic seals and -45°C (-49°F) in static seals using Viton GLT-S. Viton is characterized by its:

Condition: New



Product Number: P108970



Price: $45.36



Viton Rebuild Kit for CF 2.75 and KF 40 Manual Butterfly Valves
Out of Stock
Arrival: 10 on 2024-04-27


This maintenance kit contains easy-to-replace viton seals for your CF 2.75/KF40 Ideal Vacuum Products Manual Butterfly Valve. Viton seals are generally rugged, however, heavy mechanical and chemical exposure may cause wear over time. Our easy-to-service valve design makes replacement of these seals fast and simple. Included within are Viton seals, set screw, and vented valve fastening screws. Compared to most other elastomers, Viton is better able to withstand high temperature, while simultaneously retaining its good mechanical properties. Oil and chemical resistance are also essentially unaffected by elevated temperatures. Compounds of Viton remain substantially elastic indefinitely when exposed to laboratory air oven aging up to 204°C (399°F) or to intermittent exposures up to 316°C (601°F). Viton low temperature performance is dependent on type, with serviceability as low as -31°C (-24 °F) in dynamic seals and -45°C (-49°F) in static seals using Viton GLT-S. Viton is characterized by its:

Condition: New



Product Number: P108972



Price: $45.36



Viton Rebuild Kit for CF 3.375 and KF 50 Manual Butterfly Valves
Out of Stock
Arrival: 90 on 2024-04-27


This maintenance kit contains easy-to-replace viton seals for your CF 3.375/KF50 Ideal Vacuum Products Manual Butterfly Valve. Viton seals are generally rugged, however, heavy mechanical and chemical exposure may cause wear over time. Our easy-to-service valve design makes replacement of these seals fast and simple. Included within are Viton seals, set screw, and vented valve fastening screws. Compared to most other elastomers, Viton is better able to withstand high temperature, while simultaneously retaining its good mechanical properties. Oil and chemical resistance are also essentially unaffected by elevated temperatures. Compounds of Viton remain substantially elastic indefinitely when exposed to laboratory air oven aging up to 204°C (399°F) or to intermittent exposures up to 316°C (601°F). Viton low temperature performance is dependent on type, with serviceability as low as -31°C (-24 °F) in dynamic seals and -45°C (-49°F) in static seals using Viton GLT-S. Viton is characterized by its:

Condition: New



Product Number: P108974



Price: $45.36
