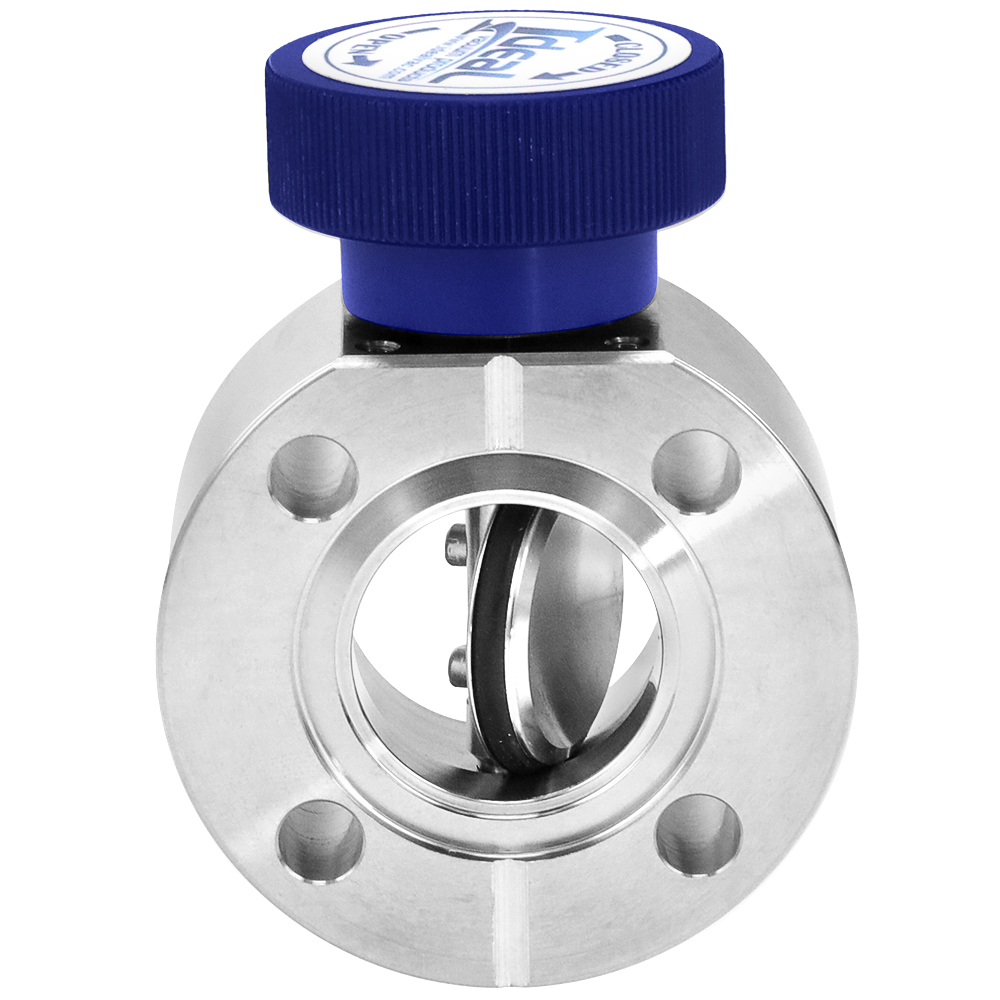

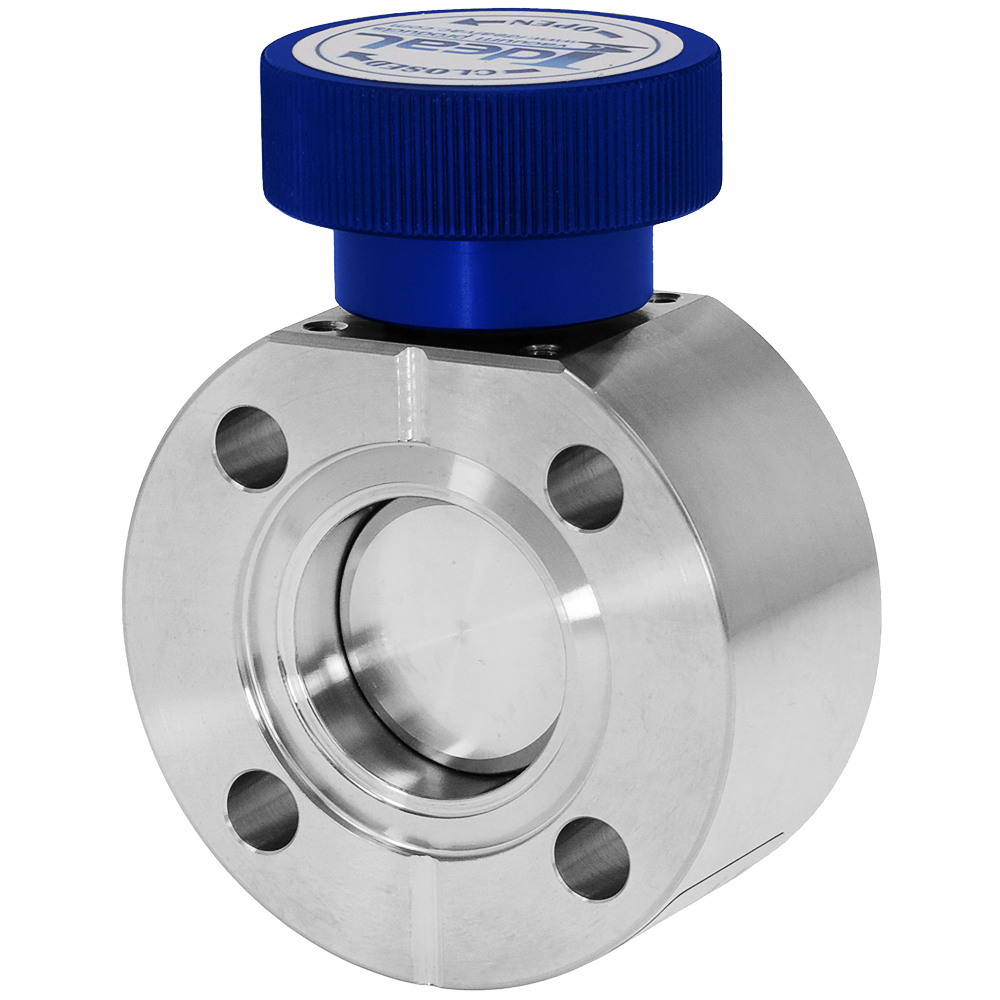

IVP Ideal Seal, Conflat CF 2.125 in. Butterfly Valve, 1.00 in. Thick, Manual Quarter-Turn, SS


Ideal Seal, Conflat CF 2.125 in. Butterfly Valve, 1.00 Inch Thick, Manual Quarter-Turn, CF Interface, Stainless Steel.

These manual butterfly valves provide a low-cost alternative to bellows sealed gate valves. These valves manually turn from the fully-closed position to fully open with only a quarter turn of the knob. A patented design allows the sealing disk to center itself when closing, with even pressure around the copper knife edge O-ring. This design also helps to lower the amount of scuffing or rolling of the O-ring. Quarter-turn actuation, small footprint and the shortest possible gas path make manual butterfly valves the preferred choice for many applications.

These Ideal Vacuum Products vacuum butterfly valves are designed to have a low leak rate, typically on the order of 1x10-9 std. cc/sec. Helium. These butterfly valves have a Conflat CF 2.125 in. vacuum flange for connection to the vacuum system. They are manually operated, made of Stainless Steel and are manufactured in the USA by Ideal Vacuum Products.

Requires CF copper gasket, bolts and nut plates for installation, not included.



Press ESC to Close


PDF Logo IVP Service Manual - Rebuilding Manual Butterfly Valves.pdf

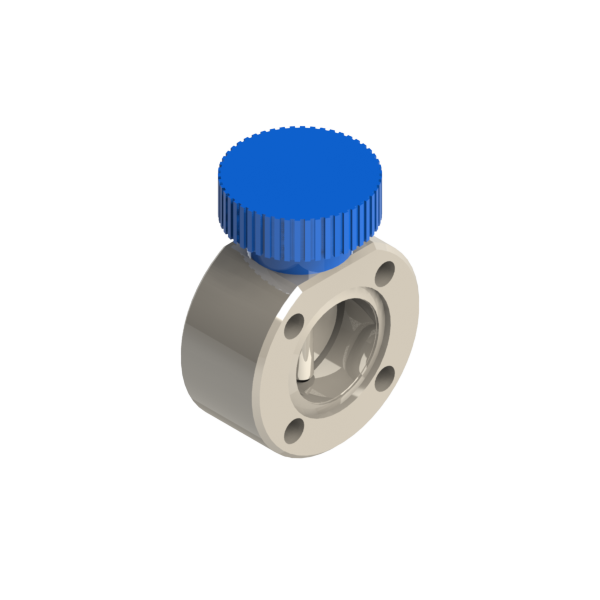

CAD Picture

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

E-drawing LogoeDrawings Viewer For Windows
E-drawing LogoeDrawings Viewer For MAC.
